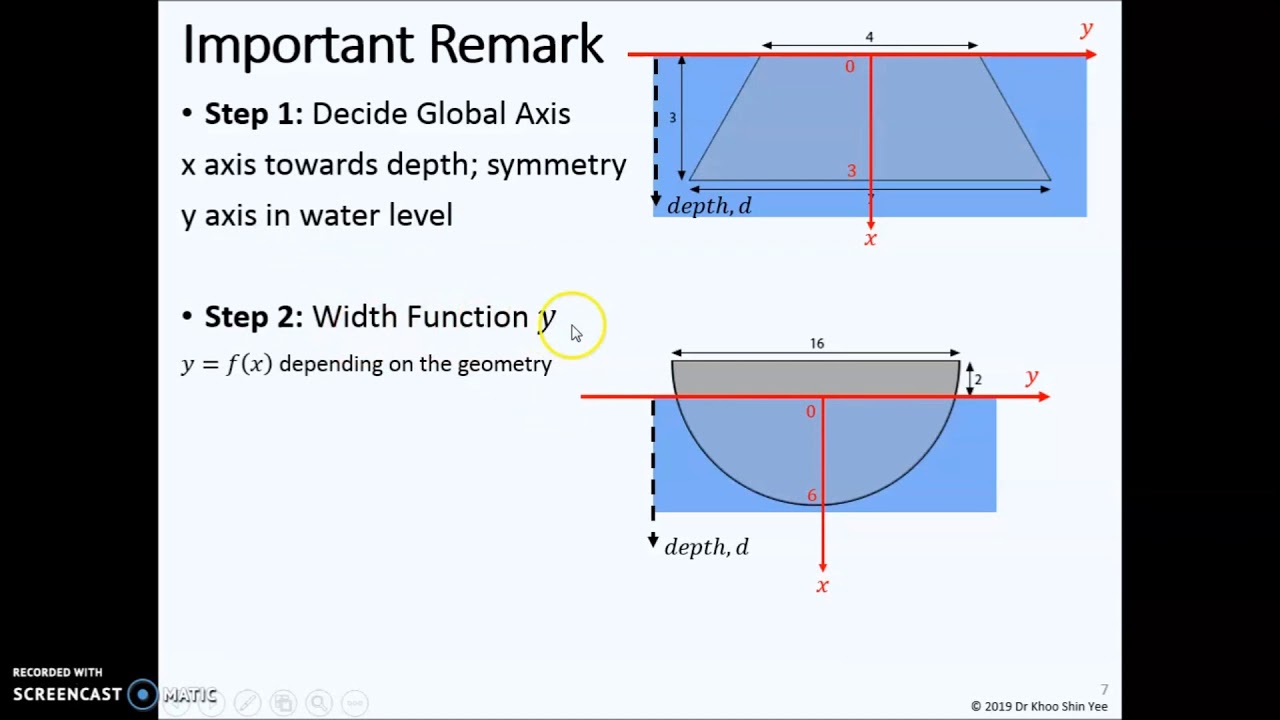

Integral Application In Hydrostatic Force Identification V2 With Global The document contains 8 problems involving calculating hydrostatic forces on submerged objects like gates and panels. the problems require determining the total force, center of pressure location, and reactions using principles of fluid mechanics and calculus. About press copyright contact us creators advertise developers terms privacy policy & safety how works test new features nfl sunday ticket © 2023 google llc.

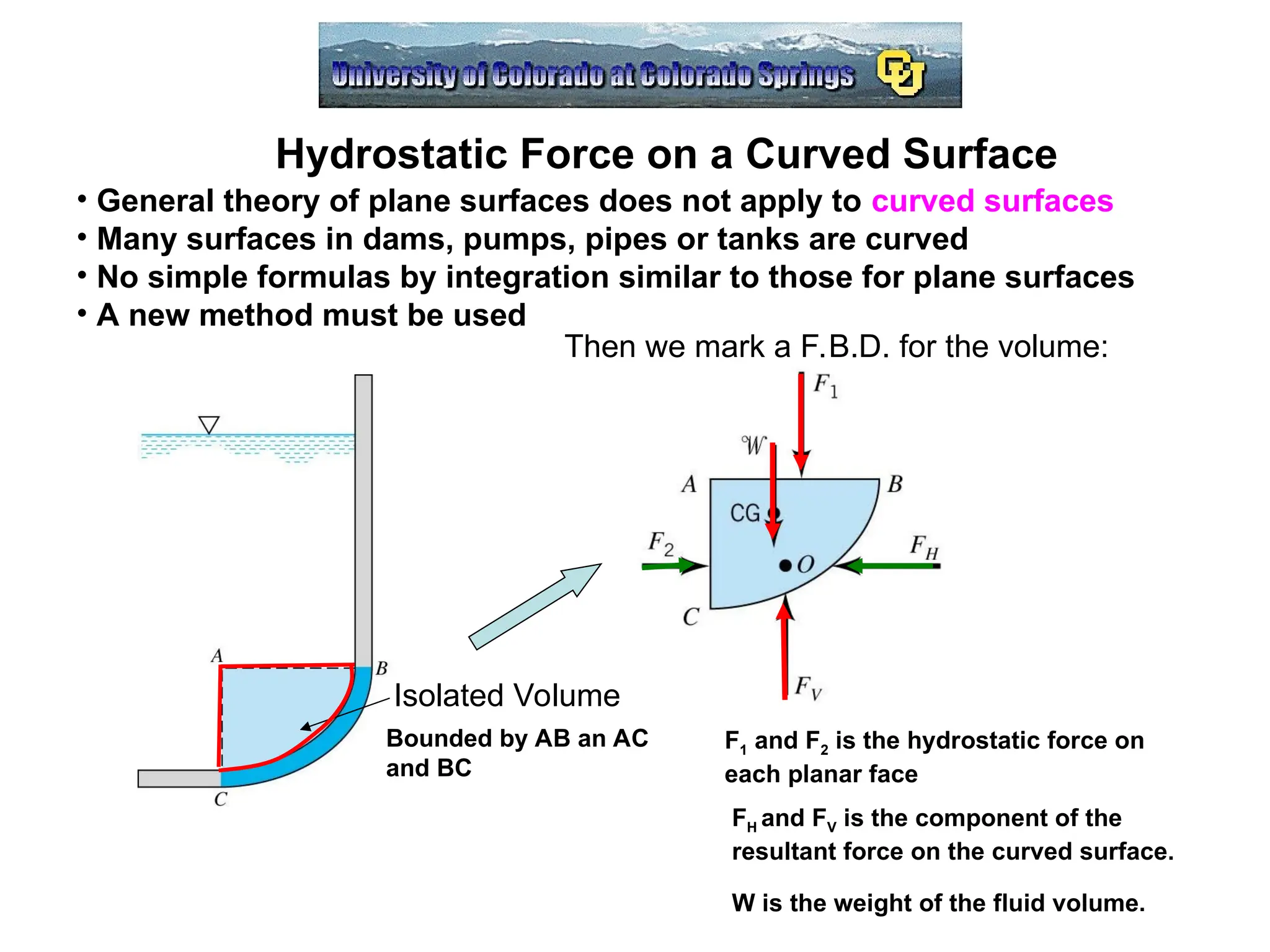

Hydrostatic Force Application In Systemh Ppt We can use definite integral to compute force exerted by a liquid on a surface, such as the force of water on a dam. dams are built thicker at the bottom than at the top because the pressure against them increases with depth. The document contains 14 problems involving calculation of hydrostatic forces on submerged objects and gates of various shapes. forces are calculated using principles of pressure variation with depth, center of gravity, buoyancy and taking moments. A sequence of equations may be used to calculate the centre of pressure, hydrostatic force, and mass using the known masses applied to the end of the system and the height of the water in the chamber. To compute the hydrostatic force, it is possible to integrate the curved surface area and also identify the surface’s centroid and subsequently evaluate the pressure and force.

Calculation Of The Hydrostatic Force By Integrating The Sectional Areas A sequence of equations may be used to calculate the centre of pressure, hydrostatic force, and mass using the known masses applied to the end of the system and the height of the water in the chamber. To compute the hydrostatic force, it is possible to integrate the curved surface area and also identify the surface’s centroid and subsequently evaluate the pressure and force. In this section, the discussion is focused on how to determine hydrostatic forces exerted on a plane surface submerged in a static fluid. determining this hydrostatic force is particularly crucial in the design of engineering structures, such as dams, storage tanks and hydraulic systems. Hydrostatic forces refer to the forces acting on an object submerged in a fluid, which depend on the object's position and are influenced by factors such as fluid density, gravitational acceleration, depth, and atmospheric pressure. In general, the total hydrostatic pressure on any plane surface is equal to the product of the area of the surface and the unit pressure at its center of gravity. In this experiment, the hydrostatic force and center of pressure acting on a vertical surface will be determined by increasing the water depth in the apparatus water tank and by reaching an equilibrium condition between the moments acting on the balance arm of the test apparatus.

Hydrostatic Force 17 2 Sideway Output To In this section, the discussion is focused on how to determine hydrostatic forces exerted on a plane surface submerged in a static fluid. determining this hydrostatic force is particularly crucial in the design of engineering structures, such as dams, storage tanks and hydraulic systems. Hydrostatic forces refer to the forces acting on an object submerged in a fluid, which depend on the object's position and are influenced by factors such as fluid density, gravitational acceleration, depth, and atmospheric pressure. In general, the total hydrostatic pressure on any plane surface is equal to the product of the area of the surface and the unit pressure at its center of gravity. In this experiment, the hydrostatic force and center of pressure acting on a vertical surface will be determined by increasing the water depth in the apparatus water tank and by reaching an equilibrium condition between the moments acting on the balance arm of the test apparatus.

Lecture 4 Fluid 1 Hydrostatic Forces On Submerged Plane Surfaces Pdf In general, the total hydrostatic pressure on any plane surface is equal to the product of the area of the surface and the unit pressure at its center of gravity. In this experiment, the hydrostatic force and center of pressure acting on a vertical surface will be determined by increasing the water depth in the apparatus water tank and by reaching an equilibrium condition between the moments acting on the balance arm of the test apparatus.
