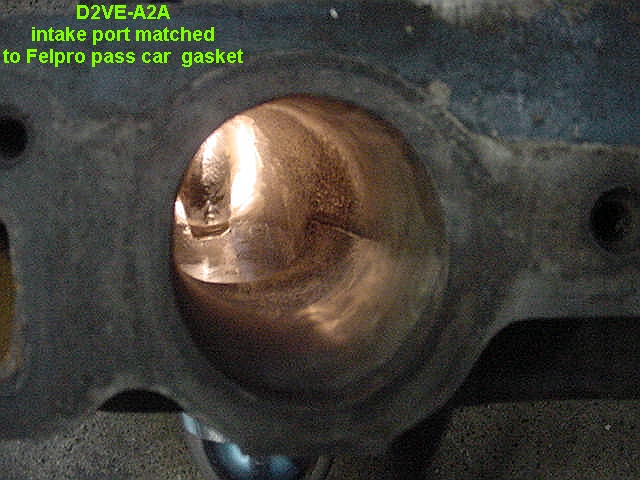

Intake Porting Guide 3 There will be three gasket port size choices. the passenger car port, the cj style port and the victor as cast port match when using a cj runner manifold you can port match the intake port entry to the cj style gasket. blend the cj port dimensions about 1 2" to 3 4" into the existing port passage. use care so as to not break through the. Learn how to port plastic intake manifolds with our diy guide. we'll show you the tools, techniques, and tips to improve engine performance and save costs.
Intake Porting Guide 3 Explore engine porting principles, including intake exhaust port design, valve seat configuration, and wave dynamics for optimal performance. Intake ports are the final part of an engine’s air induction system. they connect the intake manifold with the combustion chamber and are opened and closed with the intake valves. "porting" or "port and polishing" refers to the reshaping and smoothing of the intake and exhaust passageways in engine cylinder heads. polishing cylinder heads, or removing flaws that restrict airflow, is not difficult or costly. Hello folks. this thread is dedicated to intake manifold porting and matching. tips and tricks are most welcome. photos and details are encouraged….
Intake Porting Guide 3 "porting" or "port and polishing" refers to the reshaping and smoothing of the intake and exhaust passageways in engine cylinder heads. polishing cylinder heads, or removing flaws that restrict airflow, is not difficult or costly. Hello folks. this thread is dedicated to intake manifold porting and matching. tips and tricks are most welcome. photos and details are encouraged…. Learn when porting an intake manifold adds real power, how to evaluate quality work, and avoid over modding. key factors: airflow match, finish, structural integrity. The shape of the intake ports on generation 3 and generation 4 ls based engines vary significantly. generation 3 heads feature a "cathedral" port, while most generation 4 heads utilize a "rectangle" port. You can port these two runners without welding them, but i prefer to have them puddle welded with a tig welder to make the task simpler and the port shape consistent without worrying about cutting through the runner. below is a picture of how i use the calipers for measurement. Whether you have a stock, street, or strip ls application, the intake manifold is one of the three major players in terms of power production. the aftermarket has produced intake combinations for performance ls3 and ls7 applications.
Intake Porting Guide 3 Learn when porting an intake manifold adds real power, how to evaluate quality work, and avoid over modding. key factors: airflow match, finish, structural integrity. The shape of the intake ports on generation 3 and generation 4 ls based engines vary significantly. generation 3 heads feature a "cathedral" port, while most generation 4 heads utilize a "rectangle" port. You can port these two runners without welding them, but i prefer to have them puddle welded with a tig welder to make the task simpler and the port shape consistent without worrying about cutting through the runner. below is a picture of how i use the calipers for measurement. Whether you have a stock, street, or strip ls application, the intake manifold is one of the three major players in terms of power production. the aftermarket has produced intake combinations for performance ls3 and ls7 applications.
Intake Porting Guide 2 You can port these two runners without welding them, but i prefer to have them puddle welded with a tig welder to make the task simpler and the port shape consistent without worrying about cutting through the runner. below is a picture of how i use the calipers for measurement. Whether you have a stock, street, or strip ls application, the intake manifold is one of the three major players in terms of power production. the aftermarket has produced intake combinations for performance ls3 and ls7 applications.
