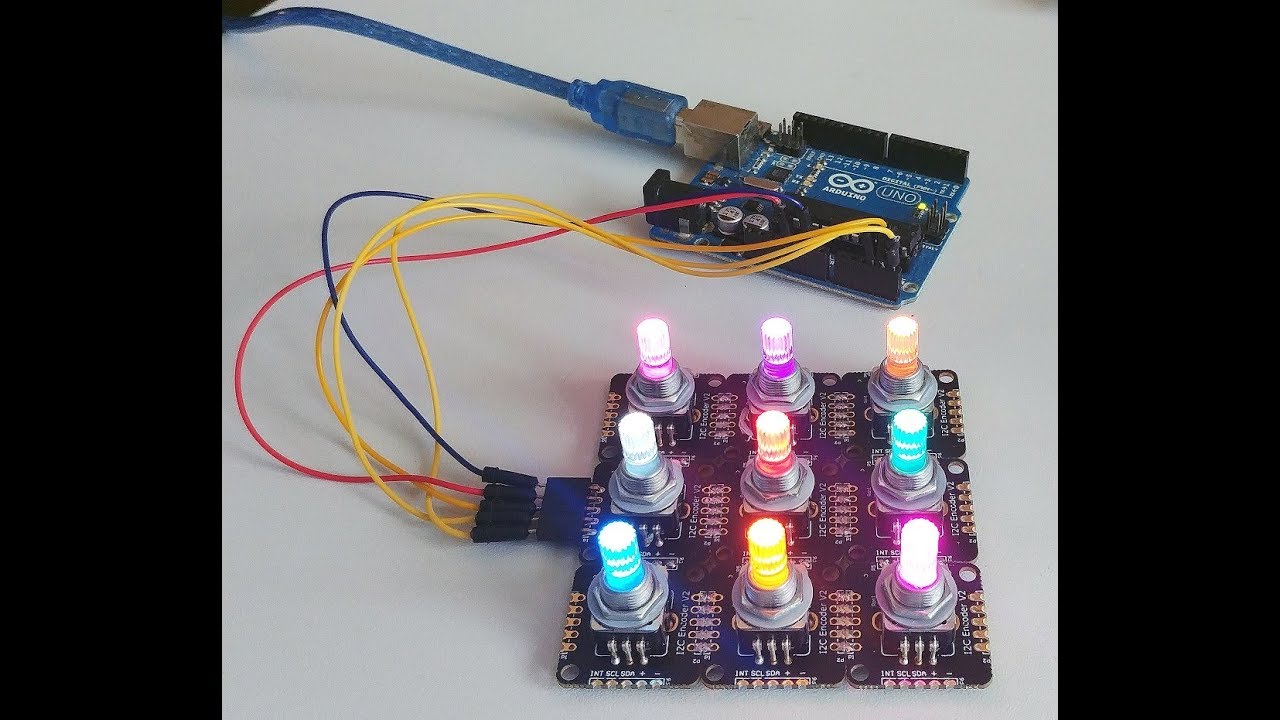

The 2018 Hackaday Prize Hackaday Io Upgraded version of the small board for connect multiple rotary encoders on the i2c bus. 2018 hackaday prize achievement: great things are made when people work together. i include in this list the most interesting projects of iot modules in terms of design, idea, marketing or technology. This project is one of the 20 projects that won the open hardware design challenge hackaday prize. the i2c encoder v2 supports both standard rotary encoder and the illuminated rgb.
Entry To The Hackaday Prize 2021 Details Hackaday Io Upgraded version of the small board for connect multiple rotary encoders on the i2c bus. The final version of i2c encoder v2 is ready, we changed the color of the solder mask from blue to matte black. also the final version of firmware is completed, we will post soon on github. i2c encoder v2 will be available in our tindie store very soon, stay tuned!. The i2c encoder v2 has i2c pull up resistors, by default they are not soldered. it's possible to solder two resistors r1 and r2. this must be done in case that the master doesn't have these resistors and must be enabled only one i2c encoder v2 in a chain. a typical value of this resistors are 4.7k. interrupt configuration:. Upgraded version of the small board for connect multiple rotary encoders on the i2c bus.
Hackaday Prize Worldwide New Delhi Hackaday Io The i2c encoder v2 has i2c pull up resistors, by default they are not soldered. it's possible to solder two resistors r1 and r2. this must be done in case that the master doesn't have these resistors and must be enabled only one i2c encoder v2 in a chain. a typical value of this resistors are 4.7k. interrupt configuration:. Upgraded version of the small board for connect multiple rotary encoders on the i2c bus. I2c encoder v2 is a tiny smart board for connecting multiple rotary encoders on the i2c bus. it supports also the illuminated rgb encoder. find this and other hardware projects on hackster.io. The i2c encoder v2 is a small board where you can use a classical mechanical encoder, or an illuminated rgb encoder on i2c bus. the device has also 3 con gurable gpios with the same footprint of rgb led. The i2c encoder v2 is a small board where you can use a classical mechanical encoder, or an illuminated rgb encoder on i2c bus. the device has also 3 configurable gpios with the same footprint of rgb led. For his hackaday prize project, [fattore.saimon] has come up with the solution for using multiple rotary encoders in any project. it’s a board that turns a rotary encoder into an i2c.
Hackaday Prize Entry The Internet Of Meat Hackaday I2c encoder v2 is a tiny smart board for connecting multiple rotary encoders on the i2c bus. it supports also the illuminated rgb encoder. find this and other hardware projects on hackster.io. The i2c encoder v2 is a small board where you can use a classical mechanical encoder, or an illuminated rgb encoder on i2c bus. the device has also 3 con gurable gpios with the same footprint of rgb led. The i2c encoder v2 is a small board where you can use a classical mechanical encoder, or an illuminated rgb encoder on i2c bus. the device has also 3 configurable gpios with the same footprint of rgb led. For his hackaday prize project, [fattore.saimon] has come up with the solution for using multiple rotary encoders in any project. it’s a board that turns a rotary encoder into an i2c.
Hackaday Prize Entry The Internet Of Casts Hackaday The i2c encoder v2 is a small board where you can use a classical mechanical encoder, or an illuminated rgb encoder on i2c bus. the device has also 3 configurable gpios with the same footprint of rgb led. For his hackaday prize project, [fattore.saimon] has come up with the solution for using multiple rotary encoders in any project. it’s a board that turns a rotary encoder into an i2c.
