Ring Pinion Backlash Specs Pinion Gear Specifications Uajet Learn how to set ring and pinion backlash like a pro with this complete guide—covering tools, patterns, adjustment steps, and common setup mistakes. Start with the right hand side to prevent tooth binding with the pinion and drive each shim completely into place. then install the left hand shims and your carrier should be in place. once fully seated, install and tighten down the carrier pads. always install and tighten the right side first.

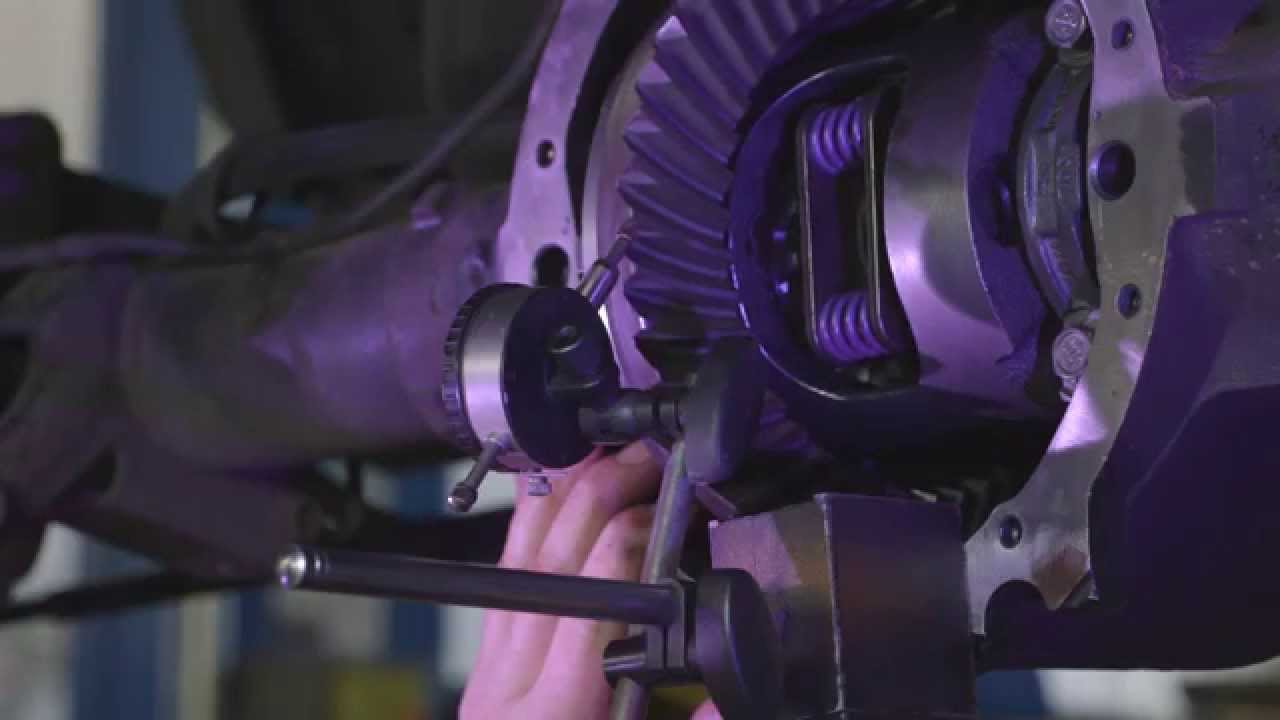

Ring And Pinion Backlash Measurements If the backlash is too tight, move the carrier away from the pinion by adjusting the carrier shim. if the backlash is too wide, adjust the carrier toward the pinion. Secure the dial indicator: attach the magnetic base to the housing, positioning the indicator tip against the ring gear. measure backlash: rotate the pinion gear back and forth by hand and record the dial indicator reading. To install your ring and pinion gears and or differential correctly, it is critical to torque your bolts and set your preload and backlash correctly. the following table contains the proper specifications for all popular axles. The procedure for setting ring & pinion set backlash.
Ring And Pinion Backlash Measurements To install your ring and pinion gears and or differential correctly, it is critical to torque your bolts and set your preload and backlash correctly. the following table contains the proper specifications for all popular axles. The procedure for setting ring & pinion set backlash. Working on my dana 30 re gear. got the diff in and the backlash was huge, like .065. so i moved all the shims from the right side of the diff to the left side and that brought it down to .038. so i need to add shims to the pinion to bring the pinion closer to the ring gear to close the backlash gap. Use adjuster nuts to move the ring gear closet to the pinion to decrease backlash. use adjuster nuts to move the ring gear farther from the pinion gear to increase backlash. Setting backlash on a differential is a critical process that ensures the proper engagement and longevity of the ring and pinion gears, preventing premature wear and excessive noise. backlash refers to the small amount of clearance, or "play," between the meshing teeth of the ring and pinion gears. Be sure to watch our differential side gear backlash video for complete setup information. we teach current vehicle technologies to our automotive students at weber state university and online.
Ring Pinion Backlash Pinion Depth Marks Jeep Wrangler Forum Working on my dana 30 re gear. got the diff in and the backlash was huge, like .065. so i moved all the shims from the right side of the diff to the left side and that brought it down to .038. so i need to add shims to the pinion to bring the pinion closer to the ring gear to close the backlash gap. Use adjuster nuts to move the ring gear closet to the pinion to decrease backlash. use adjuster nuts to move the ring gear farther from the pinion gear to increase backlash. Setting backlash on a differential is a critical process that ensures the proper engagement and longevity of the ring and pinion gears, preventing premature wear and excessive noise. backlash refers to the small amount of clearance, or "play," between the meshing teeth of the ring and pinion gears. Be sure to watch our differential side gear backlash video for complete setup information. we teach current vehicle technologies to our automotive students at weber state university and online.
Ring Pinion Backlash Pinion Depth Marks Jeep Wrangler Forum Setting backlash on a differential is a critical process that ensures the proper engagement and longevity of the ring and pinion gears, preventing premature wear and excessive noise. backlash refers to the small amount of clearance, or "play," between the meshing teeth of the ring and pinion gears. Be sure to watch our differential side gear backlash video for complete setup information. we teach current vehicle technologies to our automotive students at weber state university and online.
