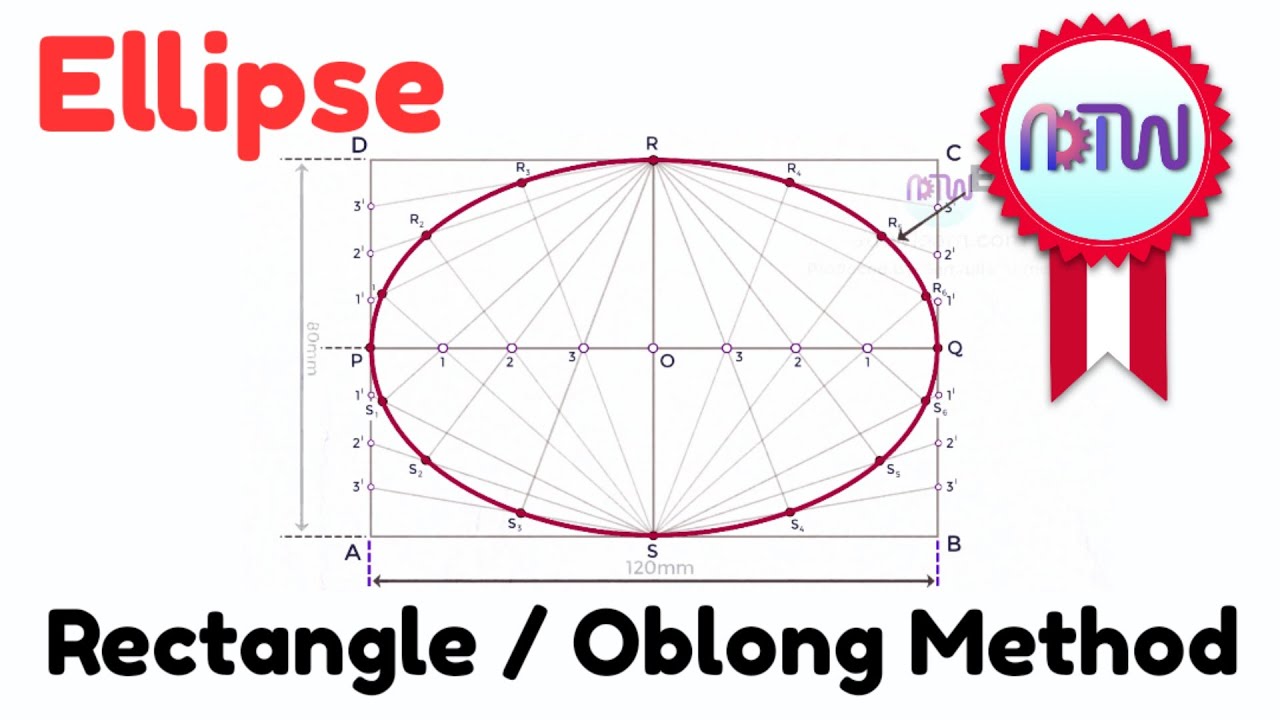

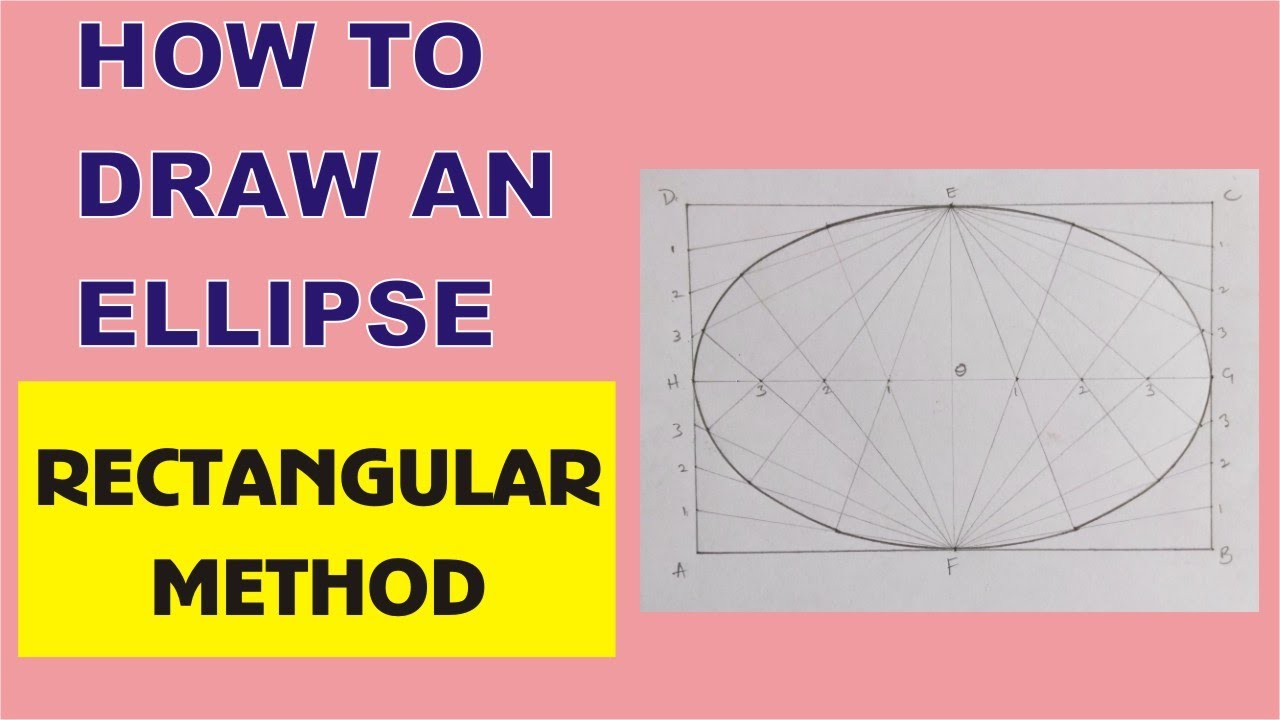

How To Draw Ellipse Using Rectangular Method In this video i am going to explain how to draw an ellipse using the "rectangle method" also known as "oblong method" notes: you can connect the ellipse points "manually by hand" or. Rectangle method for ellipse the rectangle method is a common method to draw an ellipse. in this post, we will learn how to draw an ellipse by using the rectangle method.

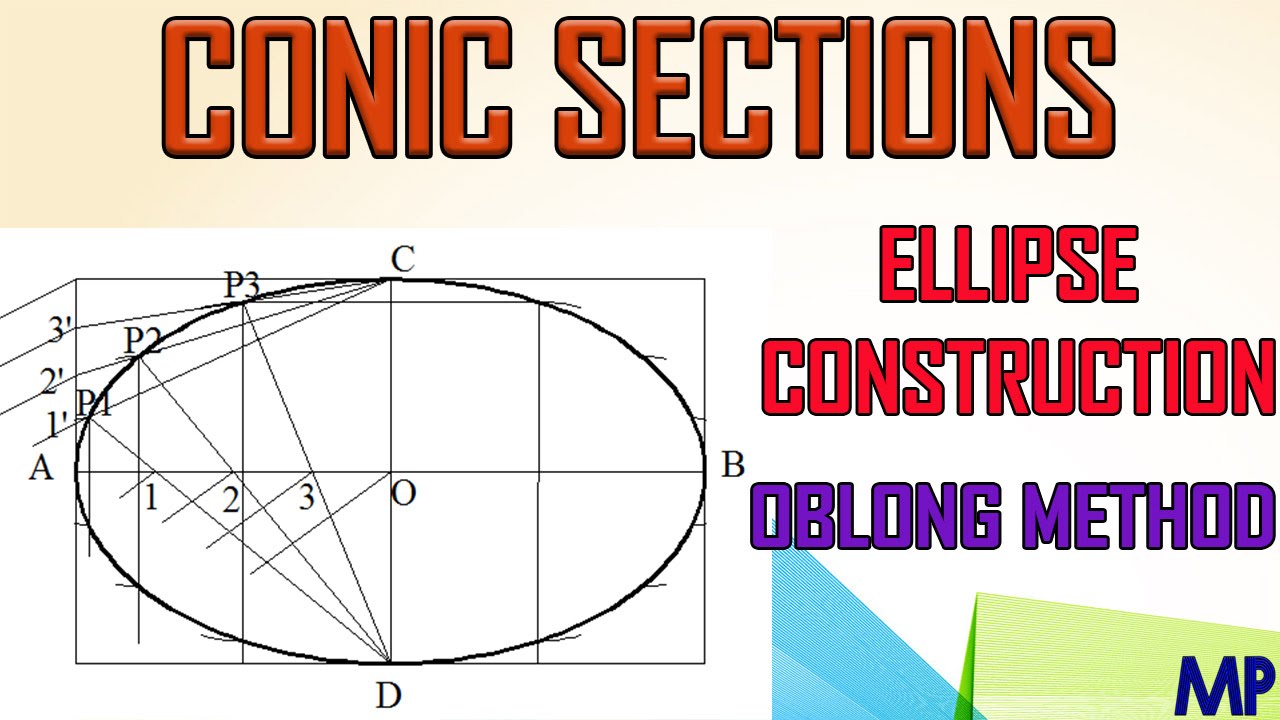

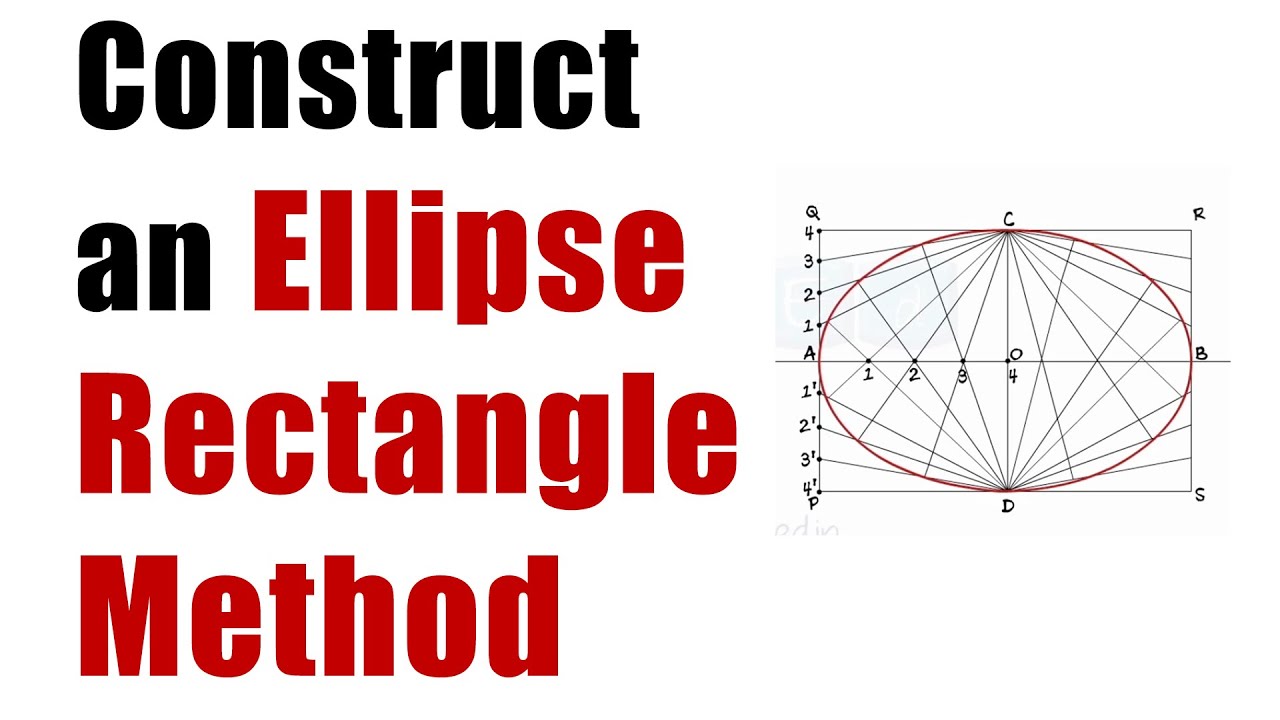

How To Draw Ellipse Using Rectangular Method It provides step by step instructions on how to draw each conic section using various geometric constructions, such as: 1) the concentric circle method to draw an ellipse. 2) the rectangle and oblong methods to inscribe an ellipse within a rectangle or parallelogram. 3) drawing an ellipse using arcs of circles with two fixed foci points. Constructing an ellipse using the rectangular method is a fundamental technique in geometry that ensures accuracy and simplicity. by dividing the rectangle into equal parts, you can easily plot the ellipse and get a smooth curve. here’s how to master this classic construction method. Here are the steps: start by drawing a rectangle. the length of the rectangle will be the major axis (2a) of the ellipse. the width of the rectangle will be the minor axis (2b) of the ellipse. divide the top and bottom sides of the rectangle into equal parts (for example, 4 or 5 equal segments). Construction of ellipse by oblong method (or rectangular method) 1. major axis. 2. minor axis. example 4: construct an ellipse with major axis 100mm and minor axis 80mm by rectangular method. draw a rectangular efgh with length ef equal to major axis (100mm) and width gh equal to minor axis (80mm). 2.

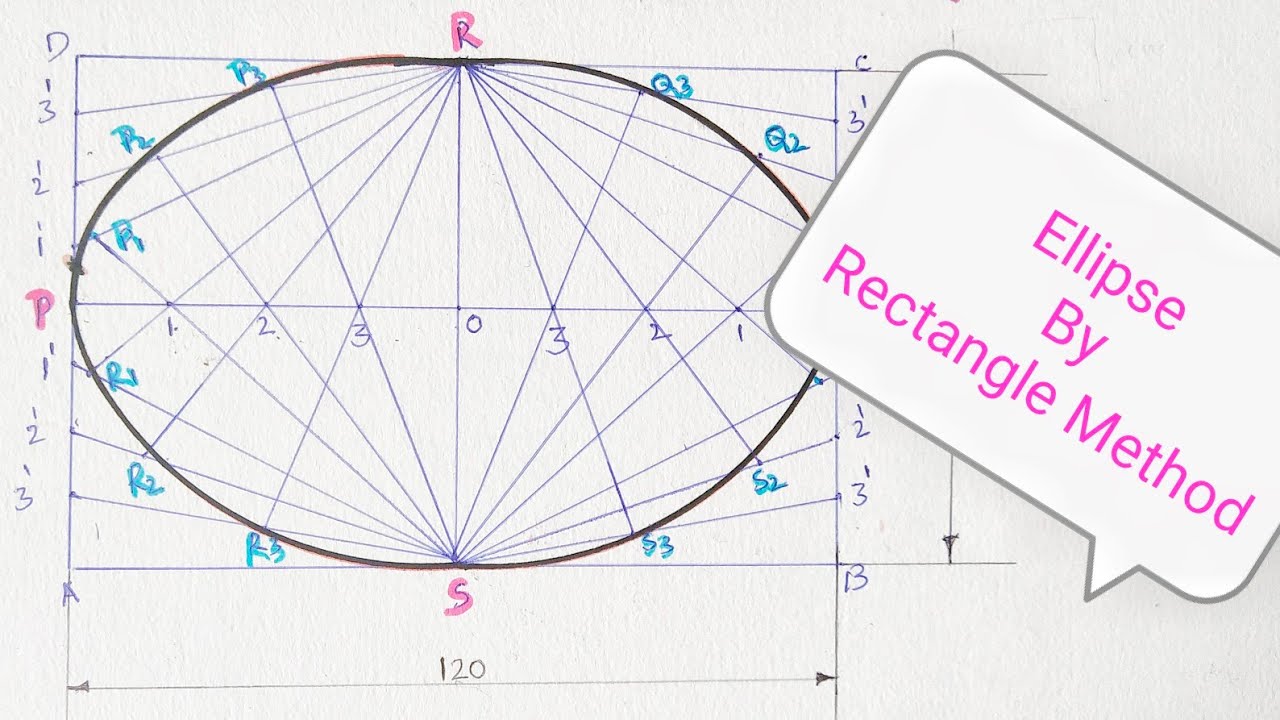

How To Draw Ellipse Using Rectangular Method Here are the steps: start by drawing a rectangle. the length of the rectangle will be the major axis (2a) of the ellipse. the width of the rectangle will be the minor axis (2b) of the ellipse. divide the top and bottom sides of the rectangle into equal parts (for example, 4 or 5 equal segments). Construction of ellipse by oblong method (or rectangular method) 1. major axis. 2. minor axis. example 4: construct an ellipse with major axis 100mm and minor axis 80mm by rectangular method. draw a rectangular efgh with length ef equal to major axis (100mm) and width gh equal to minor axis (80mm). 2. Ellipse by rectangle method. take major axis =120 mm and minor axis =90 mm download as a pptx, pdf or view online for free. You can draw an ellipse in any direction with this method, but remember you must know the length of the major axis and the minor axis, or be able to find them out. Drawing an ellipse is often thought of as just drawing a major and minor axis and then winging the 4 curves. this is good enough for rough drawings; however, this process can be more finely tuned by using concentric circles. This is not a true euclidean construction but a practical way to draw an ellipse given its width and height and when mathematical precision is not so important.
How To Draw Ellipse Using Rectangular Method Ellipse by rectangle method. take major axis =120 mm and minor axis =90 mm download as a pptx, pdf or view online for free. You can draw an ellipse in any direction with this method, but remember you must know the length of the major axis and the minor axis, or be able to find them out. Drawing an ellipse is often thought of as just drawing a major and minor axis and then winging the 4 curves. this is good enough for rough drawings; however, this process can be more finely tuned by using concentric circles. This is not a true euclidean construction but a practical way to draw an ellipse given its width and height and when mathematical precision is not so important.
