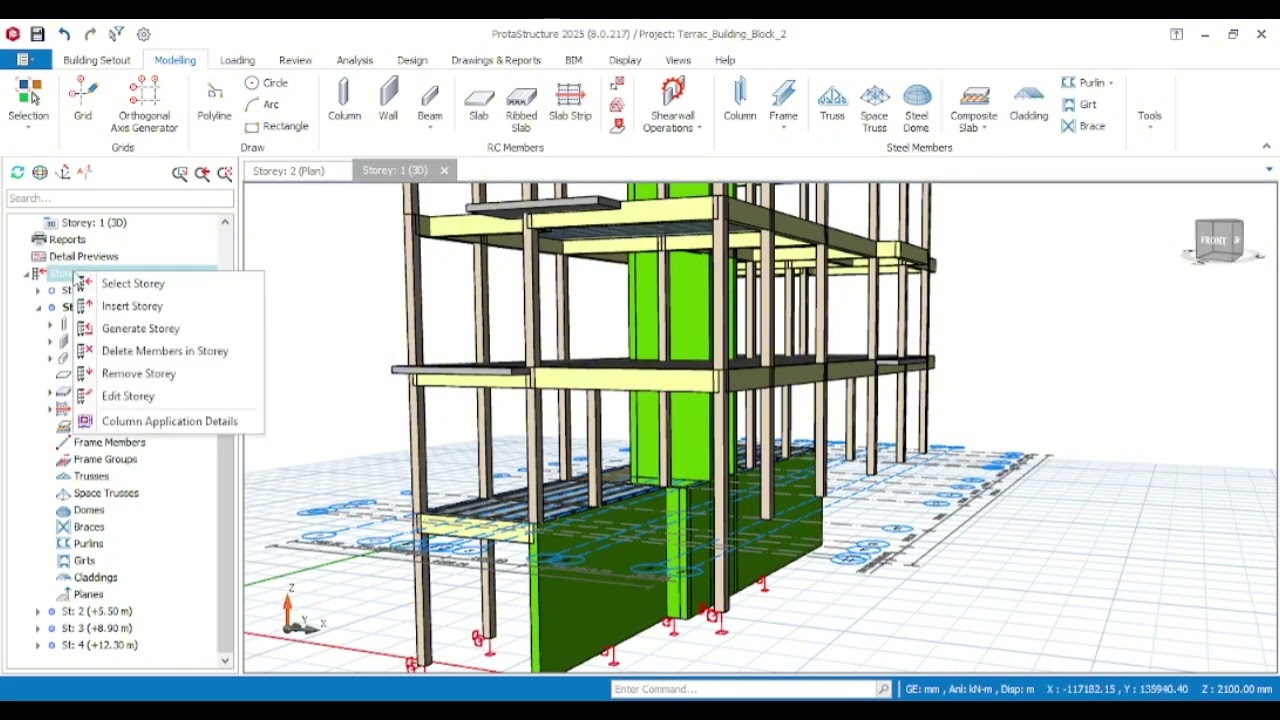

Protastructure How To Model A Foundation At Different Level Storey In this video, i’ll walk you through how to create foundations at different levels in protastructure, using the same practical approach you’d apply on a real project. For a strip footing to be defined under a series of columns walls, foundation beams must have been defined beforehand between the columns walls. protastructure performs the strip footing calculations for all load combinations and draws moment and.

Protastructure How To Model A Foundation At Different Level Storey You can model and analyze foundations at different elevations and elevator pits with foundation slabs and walls. 1. insert slabs in foundation storey as usual. 2. enter the relative elevation difference in the “rel. level” field on the slab. Whether you're a beginner or looking to enhance your skills, these step by step tutorials cover everything from basic setup and modeling to advanced analysis and detailing. Foundation design in protastructure 2019 watch our webinar recording on “foundation design in protastructure”. This course provides a practical, step by step approach to raft foundation analysis and design using protastructure, focusing on real engineering workflows rather than theory alone.

Protastructure How To Model A Foundation At Different Level Storey Foundation design in protastructure 2019 watch our webinar recording on “foundation design in protastructure”. This course provides a practical, step by step approach to raft foundation analysis and design using protastructure, focusing on real engineering workflows rather than theory alone. Key steps include defining the foundation's geometry, applying loads, analyzing the foundation's behavior, designing reinforcement, optimizing the design, and finalizing documentation. following these steps ensures the raft foundation meets safety and serviceability standards. 🎓 learn protastructure 2026 from scratch – your step by step guide is here!. Protastructure is a design system designed for the design of reinforced concrete and steel structures. the program can calculate loads on structures as well as on the ground. A separate foundation floor category is automatically created for foundation members only. if there is different material for a particular storey, a separate material settings can be added by picking the icon.

Protastructure How To Model A Foundation At Different Level Storey Key steps include defining the foundation's geometry, applying loads, analyzing the foundation's behavior, designing reinforcement, optimizing the design, and finalizing documentation. following these steps ensures the raft foundation meets safety and serviceability standards. 🎓 learn protastructure 2026 from scratch – your step by step guide is here!. Protastructure is a design system designed for the design of reinforced concrete and steel structures. the program can calculate loads on structures as well as on the ground. A separate foundation floor category is automatically created for foundation members only. if there is different material for a particular storey, a separate material settings can be added by picking the icon.

Protastructure How To Model A Foundation At Different Level Storey Protastructure is a design system designed for the design of reinforced concrete and steel structures. the program can calculate loads on structures as well as on the ground. A separate foundation floor category is automatically created for foundation members only. if there is different material for a particular storey, a separate material settings can be added by picking the icon.
