17 Gvf Direct Standard Step Methods Pdf Cveen 5420 Open Channel Where the slope is mild (i.e. the normal flow is subcritical), and any downstream control is a long way away, a hydraulic jump can be assumed to jump directly to the normal depth. The document discusses the direct step method for computing gradually varied flow profiles in open channels. [1] the direct step method determines the location where a specified flow depth occurs given another known depth location, through applying the energy equation between the two sections. [2].

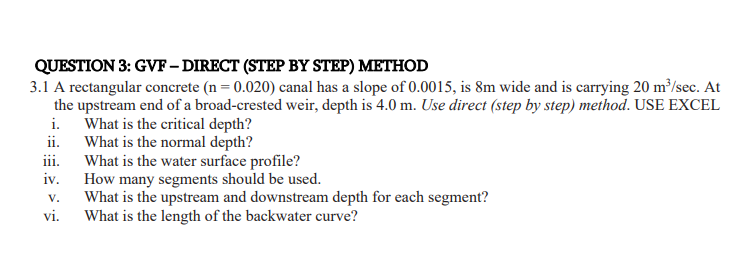

Solved Question 3 Gvf Direct Step By Step Method 3 1 A Chegg This video provides a step by step method on how to solve the gvf equation using the direct step method. This interactive tool estimates the distance required for flow to transition between two depths in a rectangular open channel using the direct step method. it also computes normal depth,. In the direct step method, the location where the specified depth, yd occurs is determined, given the location for the occurrence of depth, yu. consider the channel shown in figure below. in this channel, say depth yu occurs at a distance xu from the reference point. The pc adaptation of the direct step method is documented. a schematic diagram of the direct step method, the spread sheet layouts and listings of the lotus macros used to facilitate the calculations are presented.
Solved Question 3 Gvf Direct Step By Step Method 3 1 A Chegg In the direct step method, the location where the specified depth, yd occurs is determined, given the location for the occurrence of depth, yu. consider the channel shown in figure below. in this channel, say depth yu occurs at a distance xu from the reference point. The pc adaptation of the direct step method is documented. a schematic diagram of the direct step method, the spread sheet layouts and listings of the lotus macros used to facilitate the calculations are presented. Follow along as we break down the step by step process of the direct step method, an essential technique for accurately calculating the length of water surface profiles. This interactive tool estimates the distance required for flow to transition between two depths in a rectangular open channel using the direct step method. it also computes normal depth, critical depth, and classifies the slope type. Two traditional methods – commonly referred to as the direct and standard step methods – are first presented. the computations progress step by step from one section to the next in these methods. then, numerical methods to integrate the governing differential equation are introduced. The uniform flow formula (i.e. manning's or chezy) is used to evaluate the energy slope of a gradually varied flow and the corresponding coefficient of roughness developed primarily for uniform flow are applicable to gvf.
Module Iii Varried Flow Pptx Gvf Definition Water Surface Profile Follow along as we break down the step by step process of the direct step method, an essential technique for accurately calculating the length of water surface profiles. This interactive tool estimates the distance required for flow to transition between two depths in a rectangular open channel using the direct step method. it also computes normal depth, critical depth, and classifies the slope type. Two traditional methods – commonly referred to as the direct and standard step methods – are first presented. the computations progress step by step from one section to the next in these methods. then, numerical methods to integrate the governing differential equation are introduced. The uniform flow formula (i.e. manning's or chezy) is used to evaluate the energy slope of a gradually varied flow and the corresponding coefficient of roughness developed primarily for uniform flow are applicable to gvf.
