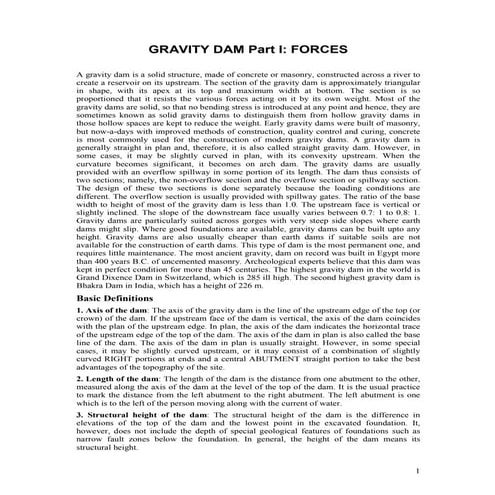

L2 Gravity Dam Forces Pdf Dam Earthquakes The basic requirement for stability of a gravity dam subjected to static loads is that force and moment equilibrium be maintained without exceeding the limits of concrete, foundation, or concrete foundation interface strength. Example 3.1: using the fle xure formula, prove that the resultant force acting on a gravity dam must pass within the middle one third of the base of the dam to ensure that none of the concrete is in tension along the base.

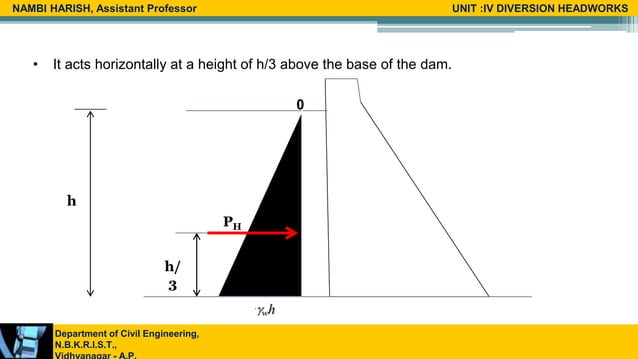

6 Gravity Dam Pdf Dam Stress Mechanics Hydraulics lecture notes 4 analysis of gravity dams free download as pdf file (.pdf), text file (.txt) or read online for free. This document provides information about forces acting on gravity dams. it discusses the main stabilizing and destabilizing forces, including the weight of the dam, water pressure on the upstream and downstream faces, uplift pressure, earth and silt pressures, ice pressure, and other loads. Force due to hydrostatic pressure is the major external force on a gravity dam. the intensity of pressure from zero at the water surface to the maximum (γh) at the base. the force due to this pressure is given by γh2, acting at h 3 from the base. Pdf | on jul 20, 2020, murtada mahdi and others published gravity dams | find, read and cite all the research you need on researchgate.

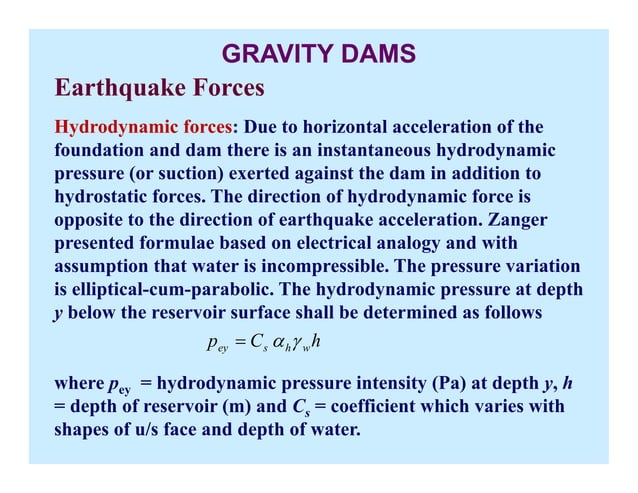

Gravity Dam Forces Pdf Force due to hydrostatic pressure is the major external force on a gravity dam. the intensity of pressure from zero at the water surface to the maximum (γh) at the base. the force due to this pressure is given by γh2, acting at h 3 from the base. Pdf | on jul 20, 2020, murtada mahdi and others published gravity dams | find, read and cite all the research you need on researchgate. Figure 23 shows the position and direction of the various forces expected in a concrete gravity dam. forces like temperature stresses and wind pressure have not been shown. In order to find the force generated due to the acceleration, it would be necessary to divide the dam into horizontal strips, finding out the force on each strip, and then integrating for the total dam height (figure 33). Concrete gravity dam is a massive structure having many forces acting on it. it’s very important for the dam to survive against seismic vibrations. this paper is mainly focused on behaviour of concrete gravity dam with earthquake intensities as per u.s.b.r. recommendation. In this way, one can calculate the principal stresses at the upstream and the downstream faces of the dam at any horizontal section by considering only the forces acting above the section.
Forces Acting On Gravity Dam G L Asawa Download Scientific Diagram Figure 23 shows the position and direction of the various forces expected in a concrete gravity dam. forces like temperature stresses and wind pressure have not been shown. In order to find the force generated due to the acceleration, it would be necessary to divide the dam into horizontal strips, finding out the force on each strip, and then integrating for the total dam height (figure 33). Concrete gravity dam is a massive structure having many forces acting on it. it’s very important for the dam to survive against seismic vibrations. this paper is mainly focused on behaviour of concrete gravity dam with earthquake intensities as per u.s.b.r. recommendation. In this way, one can calculate the principal stresses at the upstream and the downstream faces of the dam at any horizontal section by considering only the forces acting above the section.
