Github Prasanthrajsrag M2 Keypad Interfacing Using Atmega328p This 4x4 matrix keypad has 16 built in pushbutton contacts connected to row and column lines. a microcontroller can scan these lines for a button pressed state. the functionality of the k is coded in embedded c and the working is demonstrated using simuation in a software called simulide. The document discusses interfacing keyboards and lcd displays. it describes both linear and matrix arrangements for keyboards and explains how to identify which key is pressed in a matrix.
73 Keypad Interfacing Atmega328p Youtube Contribute to prasanthrajsrag m2 keypad interfacing using atmega328p development by creating an account on github. Popular repositories loading github slideshow html m1 hotel management system c html m2 keypad interfacing using atmega328p m2 keypad interfacing using atmega328p makefile. In order to read the keypress, we need to configure the rows as outputs and columns as inputs. columns are read after applying signals to the rows in order to determine whether or not a key is pressed and if pressed, which key is pressed. I am trying to interface an atmega32 micro controller with a 16x2 lcd and a 4x4 keypad matrix. i am simulating with proteus and using winavr compiler. the lcd part is okay (i have thoroughly test.
Github Ahmedeltorky Lcd And Keypad Interfacing With Atmega328 Lcd In order to read the keypress, we need to configure the rows as outputs and columns as inputs. columns are read after applying signals to the rows in order to determine whether or not a key is pressed and if pressed, which key is pressed. I am trying to interface an atmega32 micro controller with a 16x2 lcd and a 4x4 keypad matrix. i am simulating with proteus and using winavr compiler. the lcd part is okay (i have thoroughly test. This application note shows how a general keypad application can be implemented with tinyavr® and megaavr® devices. a conceptual overview of the operation of a matrix keypad and two demo applications are presented. In this lab, i have analyzed keypad interfacing with the atmega328p in c. the keypad has 4. rows and 4 columns which make contact when the buttons on top of them are pressed. these. are verified using virtual terminal in proteus. In this lab experiment we got to know how to interface keypad by using digital i o ports. an avr code was created and burned in arduino and was connected to keypad. Explore seamless 4x4 keypad interfacing with atmega32 microcontroller for efficient input control in your projects. get started now!.

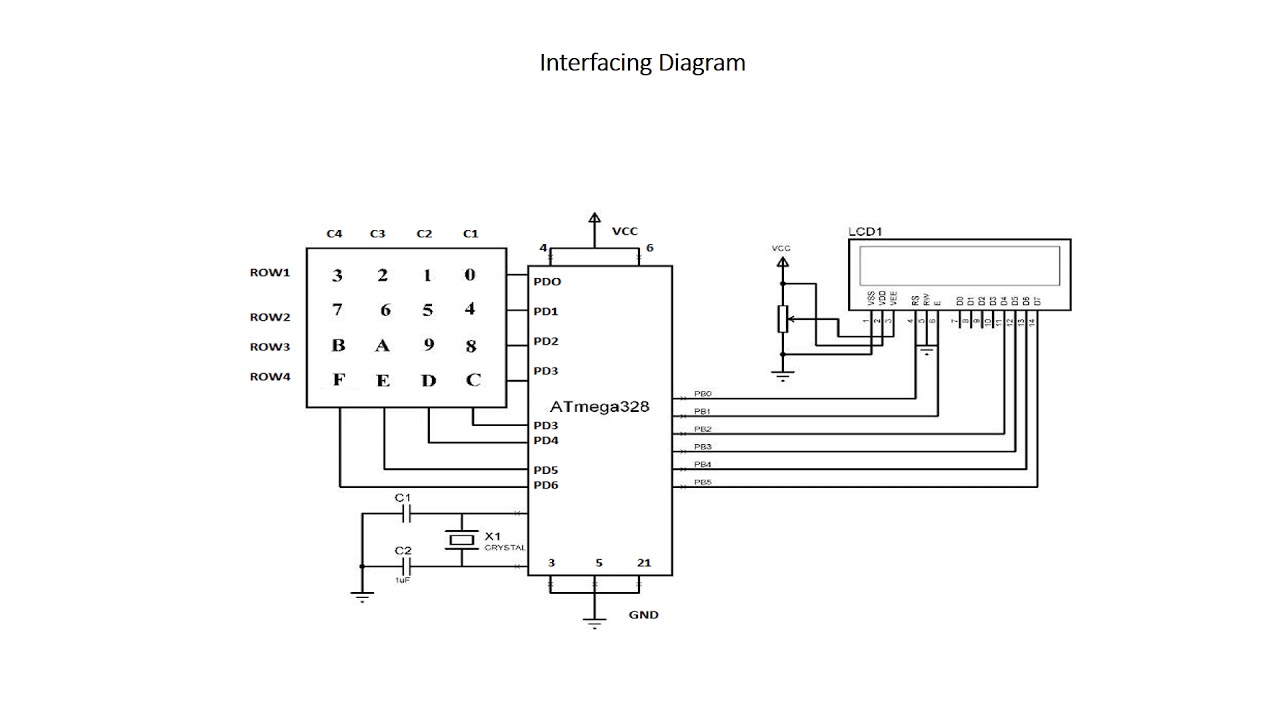

Atmega328p Interfacing With Lcd And Keypad Youtube This application note shows how a general keypad application can be implemented with tinyavr® and megaavr® devices. a conceptual overview of the operation of a matrix keypad and two demo applications are presented. In this lab, i have analyzed keypad interfacing with the atmega328p in c. the keypad has 4. rows and 4 columns which make contact when the buttons on top of them are pressed. these. are verified using virtual terminal in proteus. In this lab experiment we got to know how to interface keypad by using digital i o ports. an avr code was created and burned in arduino and was connected to keypad. Explore seamless 4x4 keypad interfacing with atmega32 microcontroller for efficient input control in your projects. get started now!.
