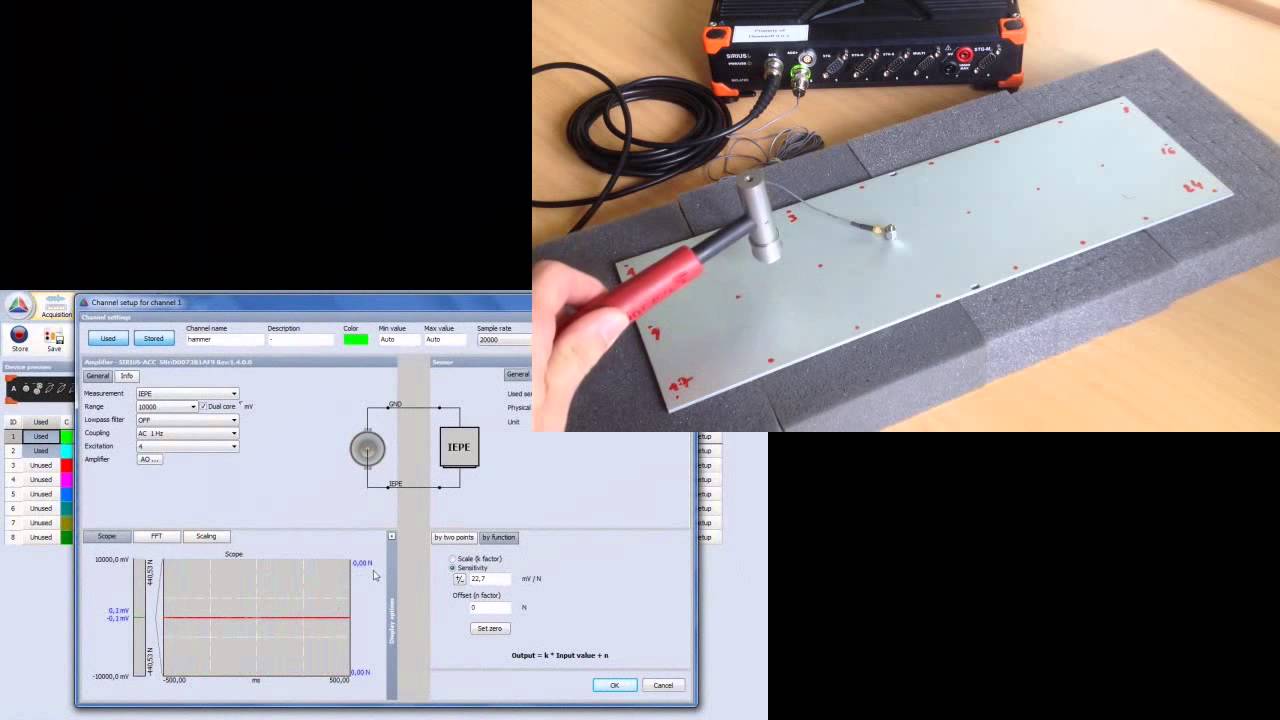

Setup Of Frequency Response Function Frf Measurement Download How to set a channel in dewesoft for frf measurement. more on dewesoft more. A minimum of two channels of data must be acquired to measure a structural frf: an input force and the response output of a test object. in an impact measurement, the input force is provided by a modal impact hammer, while the test object output response is measured with an accelerometer (figure 1).
Overview Starting with fundamental concepts—like fft‑based frequency response functions and transfer functions—you’ll learn how to excite structures via impact hammer or shaker, set up signal acquisition (triggers, averaging, coherence), and capture high‑quality frf data. Learn how to program a baofeng radio with this step by step guide covering frequency setup, channel configuration, and essential settings for beginners. The setup includes an accelerometer attached to channel 2 of the enpac 2500, an impact hammer connected to channel 1 and part to be tested. the measurement is saved on the enpac 2500 for future review and analysis. Download the dewefrf v6.5 user manual. this comprehensive guide covers all aspects of the software, including channel setup, frf analysis, and data export.
The Experimental Setup Used For Extracting Frf Left And Comparison Of The setup includes an accelerometer attached to channel 2 of the enpac 2500, an impact hammer connected to channel 1 and part to be tested. the measurement is saved on the enpac 2500 for future review and analysis. Download the dewefrf v6.5 user manual. this comprehensive guide covers all aspects of the software, including channel setup, frf analysis, and data export. Modal mimo frf testing includes a dedicated test setup and operation process flow using multiple simultaneous shakers to acquire frf signals. Settings are similar to the shaker method, except that we can’t use the function generator and we are limited to one reference “excitation” channel. with spectral ods, one of the accelerometers is selected as the reference channel and other are selected as response channels. Master frequency response function (frf) analysis with our comprehensive guide. learn theory, measurement techniques, modal analysis applications & examples. A minimum of two channels of data must be acquired to measure a structural frf: an input force and the response output of a test object. in an impact measurement, the input force is provided by a modal impact hammer, while the test object output response is measured with an accelerometer (figure 1).
Experimental Setup And Details Of Frf S Measurement Download Modal mimo frf testing includes a dedicated test setup and operation process flow using multiple simultaneous shakers to acquire frf signals. Settings are similar to the shaker method, except that we can’t use the function generator and we are limited to one reference “excitation” channel. with spectral ods, one of the accelerometers is selected as the reference channel and other are selected as response channels. Master frequency response function (frf) analysis with our comprehensive guide. learn theory, measurement techniques, modal analysis applications & examples. A minimum of two channels of data must be acquired to measure a structural frf: an input force and the response output of a test object. in an impact measurement, the input force is provided by a modal impact hammer, while the test object output response is measured with an accelerometer (figure 1).
Frf Master frequency response function (frf) analysis with our comprehensive guide. learn theory, measurement techniques, modal analysis applications & examples. A minimum of two channels of data must be acquired to measure a structural frf: an input force and the response output of a test object. in an impact measurement, the input force is provided by a modal impact hammer, while the test object output response is measured with an accelerometer (figure 1).
