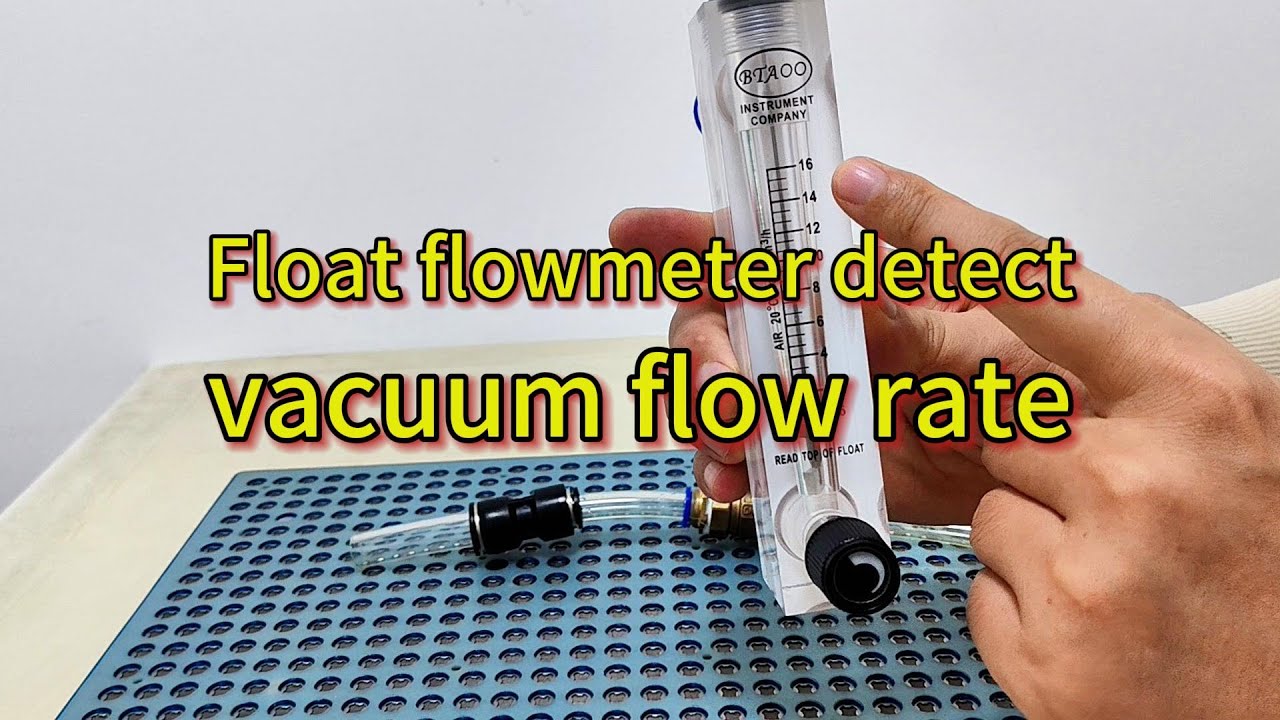

What Is Vacuum Flow Rate At Kurt Scott Blog A vacuum flow rate that is too low will not close all the internal valves of the vacuum table's suction ports. therefore, it is necessary to use a float flowmeter to test the vacuum. As flow increases, the float moves upward, and its position becomes a direct indication of the flow rate. these meters are favored for their simplicity, robustness, and visual flow indication without requiring external power sources.
How To Measure Vacuum Flow Rate A Step By Step Guide Kitchen Tips The height of the float, which is a measure of the flowrate, is then transmitted externally to the meter tube using a float position detector system (see fig. 1 2). At this time, the float will stay in the area where the upward force generated by the pressure difference and the downward force generated by the gravity of the float are balanced, and the displayed result is the instantaneous flow rate. Achieve consistent accuracy with swagelok variable area flowmeters for measuring gas and fluid flow. select from glass or metal tube options to suit your specific application needs. swagelok ® variable area flowmeters use a tapered tube and float to measure the flow rate of liquids and gases. Instead, the instruments use a cylindrical control tube with a conical groove along its axis. the upper edge of the float indicates the flow rate via the scale printed upon the glass metering tube, calibrated in gpm (water) or scfm (air).
How To Measure Vacuum Flow Rate A Step By Step Guide Kitchen Tips Achieve consistent accuracy with swagelok variable area flowmeters for measuring gas and fluid flow. select from glass or metal tube options to suit your specific application needs. swagelok ® variable area flowmeters use a tapered tube and float to measure the flow rate of liquids and gases. Instead, the instruments use a cylindrical control tube with a conical groove along its axis. the upper edge of the float indicates the flow rate via the scale printed upon the glass metering tube, calibrated in gpm (water) or scfm (air). Operates at a relatively constant pressure drop and provides flow measurement of liquids, gases and steam. apure va flow meters offer simple installation and trouble free operation while delivering highly accurate flow measurements in low flow, high pressure, and other applications. As shown in the figure, the area (float type) flow meter has a conical cylinder (tapered tube) with the upper end larger than the lower end, having a float inside. By reading the scale corresponding to the float, the instantaneous flow rate of the fluid can be directly obtained. this type of flowmeter has a simple structure, low cost, good stability and visualizing. it is suitable for measuring small and medium flow rates of liquids, gases or steam. Float flowmeter, as a direct flow indicator or field indicator with low measurement accuracy, is widely used in electric power, petrochemical, chemical, metallurgy, medicine and other process industries and sewage treatment and other public utilities.
