Flare Stack With Water Seal An afg combustion designed liquid seal eliminates pulsating flows as well as ensuring that sufficient water is retained to seal the flare header as soon as flaring ceases. the liquid seal can be supplied as an integral part of a flare stack or as a remote unit. Pilot burners are provided to ensure a continuous ignition source at the flare stack. the system consists of multiple pilot burners arranged around the flare tip, supplemented by remote controlled pilot ignition systems to ensure against flame failure.

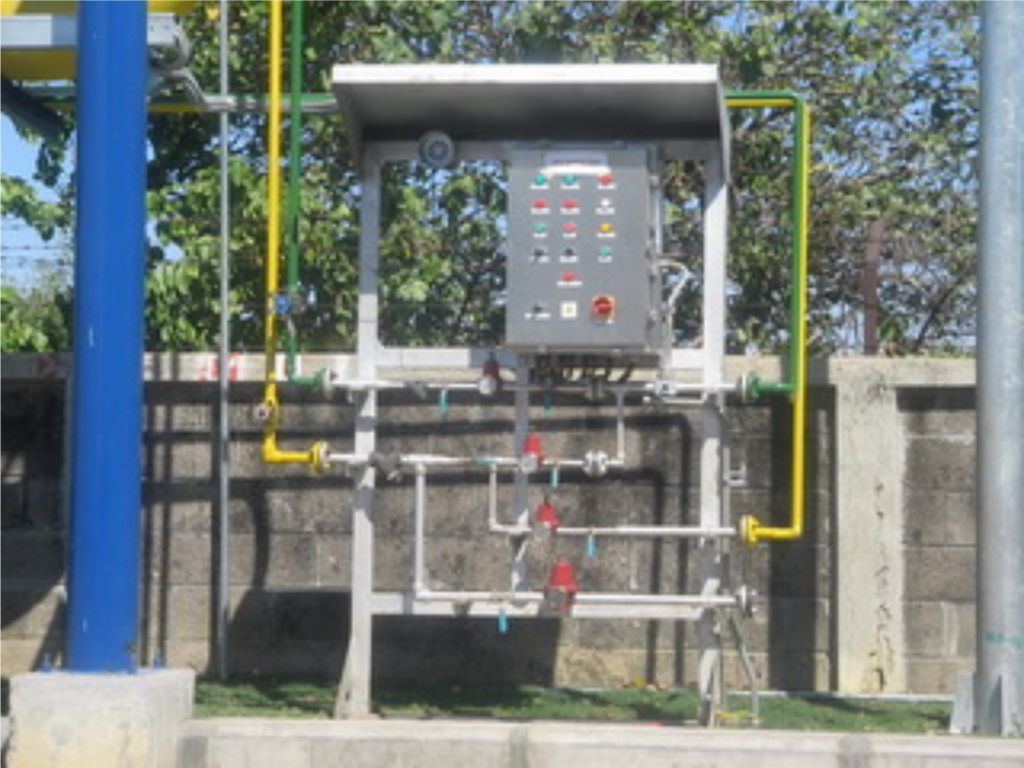

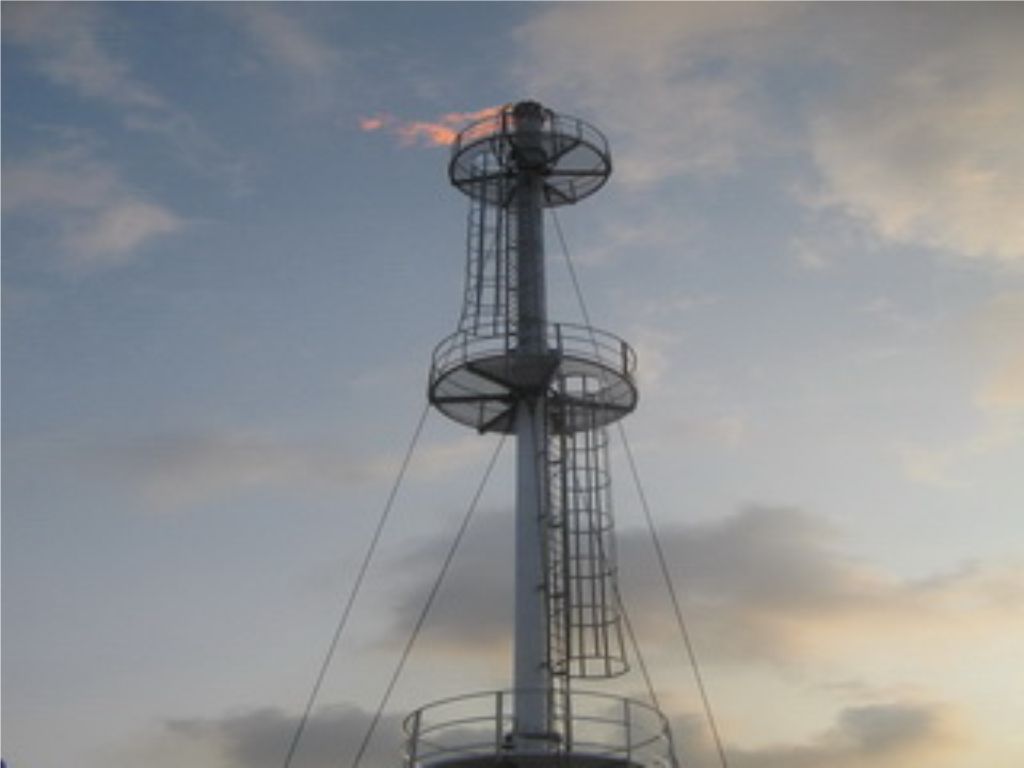

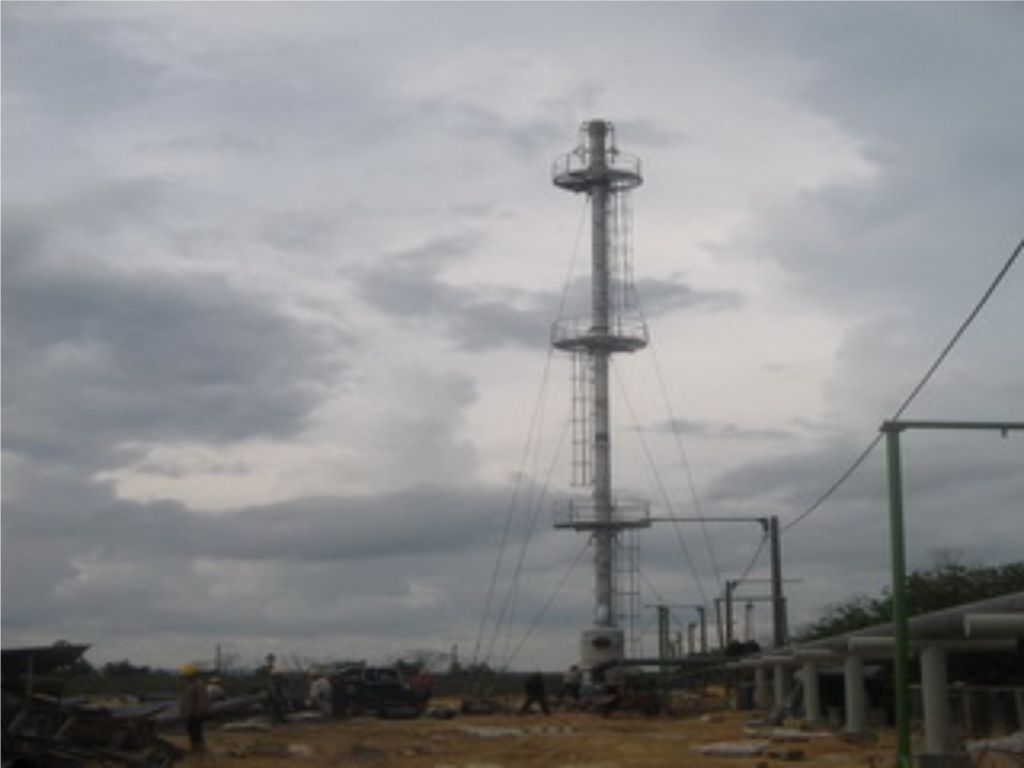

Flare Stack With Water Seal Flare stack with water seal elevated flare with water seal and guy wired. capacity 60 mmscfd at lpg plant gresik. If you are seriously looking to replace or modify your water seals, consult with your flare designer and or experts like john zink about the options and designs that you can substitute for it. Reliable flashback prevention and pressure isolation with engineered water seals. cra water seals are engineered flare safety devices designed to prevent flame flashback and provide pressure isolation between the process header and flare stack. Designed to bubble the waste gas through the water to ensure there is no path for a flashback to penetrate the water barrier.

Flare Stack With Water Seal Reliable flashback prevention and pressure isolation with engineered water seals. cra water seals are engineered flare safety devices designed to prevent flame flashback and provide pressure isolation between the process header and flare stack. Designed to bubble the waste gas through the water to ensure there is no path for a flashback to penetrate the water barrier. A water seal in a drum is to be provided near the stack or at its base and is to be used in combination with a gas seal just below the stack tip. the gas seal reduces the quantity of purge gas required. This document provides requirements for the design, fabrication, and testing of flares and flare stacks. This is especially of use when an elevated flare is used in combination with another flare or with a flare gas recovery system. the gba water seal design incorporates advanced features to ensure smooth gas flow without pulsation. Water seal does not permit air ingress into the gas inlet pipe. liquid (water) also helps in extinguishing any fire that would have accidentally travelled up to the bottom of flare stack.
