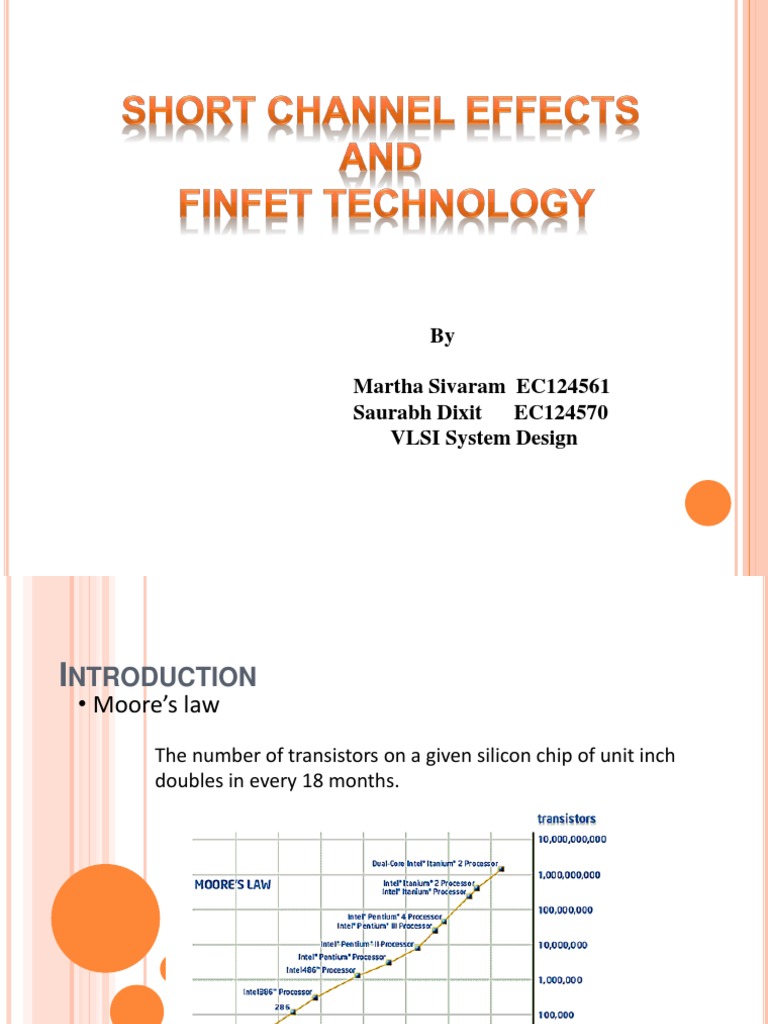

Finfet Multiple Gate Transistors Pdf Field Effect Transistor Mosfet The "omega finfet" design, named after the similarity between the greek letter "omega" and the shape in which the gate wraps around the source drain structure, has a gate delay of just 0.39 picosecond (ps) for the n type transistor and 0.88 ps for the p type. Unlike traditional planar cmos transistors, which are flat and lie on the substrate, finfets feature a fin shaped 3d channel that rises above the substrate and is surrounded on multiple sides by the gate.

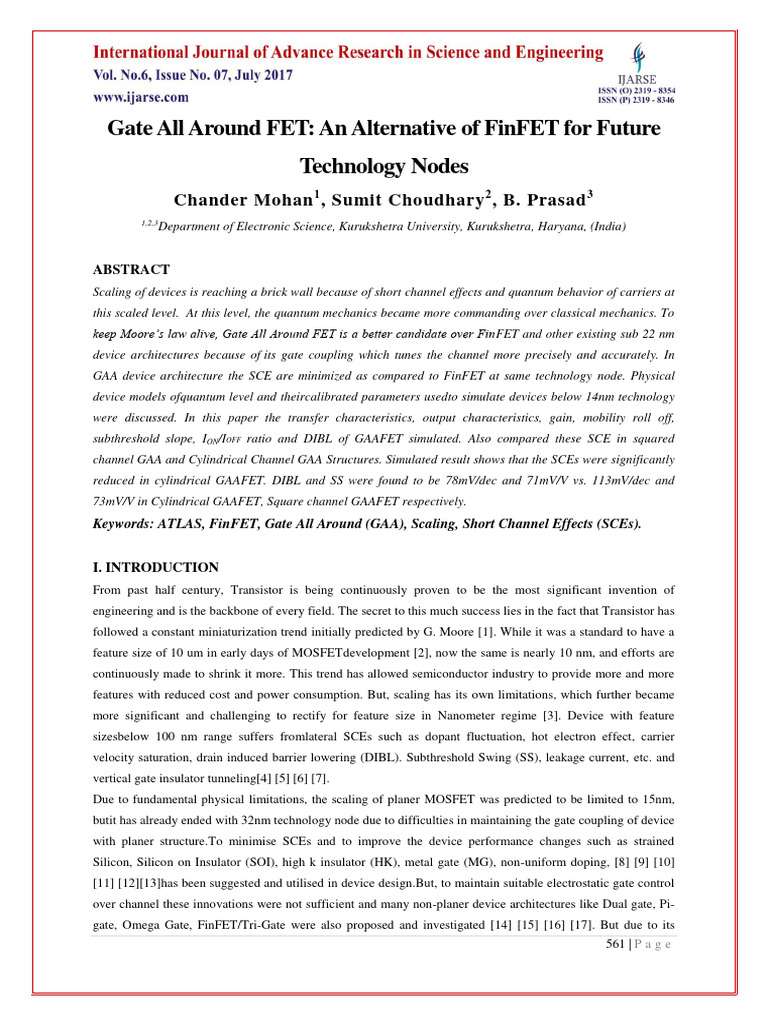

Gate All Around Fet An Alternative Of Finfet For Future Technology Multigate fet manufacturing. this chapter describes thinfin formation techniques, advanced gate stack deposition and source drain res. stance reduction techniques. issues related to fin crystal orientation and mobility enhancement via strain e. Finfets and other multi gate transistors provides a comprehensive description of the physics, technology and circuit applications of multigate field effect transistors (fets). In multi gate fet, we just curve the interior corner of the fin so that premature channel should not form. if we increase the radius of curves, corner effects can be removed from the device. Finfet is one of the multigate transistors. it provides a various range of improved parameters like speed of operation, less power consumption, and a better scalability during design.
16 Dual Gate Fet Structure Left And A Finfet Structure Right In multi gate fet, we just curve the interior corner of the fin so that premature channel should not form. if we increase the radius of curves, corner effects can be removed from the device. Finfet is one of the multigate transistors. it provides a various range of improved parameters like speed of operation, less power consumption, and a better scalability during design. This paper presents a comprehensive investigation on the role and manifestation of the finfet effect in low voltage 4h sic mosfets as compared to their si counterparts. The 3d schematic view of gate all around (gaa), triple gate (tg) and double gate (dg) finfet structures are shown in fig. 1a, fig. 1b, fig. 1c and these structures are used for analytical modeling and numerical simulation. Using multi gate finfet technology could improve control of the gate over the channel charge. we have discussed finfets, or multigate transistors, in this chapter. Circuit design for finfet soi material shares strong similarities to circuit design for bulk – based silicon, though optimization is required between the two process types.
