Flare System Design For Oil And Gas Pdf Fig. 1 shows a typical flare system in a process plant. the important features of a flare system are. when any equipment in the plant is over pressured, the pressure relief valve is an essential safety device that automatically releases gases and sometimes liquids. It is used to dispose of purged and wasted products from refineries, unrecoverable gases emerging with oil from oil wells, vented gases from blast furnaces, unused gases from coke ovens, and.
Figure 1 Flare System When designing the flare system, several important parameters have to be consider, there are flare head design, flare exit velocity, voc (volatile organic compounds) heating value, and whether the flame is assisted by steam or air. Figure 1: steam assisted elevated flare system these design guideline are believed to be as accurate as possible, but are very general and not for specific design cases. The system consists of multiple pilot burners arranged around the flare tip, supplemented by remote controlled pilot ignition systems to ensure against flame failure. It discusses gas flaring definitions, components of a flare system, types of flares, environmental impacts, and considerations for flare system design and sizing calculations.

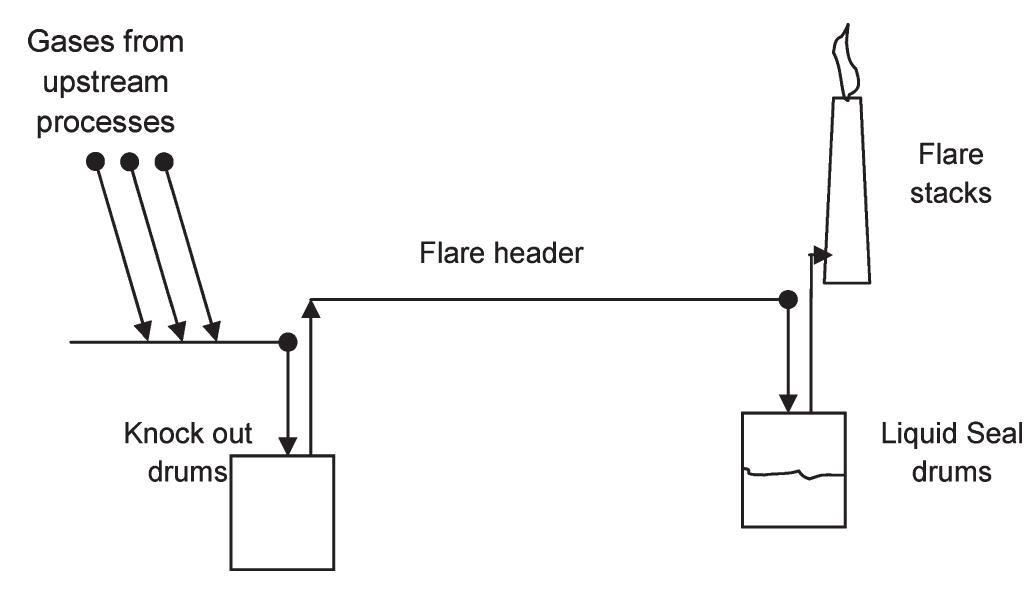

Flare System Components Design Download Scientific Diagram The system consists of multiple pilot burners arranged around the flare tip, supplemented by remote controlled pilot ignition systems to ensure against flame failure. It discusses gas flaring definitions, components of a flare system, types of flares, environmental impacts, and considerations for flare system design and sizing calculations. A flare system is defined as a safety mechanism designed to safely receive and dispose of combustible and toxic gases and vapors released from process equipment, by burning them through an elevated stack while minimizing pollution and smoke. The specific design of a flare system depends on the type of flare. the major components include the flare burner (with or without smoke suppression capability), support structure, piping, and ancillary equipment (figure 5). Figure 1 is a schematic of the components of a flare system (9–11). flares are typically used when the heating value of the waste gases cannot be recovered eco nomically because of intermittent or uncertain flow or when the value of the recovered product is low. Typical structure of the flare relief system. this study introduces a new approach for designing a flare network system that ensures economic feasibility and safety using dynamic simulation.
Components Of A Flare System A flare system is defined as a safety mechanism designed to safely receive and dispose of combustible and toxic gases and vapors released from process equipment, by burning them through an elevated stack while minimizing pollution and smoke. The specific design of a flare system depends on the type of flare. the major components include the flare burner (with or without smoke suppression capability), support structure, piping, and ancillary equipment (figure 5). Figure 1 is a schematic of the components of a flare system (9–11). flares are typically used when the heating value of the waste gases cannot be recovered eco nomically because of intermittent or uncertain flow or when the value of the recovered product is low. Typical structure of the flare relief system. this study introduces a new approach for designing a flare network system that ensures economic feasibility and safety using dynamic simulation.
Figure A 11 Flare System Model For Facility A Dead Ends From Psvs And Figure 1 is a schematic of the components of a flare system (9–11). flares are typically used when the heating value of the waste gases cannot be recovered eco nomically because of intermittent or uncertain flow or when the value of the recovered product is low. Typical structure of the flare relief system. this study introduces a new approach for designing a flare network system that ensures economic feasibility and safety using dynamic simulation.
