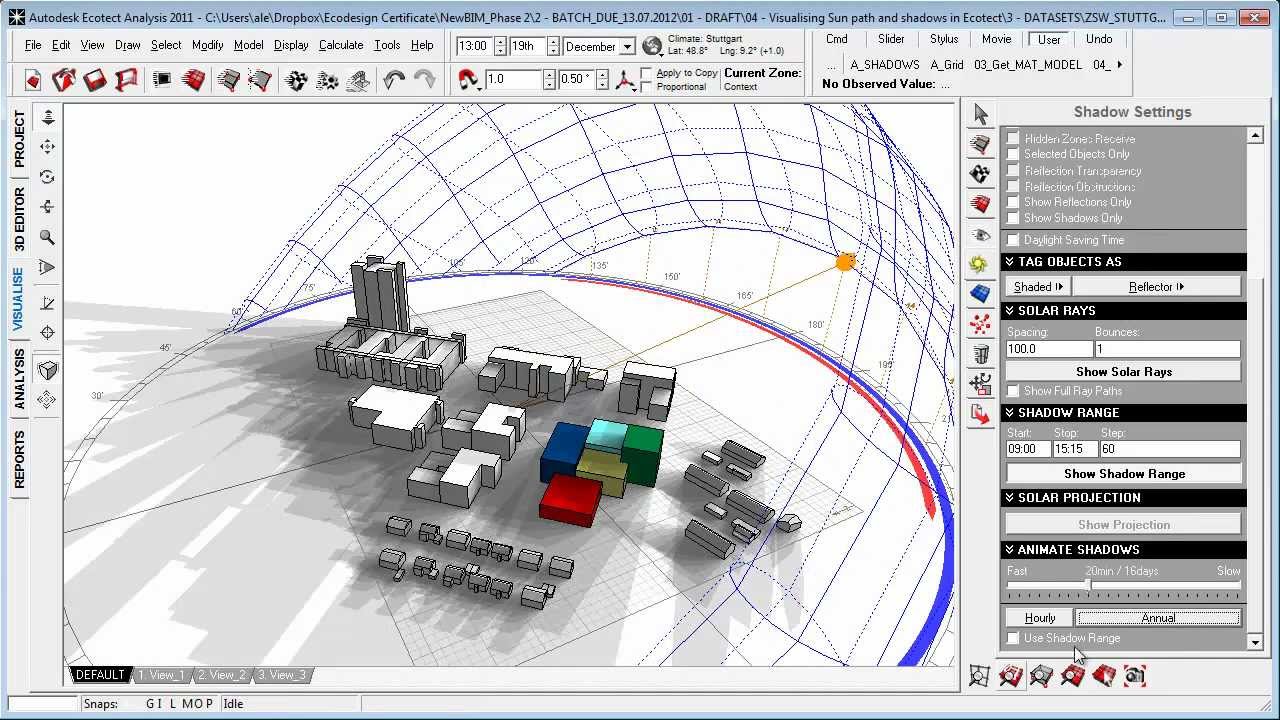

Ecotect Interface And Visualizing Sun Path And Shadow Reference Learn how to use the sunpath and shadow tools within the 3d editor and visualize tabs within autodesk ecotect. Click on the display shadows button to display the shadows created by the model. to change the time of day, click on the sun and drag it around the daily sun path. for a more specifi c time and date you can enter the values in the time of day fi eld in the main toolbar. The document discusses how to export 3d geometry from cityengine to ecotect and perform various analyses in ecotect including daylighting, shadows, solar access, and acoustics. The interactive sun path tool within ecotect allows the sun path to be visualized to study the impact of natural light and shadows on the exteriors and interiors of the project at any location.

Ecotect Interface And Visualizing Sun Path And Shadow Reference The document discusses how to export 3d geometry from cityengine to ecotect and perform various analyses in ecotect including daylighting, shadows, solar access, and acoustics. The interactive sun path tool within ecotect allows the sun path to be visualized to study the impact of natural light and shadows on the exteriors and interiors of the project at any location. Reading of the different sun path diagrams and their use in shading analysis is also explained in the presentation. Ecotect has similar sun path tools as autodesk project vasari and revit. this video explains the sunpath and shadow tools within the 3d editor and visualize tabs. Working with 3d sun path diagrams • go to the shadow settings panel and select the daily sun path and annual sun path checkboxes • click on the display shadows button to display the shadows created by the model. • to change the time of day, click on the sun and drag it around the daily sun path. To understand the impact of the solar position on your building, you can use the sun and shadows settings in revit to visualize the position of the sun at your location at any time of the day or of the year.

Ecotect Interface And Visualizing Sun Path And Shadow Reference Reading of the different sun path diagrams and their use in shading analysis is also explained in the presentation. Ecotect has similar sun path tools as autodesk project vasari and revit. this video explains the sunpath and shadow tools within the 3d editor and visualize tabs. Working with 3d sun path diagrams • go to the shadow settings panel and select the daily sun path and annual sun path checkboxes • click on the display shadows button to display the shadows created by the model. • to change the time of day, click on the sun and drag it around the daily sun path. To understand the impact of the solar position on your building, you can use the sun and shadows settings in revit to visualize the position of the sun at your location at any time of the day or of the year.
