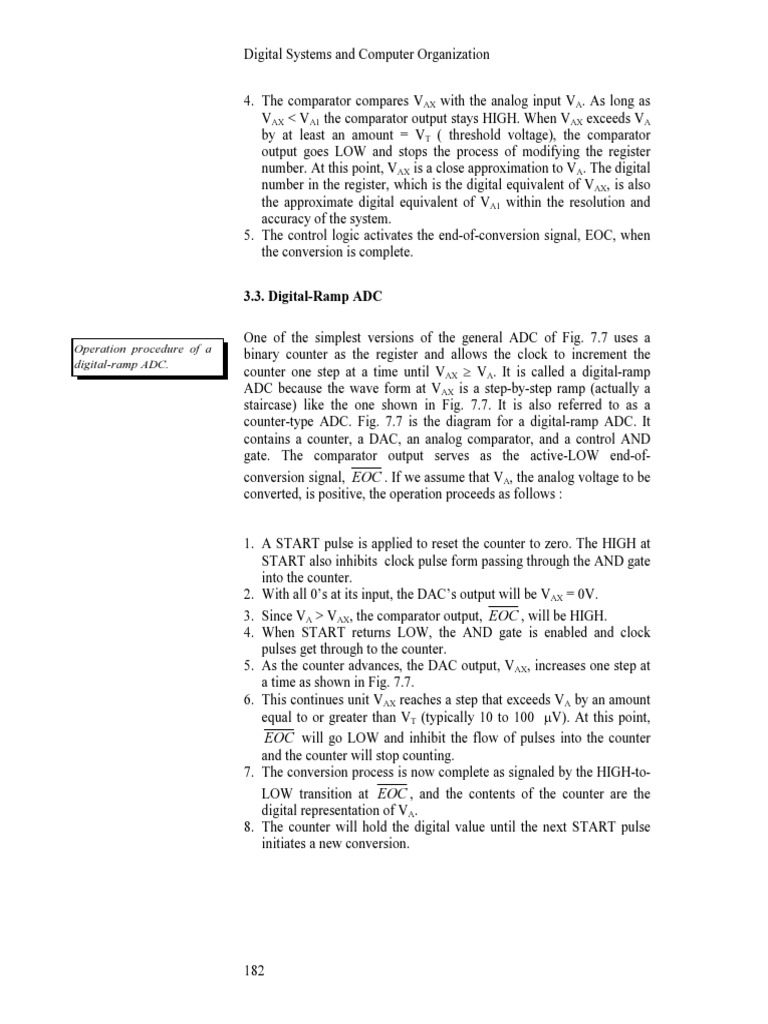

Operation Procedure Of A Digital Ramp Adc Ax A Ax A1 Ax A T Pdf A working principle of an analog digital converter (adc): the ramp compare methode. slides: drive.google file d 1xvyr more. A ramp type analog to digital converter (also known as ramp compare or time base adc) comprises five basic circuits: a ramp generator, a counter, a comparator circuit, a clock pulse generator, and a gate circuit, which are simultaneously operated to provide analog to digital conversion.
Ramp Adc Polytechnic Hub The basic idea is to connect the output of a free running binary counter to the input of a dac, then compare the analog output of the dac with the analog input signal to be digitized and use the comparator’s output to tell the counter when to stop counting and reset. The counter type analog to digital converter (adc) is also known as the digital ramp adc. it is because the output of the counter is fed to a digital to analog converter (dac), and while the counter increments its count, the output of the dac increases in ramp fashion or staircase fashion. Ramp mode can automatically update intermediate compare thresholds without user or software interaction. user sets the ramp start and end thresholds, together with selected step width in between, then fcc will automatically update thresholds during ramp up or ramp down control. One of the simpler approaches in implementing an adc is the ramp converter shown in figure 4 6. it consists of a digital counter, a dac, an analog comparator, and control logic with timing generation.
Solved Tutorial On Ramp Digital Adc Design 3 Bit Ramp Adc Chegg Ramp mode can automatically update intermediate compare thresholds without user or software interaction. user sets the ramp start and end thresholds, together with selected step width in between, then fcc will automatically update thresholds during ramp up or ramp down control. One of the simpler approaches in implementing an adc is the ramp converter shown in figure 4 6. it consists of a digital counter, a dac, an analog comparator, and control logic with timing generation. Here is the new html5 simulator site. the output of a binary counter is connected to a dac. this produces a ramp wave. a comparator is used to compare the ramp with the signal to be converted. when the comparator changes state, the binary data is latched. in this way the analogue input is converted to binary numbers. The basic idea is to connect the output of a free running binary counter to the input of a dac, then compare the analog output of the dac with the analog input signal to be digitized and use the comparator\’s output to tell the counter when to stop counting and reset. Principles of adc – the input signal is compared with an internally generated voltage which is increased in steps starting from zero. the number of steps needed to reach the full compensation is counted. a simple compensation type is the staircase ramp. The basic idea is to connect the output of a free running binary counter to the input of a dac, then compare the analog output of the dac with the analog input signal to be digitized and use the comparator's output to tell the counter when to stop counting and reset.
Fig Count Up Type Adc Stair Case Ramp Type Adc Download Scientific Here is the new html5 simulator site. the output of a binary counter is connected to a dac. this produces a ramp wave. a comparator is used to compare the ramp with the signal to be converted. when the comparator changes state, the binary data is latched. in this way the analogue input is converted to binary numbers. The basic idea is to connect the output of a free running binary counter to the input of a dac, then compare the analog output of the dac with the analog input signal to be digitized and use the comparator\’s output to tell the counter when to stop counting and reset. Principles of adc – the input signal is compared with an internally generated voltage which is increased in steps starting from zero. the number of steps needed to reach the full compensation is counted. a simple compensation type is the staircase ramp. The basic idea is to connect the output of a free running binary counter to the input of a dac, then compare the analog output of the dac with the analog input signal to be digitized and use the comparator's output to tell the counter when to stop counting and reset.
1 Adc Architectures Dual Slope Adc Counter Ramp Principles of adc – the input signal is compared with an internally generated voltage which is increased in steps starting from zero. the number of steps needed to reach the full compensation is counted. a simple compensation type is the staircase ramp. The basic idea is to connect the output of a free running binary counter to the input of a dac, then compare the analog output of the dac with the analog input signal to be digitized and use the comparator's output to tell the counter when to stop counting and reset.
