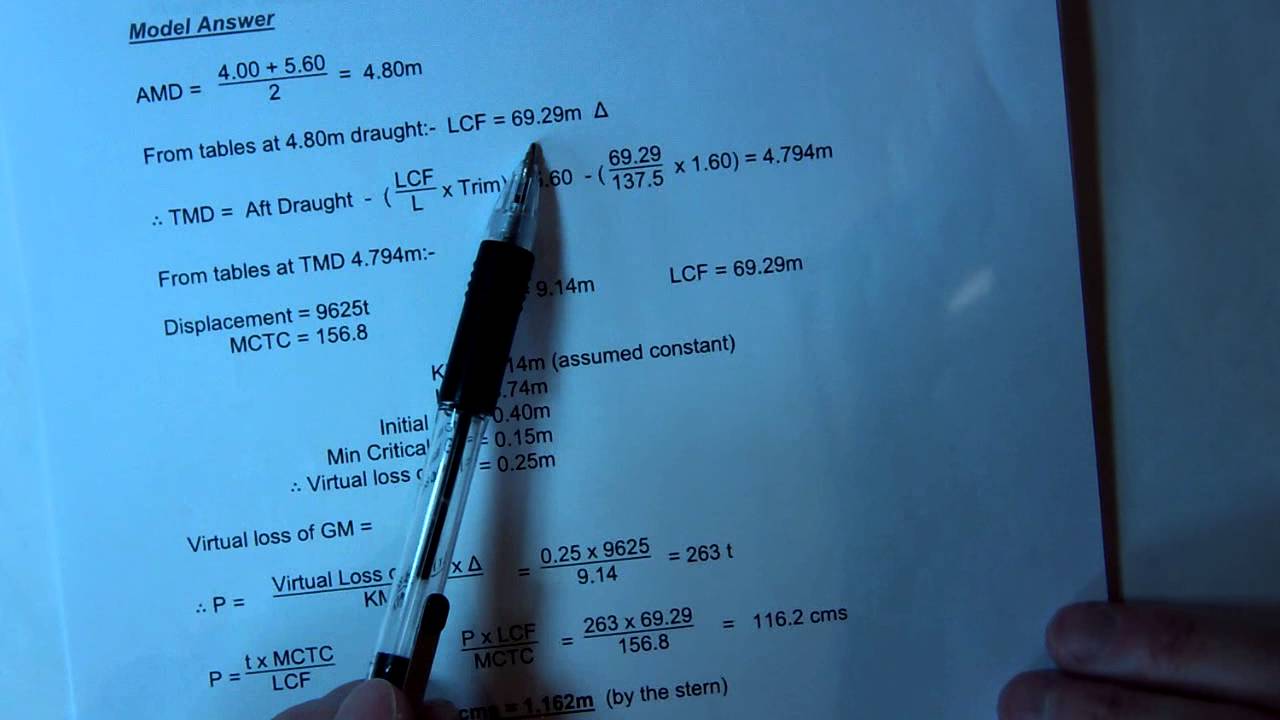

Us Navy Dry Dock Graving dock slope of approximately 1% exists primarily for drainage to pumps—it's not a trim requirement but affects local loading when vessel trim differs from dock slope. Dry dock 1 maximum trim philip ashton fd stability 1.31k subscribers subscribe subscribed 23.
Mhb Welcomes First Vessel At Newly Built Dry Dock 2) the maximum trim a ship can have when entering drydock to ensure a required metacentric height is maintained at the critical instant. iterative calculations may be needed for accuracy. The minimum trim is decided by the requirement from the dock master and the maximum trim is decided by the minimum virtual gm, the ship must have at the critical moment. Once the bow touches the blocks, the dock authorities will place the side shores and bilge blocks in position to fully support the ship. hence any subsequent loss of gm has no significance because now the ship cannot capsize. Calculations covering different trim values should be carried out in steps not exceeding 1% of l. the whole range including intermediate trims should be covered by the damage stability calculations. refer to the example showing an envelope curve obtained from calculations of 0 trim and 1% of l.
Floating Dry Dock Design The Ultimate Guide To Dry Dock Of Ships Once the bow touches the blocks, the dock authorities will place the side shores and bilge blocks in position to fully support the ship. hence any subsequent loss of gm has no significance because now the ship cannot capsize. Calculations covering different trim values should be carried out in steps not exceeding 1% of l. the whole range including intermediate trims should be covered by the damage stability calculations. refer to the example showing an envelope curve obtained from calculations of 0 trim and 1% of l. The certification methods, calculations and related items listed throughout this specification ensure that the contracted dry dock has sufficient lifting capacity and structural strength for safely handling a coast guard vessel within the trim and stability requirements for dry docking. Explore key concepts in naval architecture stability, including gm calculations, dry docking procedures, and maximum trim allowances for safe vessel operations. The main points are: frequency: all merchant vessels must undergo a complete survey of the hull in a dry dock twice within a 5 year period. interval: the interval between any two dry dock inspections cannot exceed 36 months. In this video, capt. s.s. chaudhari explains a sample calculation to understand the importance of trim at which to arrive a drydock … more.
Dry Dock 1 Caisson A Photo On Flickriver The certification methods, calculations and related items listed throughout this specification ensure that the contracted dry dock has sufficient lifting capacity and structural strength for safely handling a coast guard vessel within the trim and stability requirements for dry docking. Explore key concepts in naval architecture stability, including gm calculations, dry docking procedures, and maximum trim allowances for safe vessel operations. The main points are: frequency: all merchant vessels must undergo a complete survey of the hull in a dry dock twice within a 5 year period. interval: the interval between any two dry dock inspections cannot exceed 36 months. In this video, capt. s.s. chaudhari explains a sample calculation to understand the importance of trim at which to arrive a drydock … more.
