Driveworks Quick Tips Driveworks In driveworks administrator, go to the model rules tab. 2. click select all on the top toolbar to select all your models, drawings, and assemblies and display all the rules. 3. click on the. With a rule that contains the term to be modified open in the rule builder, select the portion of the rule to be changed. right click on the highlighted portion, and select replace in rules.

Driveworks Quick Tips Driveworks Whether you’re looking at what’s possible with driveworks, need a refresher on a feature you have not used in a while, or you are learning it for the first time, the quick tip videos take you through the process. After capturing the models that you want to drive, you can use the rules screen to add one or more instances of those models to your project and setup rules for them. In the face of a large number of repetitive design drawings, it is recommended to use the parametric combination mode of solidworks driveworks to shorten the product delivery cycle and help engineers solve many problems. today, let's take a look at how to quickly replace parts in the ui interface through background configuration in driveworks. Use the driveworksxpress rule builder dialog box to create the required rule result and click ok. repeat these steps until you have defined all the rules.

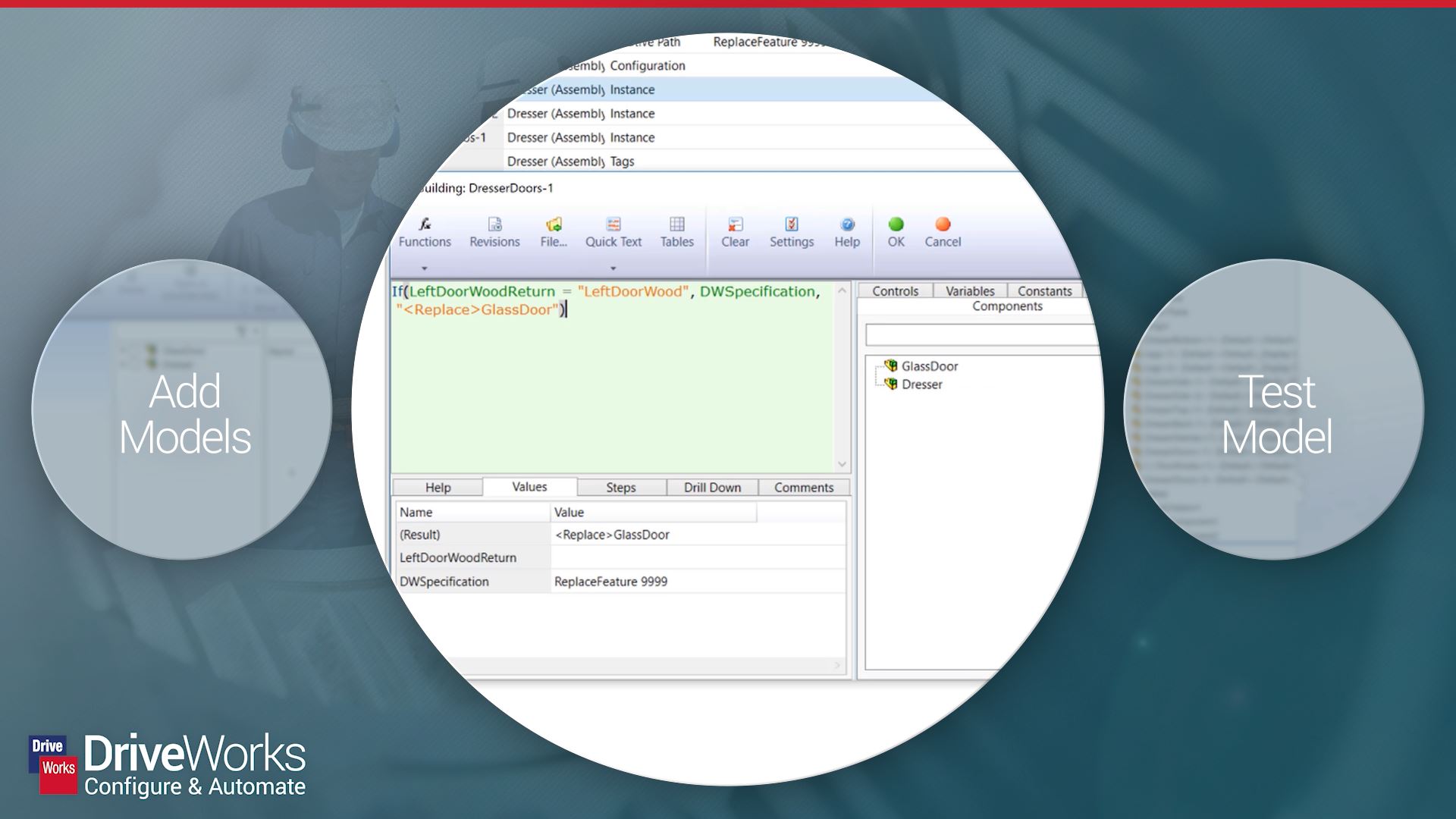

Driveworks Quick Tips Driveworks In the face of a large number of repetitive design drawings, it is recommended to use the parametric combination mode of solidworks driveworks to shorten the product delivery cycle and help engineers solve many problems. today, let's take a look at how to quickly replace parts in the ui interface through background configuration in driveworks. Use the driveworksxpress rule builder dialog box to create the required rule result and click ok. repeat these steps until you have defined all the rules. Selecting the search rules tool will open the search rules dialog and will immediately begin populating the list with all rules used throughout the project. this includes the following rule types:. The instance rule is used to determine the suppression state, delete, replace the instance or change the configuration of the instance. an instance can have its state changed and configuration switched by using the following syntax. To make the "" syntax even easier, the rules builder automatically detects when you are building a file name rule and a browser appears on the right hand side which allows you to just double click on the available components. You can use the search box to find the variable you are looking for, and double click it to use it in the rule. variable categories in the rule builder remain persistent when opening and closing the rule builder.

Driveworks Quick Tips Driveworks Selecting the search rules tool will open the search rules dialog and will immediately begin populating the list with all rules used throughout the project. this includes the following rule types:. The instance rule is used to determine the suppression state, delete, replace the instance or change the configuration of the instance. an instance can have its state changed and configuration switched by using the following syntax. To make the "" syntax even easier, the rules builder automatically detects when you are building a file name rule and a browser appears on the right hand side which allows you to just double click on the available components. You can use the search box to find the variable you are looking for, and double click it to use it in the rule. variable categories in the rule builder remain persistent when opening and closing the rule builder.
