Double Pendulum We treat the two pendulum masses as point particles. begin by drawing the free body diagram for the upper mass and writing an expression for the net force acting on it. Welcome to our state of the art double pendulum tool, the premier online simulation for observing, analyzing, and understanding the unpredictable nature of chaotic systems.
The Double Pendulum Rotations How is a double pendulum different from a simple pendulum? a: it does not obey the conservation of energy b: both are the same c: double pendulums have periodic motion while a simple pendulum does not d: double pendulums show both linear and non linear motion. Free double pendulum chaos simulator. visualize sensitive dependence on initial conditions and the butterfly effect. compare trajectories, track energy, and explore lagrangian mechanics. This is a simulation of a double pendulum. experience the captivating beauty of physics in motion with this double pendulum simulation an elegant example of a simple physical system with complex behavior. The double pendulum is known to exhibit chaotic behavior for most initial conditions. there are also initial conditions where the double pendulum does not exhibit chaotic behavior. below are several examples of high energy initial conditions that display stable behavior.

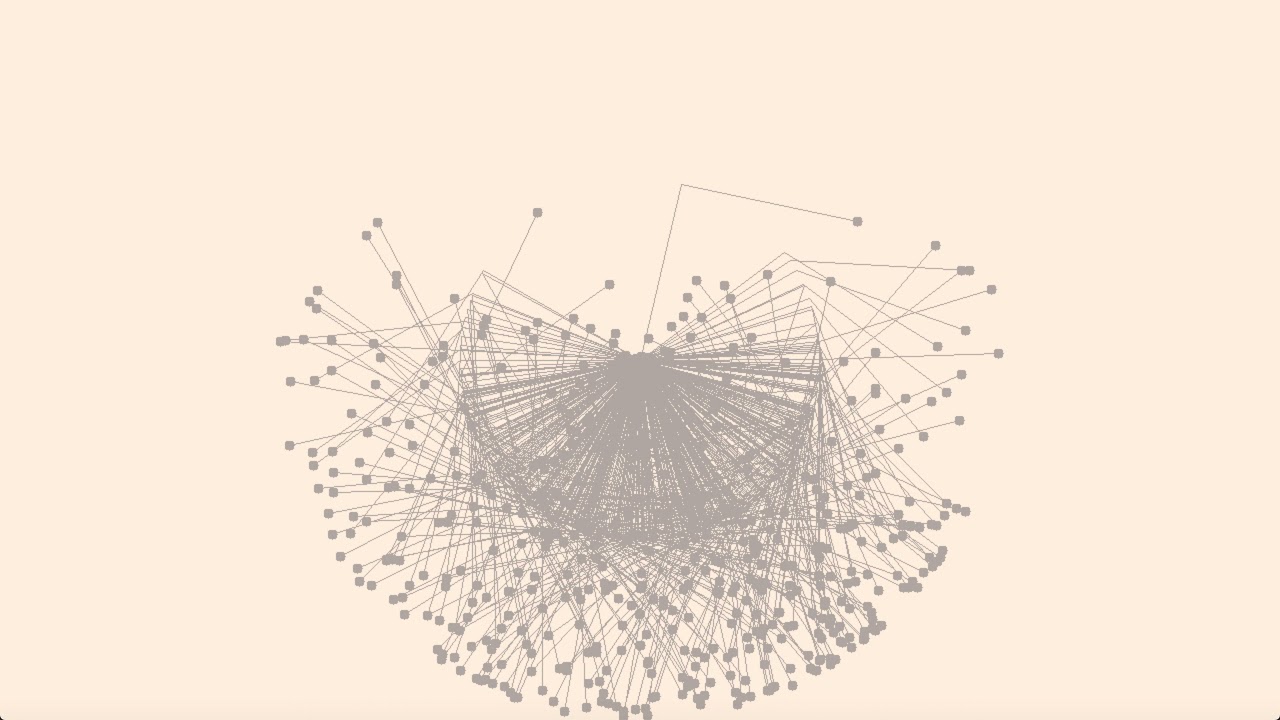

File Double Pendulum Test Png Statwiki This is a simulation of a double pendulum. experience the captivating beauty of physics in motion with this double pendulum simulation an elegant example of a simple physical system with complex behavior. The double pendulum is known to exhibit chaotic behavior for most initial conditions. there are also initial conditions where the double pendulum does not exhibit chaotic behavior. below are several examples of high energy initial conditions that display stable behavior. There is a matlab program, written by alexander erlich, which can solve the double pendulum problem, display the pendulum system, and make a movie of the results. Physics 331 advanced classical mechanics problem set 34 the double pendulum task 1 using the lagrangian to obtain the equations of motion. consider a double pendulum, comprising a mass m1 suspended by a massless rod of length l1 from a fixed pivot point, and a second mass m2 suspended by a massless rod of l2 from m1, as shown in the figure. Key pendulum parameters are outlined below. the simulation numerically integrates the differential equations of motion for α₁ and α₂ in order to determine the pendulum mass positions θ₁ and θ₂. The double pendulum is a simple yet rich physical system. the motion of the pendulums is governed by a pair of coupled differential equations, which we will solve using the euler method.
