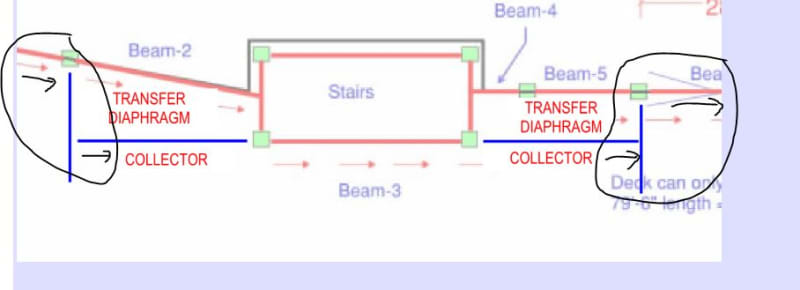

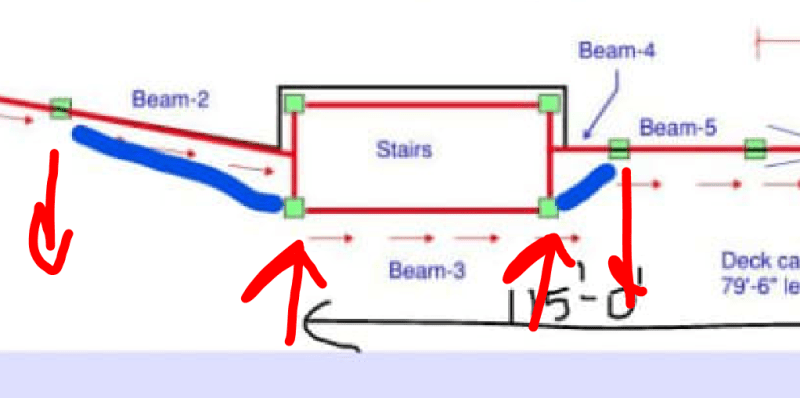

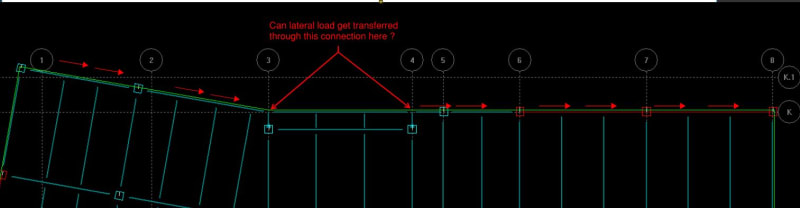

Discontinuous Load Path Eng Tips Your large diaphragm will dump its load into the collectors blue and the interior stair wall. then the blue collectors will put it into the transfer diaphragms. When some structural elements are discontinued along a direct load path, loads have to bend and take detours to other load paths; buildings with discontinuous or indirect load paths are undesirable, because brittle damage can occur in structural elements at the interruptions or bends.
Discontinuous Load Path Eng Tips This article provides a clear, technical, and deeply practical explanation of how load paths work, how they behave when buildings move or change, and why accurate load transfer understanding is essential for safe design, renovations, inspections, and forensic investigations. This detailed guide explores the intricacies of calculating load paths, providing structural engineers, architects, and construction professionals with the knowledge needed to perform accurate and reliable load path analyses. Explore different types of structural loads and learn how load paths affect safety, efficiency, and strength in modern structural design. When some structural elements are discontinued along a direct load path, loads have to bend and take detours to other load paths; buildings with discontinuous or indirect load paths are undesirable, because brittle damage can occur in structural elements at the interruptions or bends.
Discontinuous Load Path Eng Tips Explore different types of structural loads and learn how load paths affect safety, efficiency, and strength in modern structural design. When some structural elements are discontinued along a direct load path, loads have to bend and take detours to other load paths; buildings with discontinuous or indirect load paths are undesirable, because brittle damage can occur in structural elements at the interruptions or bends. Eng tips is the largest forum for engineering professionals on the internet. members share and learn making eng tips forums the best source of engineering information on the internet!. I wouldn't call it the "bible" of wood diaphragms, but it is an excellent reference. it forces you to think logically about load paths for irregular shaped diaphragms. how it affects shear and detailing around corners and such. kind of like doing force transfer around openings for shears walls. I'm calculating discontinuous loads on an 18' wood beam for a story story single family dwelling. the loading includes roof and ceiling loads, exterior wall over the beam and second floor joist loads parallel to the beam. Is this an in plane discontinuity in the seismic system? here's what my framing looks like: i know it's not the best, but i did this years ago. now it's under audit and a regulator is saying it's a vertical irregularity, which i tend to agree with. however, i would like to defend myself.
Discontinuous Load Path Eng Tips Eng tips is the largest forum for engineering professionals on the internet. members share and learn making eng tips forums the best source of engineering information on the internet!. I wouldn't call it the "bible" of wood diaphragms, but it is an excellent reference. it forces you to think logically about load paths for irregular shaped diaphragms. how it affects shear and detailing around corners and such. kind of like doing force transfer around openings for shears walls. I'm calculating discontinuous loads on an 18' wood beam for a story story single family dwelling. the loading includes roof and ceiling loads, exterior wall over the beam and second floor joist loads parallel to the beam. Is this an in plane discontinuity in the seismic system? here's what my framing looks like: i know it's not the best, but i did this years ago. now it's under audit and a regulator is saying it's a vertical irregularity, which i tend to agree with. however, i would like to defend myself.
Discontinuous Load Path Eng Tips I'm calculating discontinuous loads on an 18' wood beam for a story story single family dwelling. the loading includes roof and ceiling loads, exterior wall over the beam and second floor joist loads parallel to the beam. Is this an in plane discontinuity in the seismic system? here's what my framing looks like: i know it's not the best, but i did this years ago. now it's under audit and a regulator is saying it's a vertical irregularity, which i tend to agree with. however, i would like to defend myself.
