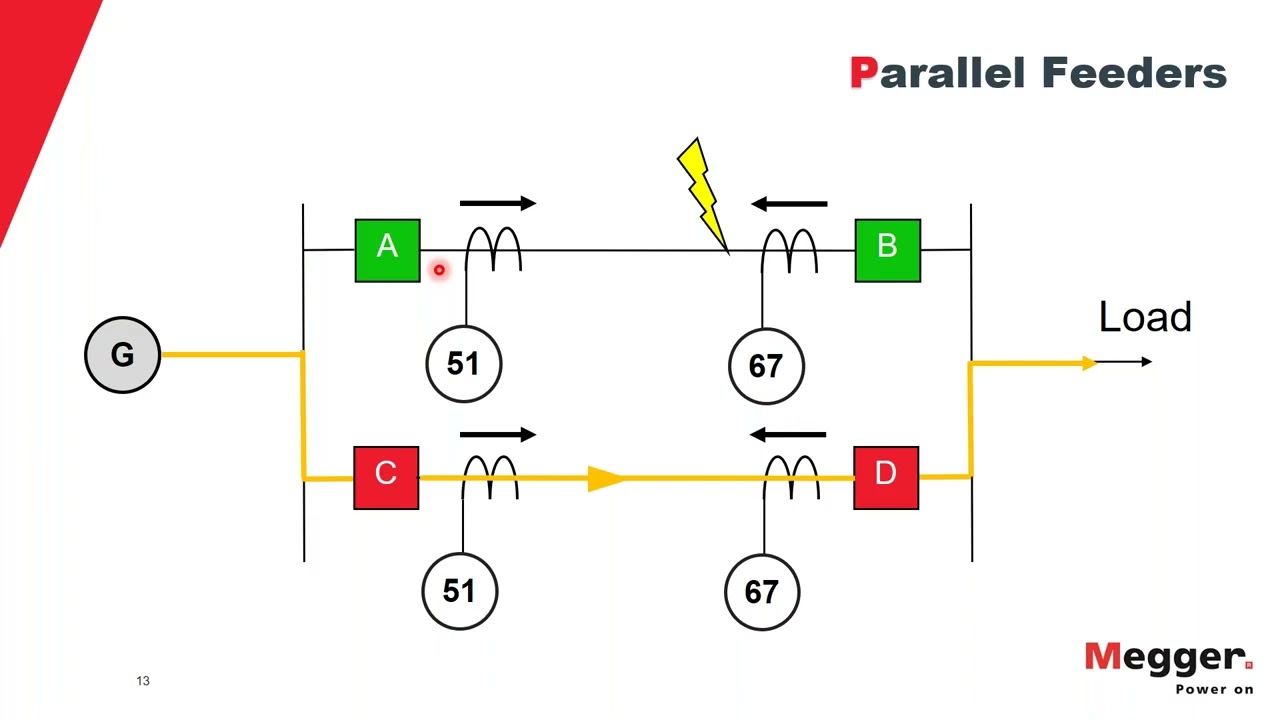

Directional Overcurrent Relaying Now And Then Pdf Relay Directional overcurrent relays provide directional protection for parallel transmission lines. they use voltage and current measurements to determine the direction of fault current flow and only trip for faults in the forward direction. Now, with traditional overcurrent relays, a directional overcurrent relay can be visualized as a cascade connection of 'one directional unit' and one overcurrent unit. if the polarity of the current is appropriate, then directional unit picks up.
11 Webinar Directional Overcurrent Relaying Pdf Relay Transformer Abstract – directional overcurrent relaying (67) refers to relaying that can use the phase relationship of voltage and current to determine direction to a fault. there are a variety of concepts by which this task is done. this paper will review the mainstream methods by which 67 type directional decisions are made by protective relays. This webinar will provide some refresher on the theory and explain traditional methods to determine directionality back in the electromechanical relay days and also what we have now in the. Learn directional overcurrent protection: relaying, discrimination, and voltage polarization. ideal for electrical engineering students. For directional over current relay, the fault current can flow in both the directions through the relay either forward or reverse, depending upon fault location. therefore, it is necessary to make the relay respond for a particular defined direction, so that proper discrimination is possible.
Overview Of Non Directional Overcurrent Relays Pdf Physics Learn directional overcurrent protection: relaying, discrimination, and voltage polarization. ideal for electrical engineering students. For directional over current relay, the fault current can flow in both the directions through the relay either forward or reverse, depending upon fault location. therefore, it is necessary to make the relay respond for a particular defined direction, so that proper discrimination is possible. Construction of directional overcurrent relay : the schematic diagram of the directional overcurrent relay is shown in the figure given below. it consists of two relay units mounted in a common case, namely directional relay unit, and non directional or overcurrent relay unit. For example, overcurrent relays can be made directional by adding above discrimination logic to well known overcurrent logic. such relays are called as directional overcurrent relays. This is what traditionally practiced in legacy directional overcurrent relays. with this placement we now show that directional unit will pickup for both 3 phase and l l faults. Today, with microprocessor relays, there are several unique ways in which manufacturers have combined these phase relationships to provide the most secure and reliable operation for direction overcurrent elements.
