Cre Cstr Notes Pdf Reaction Rate Chemical Reactor The document discusses the continuous stirred tank reactor (cstr), including design equations, parameters for a single cstr such as space time and residence time, mole balances, and graphical representations. A continuous stirred tank reactor (cstr) is a type of chemical reactor designed to conduct continuous chemical reactions in liquid or gaseous phase. below, its main characteristics are described:.

Cre Lab Report On Conversion In Cstr Cstr New Continuous Stirred Tank The continuous stirred tank reactor (cstr) model simulates a well mixed reactor with continuous feed and discharge streams. the model incorporates arrhenius reaction kinetics, material balance, energy balance, and heat transfer with jacket cooling. After our detailed discussion on plug flow reactor (pfr) design, let’s now explore the design of another commonly used reactor type in pharmaceutical and chemical process industries — the mixed flow reactor (mfr), also known as continuous stirred tank reactor (cstr). As an example, example 12.7.4 describes an adiabatic, steady state cstr and shows that the reactor design equations have three solutions. furthermore, each of the three solutions is physically feasible. Cstr (continuous stirred tank reactor) is commonly used in industry. the article presents a mathematical model and principles of design.

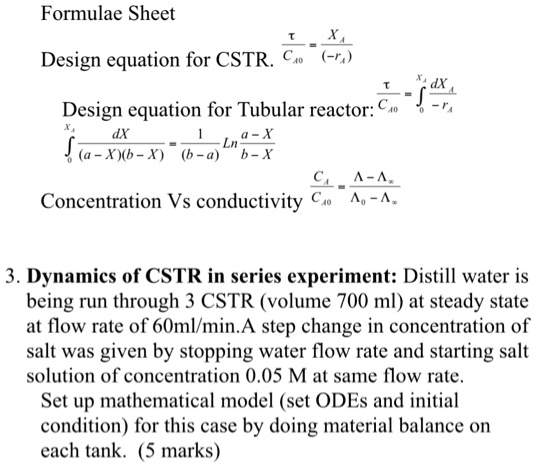

Cstr Design Equation Concentration Tessshebaylo As an example, example 12.7.4 describes an adiabatic, steady state cstr and shows that the reactor design equations have three solutions. furthermore, each of the three solutions is physically feasible. Cstr (continuous stirred tank reactor) is commonly used in industry. the article presents a mathematical model and principles of design. Combining equations 24.5 and 24.6, we arrive at the design equation for cstrs: (1.23.8) [j] 0 [j] = τ r j. note that if [j] 0 [j]> 0, then j is depleted in the reaction, and this means that r j <0, as we would expect if, for example, j is a reactant. A simulink ® representation of this nonlinear reactor model is available in the models cstr openloop and cstr inout. it is used in several examples illustrating how to linearize nonlinear models and how to use linear, adaptive, gain scheduled, and nonlinear mpc to control a nonlinear plant. Advanced reactor design calculator to size and analyze cstr, pfr, and batch reactors based on reaction kinetics and process requirements. calculate reactor volumes, residence times, conversion rates, and optimize reaction conditions for chemical processes. This equation can then be rearranged to find the volume of the cstr based on the flow rates and the reaction rate: from the definition of conversion, fa = fao(1 x) or fao fa = faox, so the equation can be rewritten:.

Cstr Design Equation Concentration Tessshebaylo Combining equations 24.5 and 24.6, we arrive at the design equation for cstrs: (1.23.8) [j] 0 [j] = τ r j. note that if [j] 0 [j]> 0, then j is depleted in the reaction, and this means that r j <0, as we would expect if, for example, j is a reactant. A simulink ® representation of this nonlinear reactor model is available in the models cstr openloop and cstr inout. it is used in several examples illustrating how to linearize nonlinear models and how to use linear, adaptive, gain scheduled, and nonlinear mpc to control a nonlinear plant. Advanced reactor design calculator to size and analyze cstr, pfr, and batch reactors based on reaction kinetics and process requirements. calculate reactor volumes, residence times, conversion rates, and optimize reaction conditions for chemical processes. This equation can then be rearranged to find the volume of the cstr based on the flow rates and the reaction rate: from the definition of conversion, fa = fao(1 x) or fao fa = faox, so the equation can be rewritten:.

Cstr Design Equation Residence Time Tessshebaylo Advanced reactor design calculator to size and analyze cstr, pfr, and batch reactors based on reaction kinetics and process requirements. calculate reactor volumes, residence times, conversion rates, and optimize reaction conditions for chemical processes. This equation can then be rearranged to find the volume of the cstr based on the flow rates and the reaction rate: from the definition of conversion, fa = fao(1 x) or fao fa = faox, so the equation can be rewritten:.
