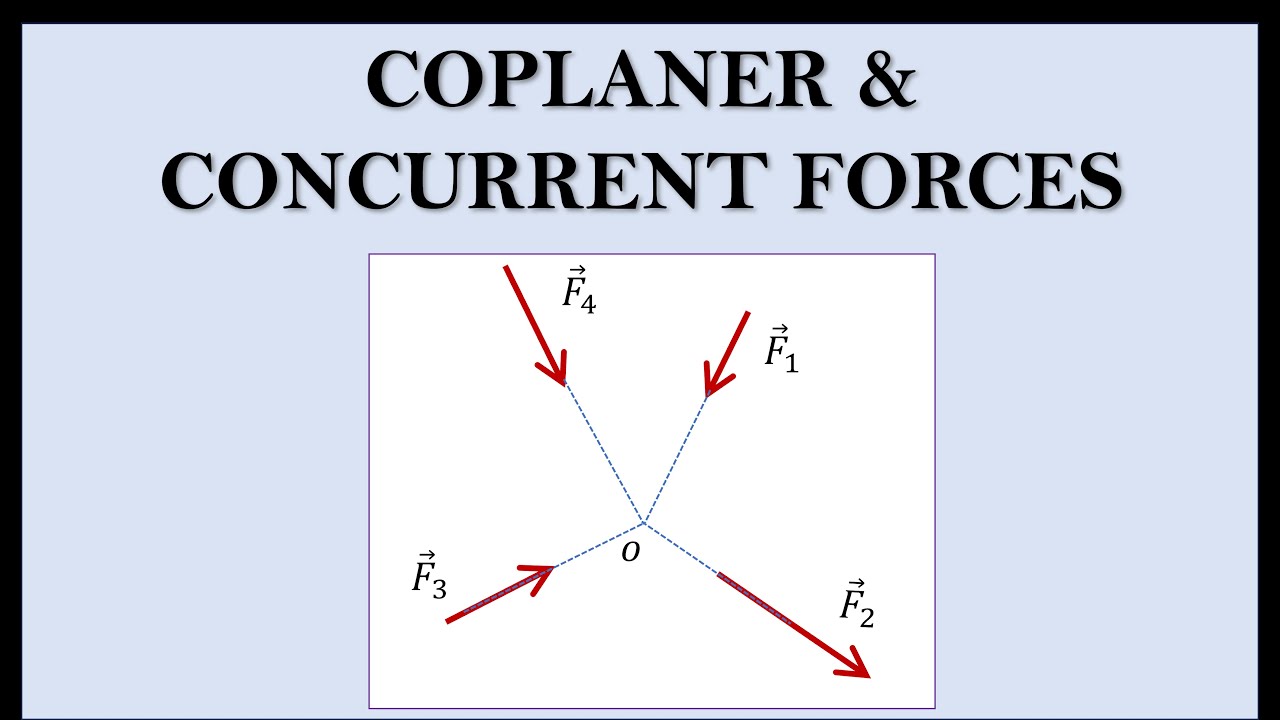

Coplanar Concurrent Forces Pdf Key concepts include the parallelogram law, resolution of forces, triangle law, and polygon law related to these forces. download as a pptx, pdf or view online for free. Coplanar concurrent forces free download as powerpoint presentation (.ppt .pptx), pdf file (.pdf), text file (.txt) or view presentation slides online. this document discusses coplanar concurrent forces, which are forces that meet at one point and act in the same plane.
Coplanar Concurrent Forces Pptx The resultant of a concurrent, coplanar force system is a single force through the point of concurrence. when this resultant force is zero, the body on which the force system acts is in equilibrium. the equations necessary to ensure a zero resultant are the equations of equilibrium. Learn the laws and conditions of equilibrium in coplanar force systems, including lami's theorem and the law of superposition. explore free body diagrams and reactions at different supports. • however, in many cases, the lines of action of three or more forces may intersect at a single point, and can form a system of concurrent forces. • in this chapter we are going to discuss these type of coplanar concurrent forces. Component of a force, in simple terms, is the effect of a force in a certain direction. a force can be split into infinite number of components along infinite directions.
Coplanar Concurrent Forces Pptx • however, in many cases, the lines of action of three or more forces may intersect at a single point, and can form a system of concurrent forces. • in this chapter we are going to discuss these type of coplanar concurrent forces. Component of a force, in simple terms, is the effect of a force in a certain direction. a force can be split into infinite number of components along infinite directions. The four coplanar forces are acting at a point as shown in fig. determine the resultant in magnitude and direction. find the resultant force for the following figure. five forces acting on a particle is shown in following figure. locate the resultant force. It states that the algebraic sum of moments due to all forces acting on an object about any point is equal to the moment of their resultant about the same point. 3) there are analytical and graphical methods to find the resultant force of a coplanar concurrent forces system, including the parallelogram law, resolution of forces, triangle law, and polygon law of forces. download as a pptx, pdf or view online for free. Module 2 free download as powerpoint presentation (.ppt .pptx), pdf file (.pdf), text file (.txt) or view presentation slides online.
