Control Systems Frequency Response Analysis Pdf Electrical Remember: the main objective is to assess design the properties of the closed loop system by exploiting the knowledge of the open loop system, and avoiding complex calculations. In the final two sections of the course, we’ll learn how to do the same using the open loop frequency response objectives: review the relationship between a system’s frequency response and its transient response determine static error constants from the open loop frequency response.
Linear Systems Frequency Response Analysis Pdf Decibel Control Theory Control systems frequency response analysis free download as pdf file (.pdf), text file (.txt) or read online for free. The steady state response of a system for an input sinusoidal signal is known as the frequency response. in this chapter, we will focus only on the steady state response. Frequency response concepts and techniques play an important role in control system design and analysis. the block diagram of a general feedback control system is shown in fig. 14.1. where g gvg pg m. evaluate closed loop stability and characterize the output response for a sustained disturbance. A control system is a physical system as it is a collection of physical objects connected through to serve an objective. the system can be electrical, mechanical or electromechanical.
Frequency Response Analysis Pdf Frequency response concepts and techniques play an important role in control system design and analysis. the block diagram of a general feedback control system is shown in fig. 14.1. where g gvg pg m. evaluate closed loop stability and characterize the output response for a sustained disturbance. A control system is a physical system as it is a collection of physical objects connected through to serve an objective. the system can be electrical, mechanical or electromechanical. Frequency domain specifications for a control system will be examined. bode plots and their construction using asymptotic approximations will be presented. in frequency response analysis of control systems, the steady state response of the system to sinusoidal input is of interest. This document presents an analysis of frequency response for control systems, specifically focusing on second order closed loop transfer functions. it discusses the implications of sinusoidal inputs on output characteristics, detailing magnitude and phase response in relation to normalized frequency. In these systems, dynamics play a prominent role. for the derivation of the frequency response of high order systems, the frequency response of simpler systems is utilized. Calculate the peak amplitude (mp), frequency (ωp) at which mp is occurred and the band width (bw) of the closed loop frequency response. then give a free hand sketch for the closed loop frequency response.
Control Systems K Wiki Frequency Response Analysis Pdf Frequency domain specifications for a control system will be examined. bode plots and their construction using asymptotic approximations will be presented. in frequency response analysis of control systems, the steady state response of the system to sinusoidal input is of interest. This document presents an analysis of frequency response for control systems, specifically focusing on second order closed loop transfer functions. it discusses the implications of sinusoidal inputs on output characteristics, detailing magnitude and phase response in relation to normalized frequency. In these systems, dynamics play a prominent role. for the derivation of the frequency response of high order systems, the frequency response of simpler systems is utilized. Calculate the peak amplitude (mp), frequency (ωp) at which mp is occurred and the band width (bw) of the closed loop frequency response. then give a free hand sketch for the closed loop frequency response.

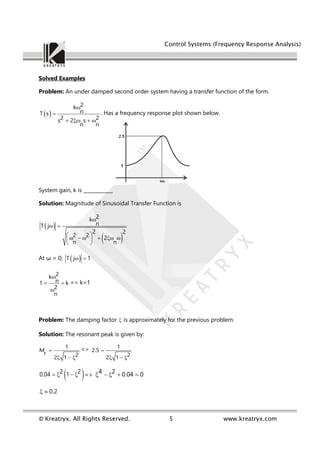

Control Systems K Wiki Frequency Response Analysis Pdf In these systems, dynamics play a prominent role. for the derivation of the frequency response of high order systems, the frequency response of simpler systems is utilized. Calculate the peak amplitude (mp), frequency (ωp) at which mp is occurred and the band width (bw) of the closed loop frequency response. then give a free hand sketch for the closed loop frequency response.
