Class A Amplifier Efficiency Formula In Excel Enter the amplifier output power and the amplifier input power into the calculator to determine the amplifier efficiency. Efficiency ( h ) of an amplifier is defined as the ratio of ac output power (power delivered to load) to dc input power . as we will see, certain amplifier configurations have much higher efficiency ratings than others. this is primary consideration when deciding which type of power amplifier to use for a specific application.

Class A Amplifier Efficiency Formula In Excel What is a class a amplifier? the main function of the power amplifier, which are also known as a “large signal amplifier” is to deliver power, which is the product of voltage and current to the load. Among the different amplifier classifications, classes a, b, and c are widely used, each offering unique advantages and challenges. in this blog, we will explore the key characteristics of these amplifier classes, their operational principles, and efficiency calculations. How to evaluate efficiency of class a using this online evaluator? to use this online evaluator for efficiency of class a, enter output voltage (vout) & drain voltage (vdrain) and hit the calculate button. There are several ways of expressing amplifier efficiency depending on how the rf input power is treated. one measure of efficiency of a circuit is the useful output power divided by the input power, and considers the contribution of the rf input power.

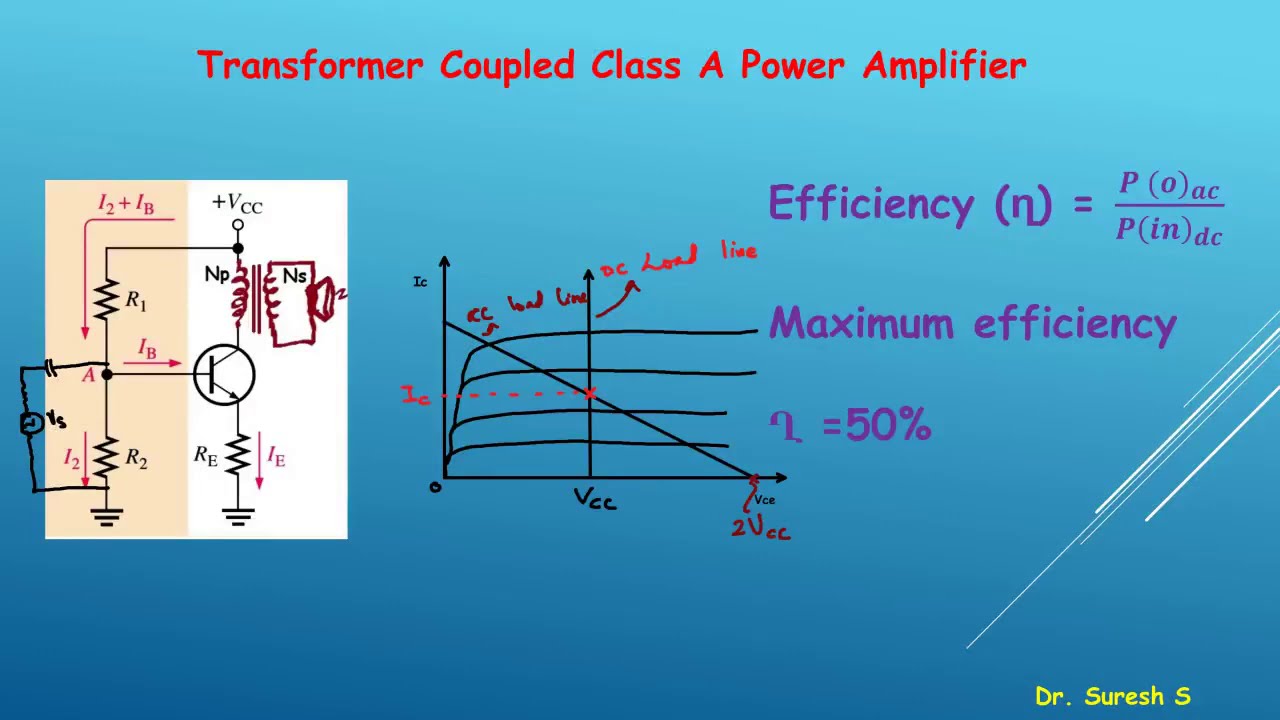

Amplifier Efficiency Formula At Sergio Hasting Blog How to evaluate efficiency of class a using this online evaluator? to use this online evaluator for efficiency of class a, enter output voltage (vout) & drain voltage (vdrain) and hit the calculate button. There are several ways of expressing amplifier efficiency depending on how the rf input power is treated. one measure of efficiency of a circuit is the useful output power divided by the input power, and considers the contribution of the rf input power. Here we are going to explain the efficiency equation, advantages, and disadvantages of class a amplifier in detail. it has high fidelity and totally immune to crossover distortion. The document explains class a operation and how to calculate the amplifier's power conversion efficiency, which is maximally 25%. it provides instructions to construct the circuit, make measurements of various voltage and current values, and calculate the efficiency. Understanding the maximum efficiency of a class a amplifier is crucial for electronic circuit design, especially in power amplifier applications. an amplifier's efficiency indicates how effectively it converts dc input power into useful ac output power delivered to the load. We have represented the whole power flow in the following diagram. this class a power amplifier can amplify small signals with least distortion and the output will be an exact replica of the input with increased strength. let us now try to draw some expressions to represent efficiencies.
