Beam Deflection By Double Integration Method Pdf Beam Structure Welcome to our beam deflection series in this lecture, part 1: theory & worked example, we introduce the double integration method for calculating beam slope and deflection. The document outlines the course structure for bsce 3 cien 306 structural theory, focusing on methods for analyzing beam deflection, particularly the double integration method.
The Double Integration Method For Determining Slope And Deflection This method entails obtaining the deflection of a beam by integrating the differential equation of the elastic curve of a beam twice and using boundary conditions to determine the constants of integration. The double integration method is a powerful tool in solving deflection and slope of a beam at any point because we will be able to get the equation of the elastic curve. The double integration method, also known as macaulay’s method is a powerful tool in solving deflection and slope of a beam at any point because we will be able to get the equation of the elastic curve. Find the equation of the elastic curve for the simply supported beam subjected to the uniformly distributed load using the double integration method. find the maximum deflection.
Statically Indeterminate Beam Deflection And Slope Example Double The double integration method, also known as macaulay’s method is a powerful tool in solving deflection and slope of a beam at any point because we will be able to get the equation of the elastic curve. Find the equation of the elastic curve for the simply supported beam subjected to the uniformly distributed load using the double integration method. find the maximum deflection. Here's a step by step discussion of the double integration method in the context of beam deflection: 1. differential equation for beam deflection: the starting point for the double integration method is the differential equation that relates the curvature of the beam to the applied loads. The steps in solving deflection by double – integration is discussed in the following examples. example 1: for the beam shown in figure st – 032, e = 70 gpa. compute the deflection at a point 2 m from the left support. Use the double integration method to determine slope and deflection equations for a cantilever beam with a concentrated load at the tip. Several examples are provided to demonstrate solving for the slope and maximum deflection of beams under different loading conditions using this method. download as a ppt, pdf or view online for free.

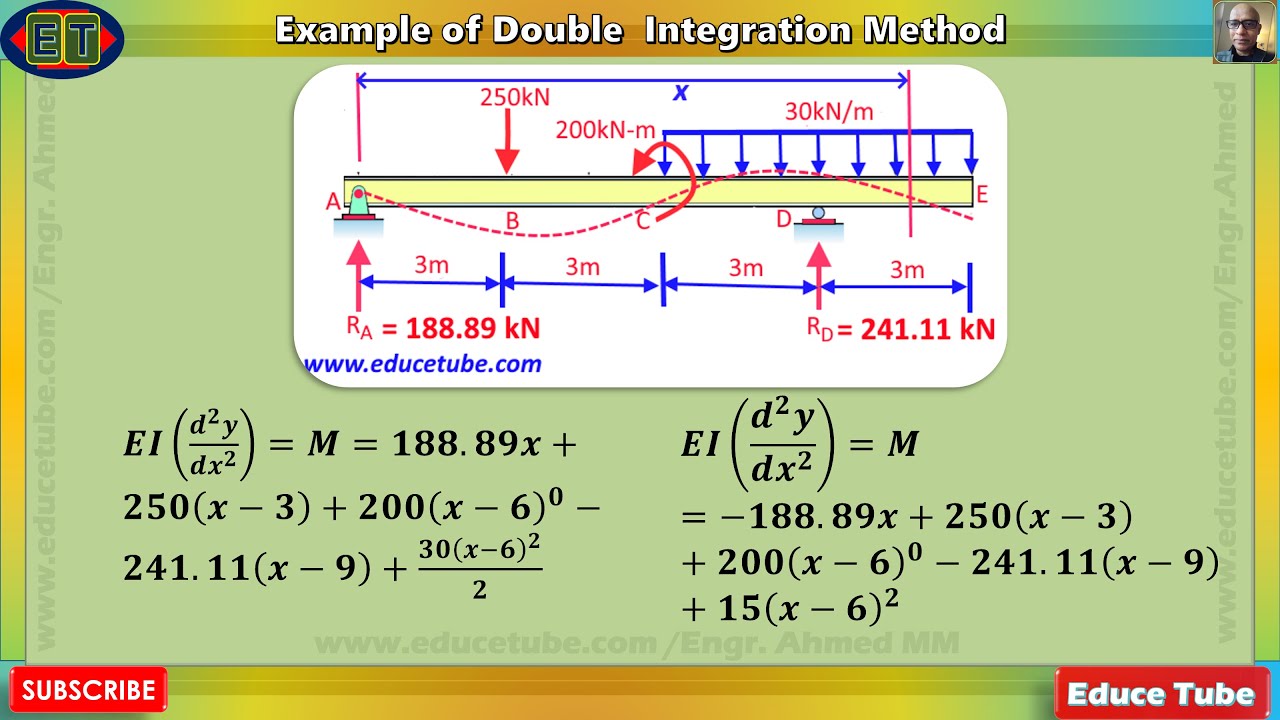

Double Integration Method Beam Deflection Calculator Design Talk Here's a step by step discussion of the double integration method in the context of beam deflection: 1. differential equation for beam deflection: the starting point for the double integration method is the differential equation that relates the curvature of the beam to the applied loads. The steps in solving deflection by double – integration is discussed in the following examples. example 1: for the beam shown in figure st – 032, e = 70 gpa. compute the deflection at a point 2 m from the left support. Use the double integration method to determine slope and deflection equations for a cantilever beam with a concentrated load at the tip. Several examples are provided to demonstrate solving for the slope and maximum deflection of beams under different loading conditions using this method. download as a ppt, pdf or view online for free.
Double Integration Method Beam Deflection Calculator Design Talk Use the double integration method to determine slope and deflection equations for a cantilever beam with a concentrated load at the tip. Several examples are provided to demonstrate solving for the slope and maximum deflection of beams under different loading conditions using this method. download as a ppt, pdf or view online for free.
