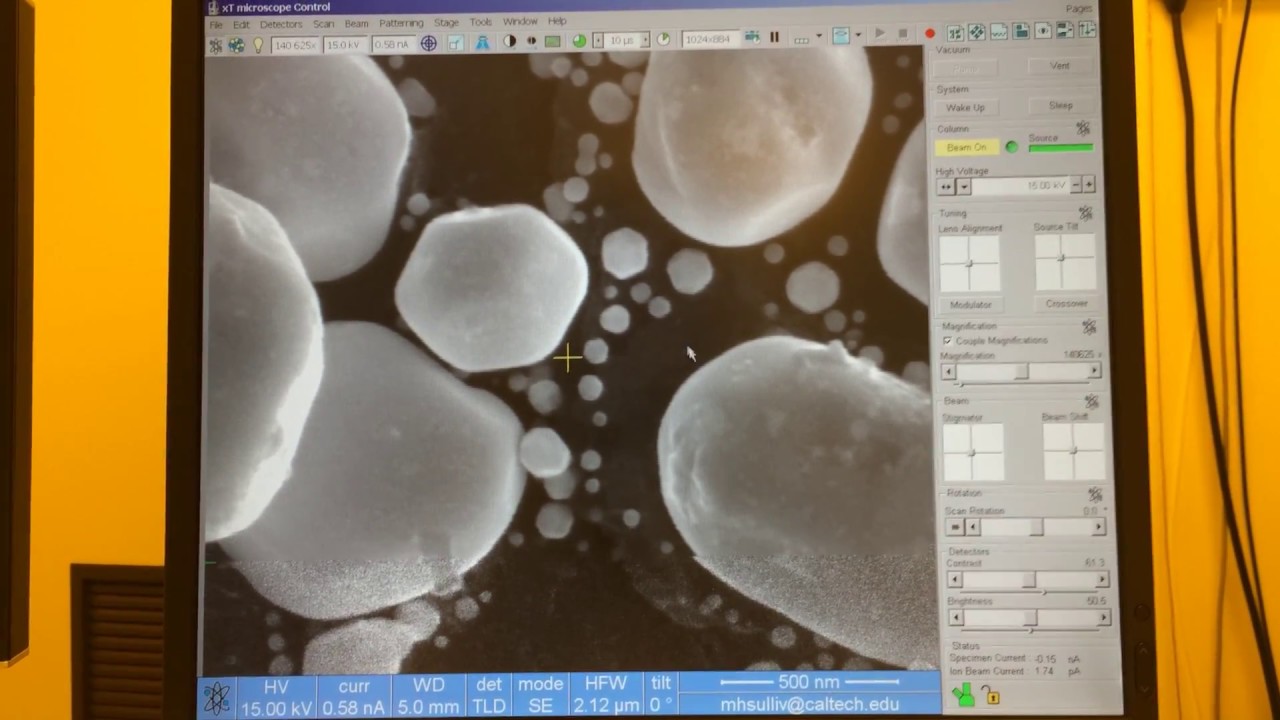

Basic Sem Alignment Source Tilt Focus Astigmatism Lens Alignment Put simply, if while focusing the image is stretching, you must fix astigmatism; if while focusing the image is shifting, you must fix the lens alignment. In this alignment we introduce two new components, an astigmatic lens, and a stigmator. in our model, an astigmatic lens is simply a lens where the focal length can be adjusted on each axis. this captures the behaviour of a real lens in a tem, which cannot perfectly focus in both x & y.

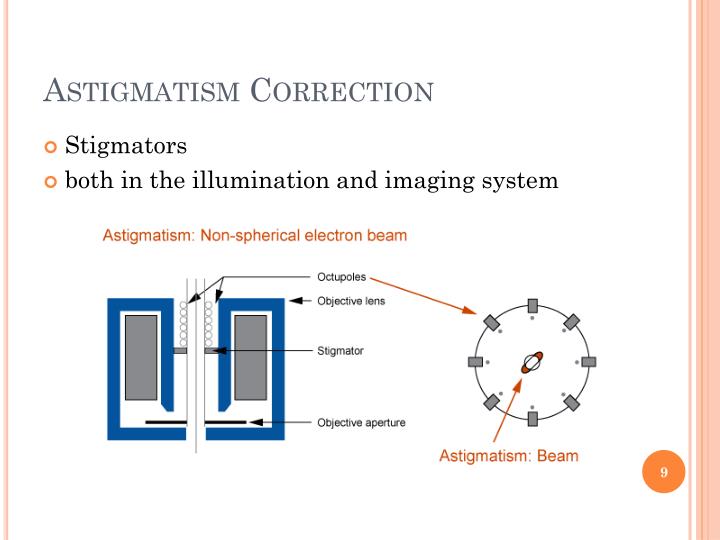

Ppt Sem Lens Aberration Astigmatism Powerpoint Presentation Id 2524620 You may also focus your specimen using wobbler method or minimum contrast method, and correct objective lens astigmatism using amorphous carbon film (which is useful to record a high resolution image). Tilting the lens from normal incidence should never be considered as a valid means of alignment of its focus. always place the lens as perpendicular to the optical axis as possible and align its xy position. Aligning milly’s electron beam is tricky business. it’s a process involving hours (or even days!) of pain and uncertainty that might, just possibly, result in a better microscope imaging experience. the procedure below is what i’ve been able to cobble together from a variety of sources. Here, we introduce deepfocus, a purely data driven method for aberration correction in scanning electron microscopy.
Optical Lens Alignment Aligning milly’s electron beam is tricky business. it’s a process involving hours (or even days!) of pain and uncertainty that might, just possibly, result in a better microscope imaging experience. the procedure below is what i’ve been able to cobble together from a variety of sources. Here, we introduce deepfocus, a purely data driven method for aberration correction in scanning electron microscopy. Once the sem is aligned, you should need only small adjustments unless some beam settings are changed, such as the accelerating voltage and probe current or spot size. Learn the basics of our lens alignment system technology. Most sems will have a "wobble" mode that automatically changes the focus back and forth (this mode may also be called "lens modulation" or something similar). while this mode is active, the image will swing back and forth on the screen if the aperture is poorly centered. Just like in other forms of microscopy, the beam also needs to be corrected for any astigmatism, and the focal point set correctly. the following sections explain the basic instrument alignments needed before taking an image.
Optical Lens Alignment Once the sem is aligned, you should need only small adjustments unless some beam settings are changed, such as the accelerating voltage and probe current or spot size. Learn the basics of our lens alignment system technology. Most sems will have a "wobble" mode that automatically changes the focus back and forth (this mode may also be called "lens modulation" or something similar). while this mode is active, the image will swing back and forth on the screen if the aperture is poorly centered. Just like in other forms of microscopy, the beam also needs to be corrected for any astigmatism, and the focal point set correctly. the following sections explain the basic instrument alignments needed before taking an image.
Optical Lens Alignment Most sems will have a "wobble" mode that automatically changes the focus back and forth (this mode may also be called "lens modulation" or something similar). while this mode is active, the image will swing back and forth on the screen if the aperture is poorly centered. Just like in other forms of microscopy, the beam also needs to be corrected for any astigmatism, and the focal point set correctly. the following sections explain the basic instrument alignments needed before taking an image.
