Electric Field Lines Pdf Electric Field Electric Charge What are electric field lines or lines of force. learn their properties and characteristics. also, learn how to draw them along with rules and a few diagrams. In a uniform electric field, field lines are evenly spaced and parallel to each other. in a non uniform electric field, the field lines are closer together where the field is stronger and farther apart where it is weaker.

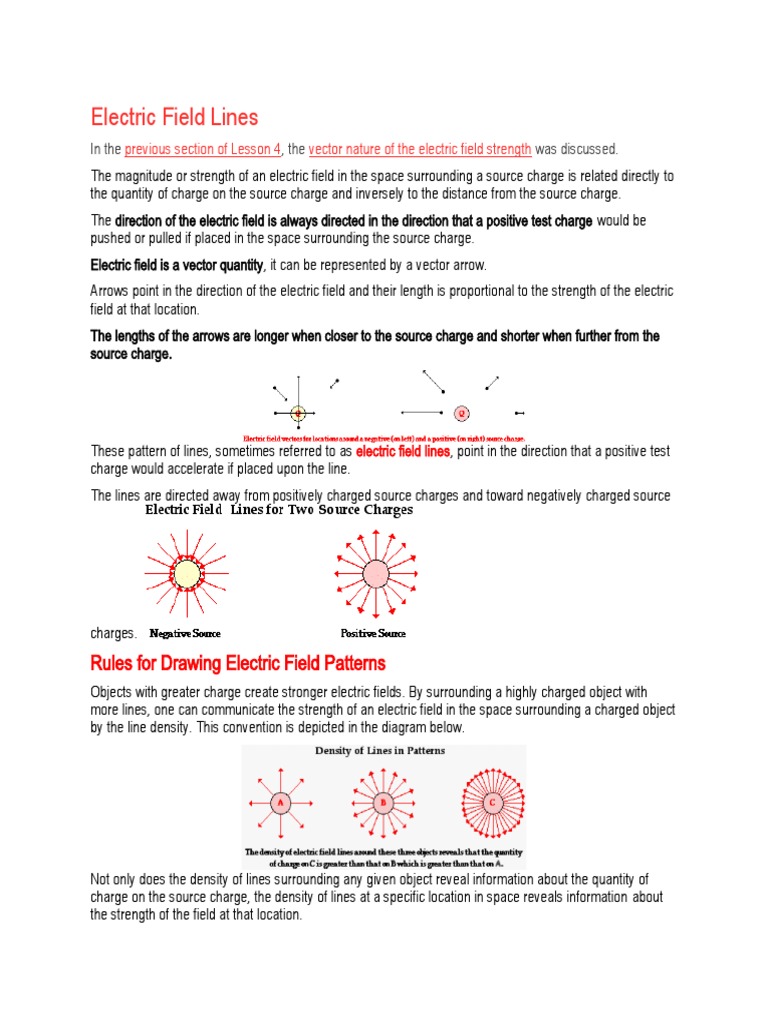

1 3 Electric Field Lines Pdf A pattern of several lines are drawn that extend between infinity and the source charge or from a source charge to a second nearby charge. the pattern of lines, sometimes referred to as electric field lines, point in the direction that a positive test charge would accelerate if placed upon the line. Sketch the electric eld lines between the two point charges in the diagram below. always label the arrows on the eld lines! the lines must also touch the surface of the source charge or plates and they must never cross. Arrange positive and negative charges in space and view the resulting electric field and electrostatic potential. plot equipotential lines and discover their relationship to the electric field. create models of dipoles, capacitors, and more!. Electric field lines: drawing and interpretation for ap physics c, covering key concepts, common mistakes, and tips for success.
Lecture03 Part 1 Electric Field Lines Pdf Arrange positive and negative charges in space and view the resulting electric field and electrostatic potential. plot equipotential lines and discover their relationship to the electric field. create models of dipoles, capacitors, and more!. Electric field lines: drawing and interpretation for ap physics c, covering key concepts, common mistakes, and tips for success. Draw the appropriate number of field lines leaving or entering this circle: for q1 and q2, if four lines leave q1 = 5, then four other lines must enter the circle at infinity since qtotal = 5. In a uniform electric field, the same thing happens: 1. constant velocity: the particle keeps its original velocity in the direction perpendicular to the field lines. 2. constant acceleration: the particle accelerates in the direction of the electric force (along the field lines). How can we detect and measure the electric fields around charges? the easiest way is to place another known charge near by and see how it reacts. we do need to be careful since both the charges have their own fields, so that would affect your results. It explains concepts such as electric field lines, coulomb's law, and the motion of charged particles in uniform electric fields. additionally, it includes worked examples to illustrate calculations related to electric forces and field strengths.
