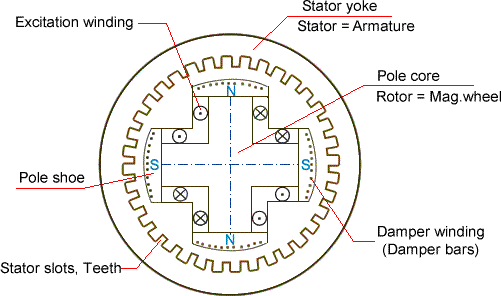

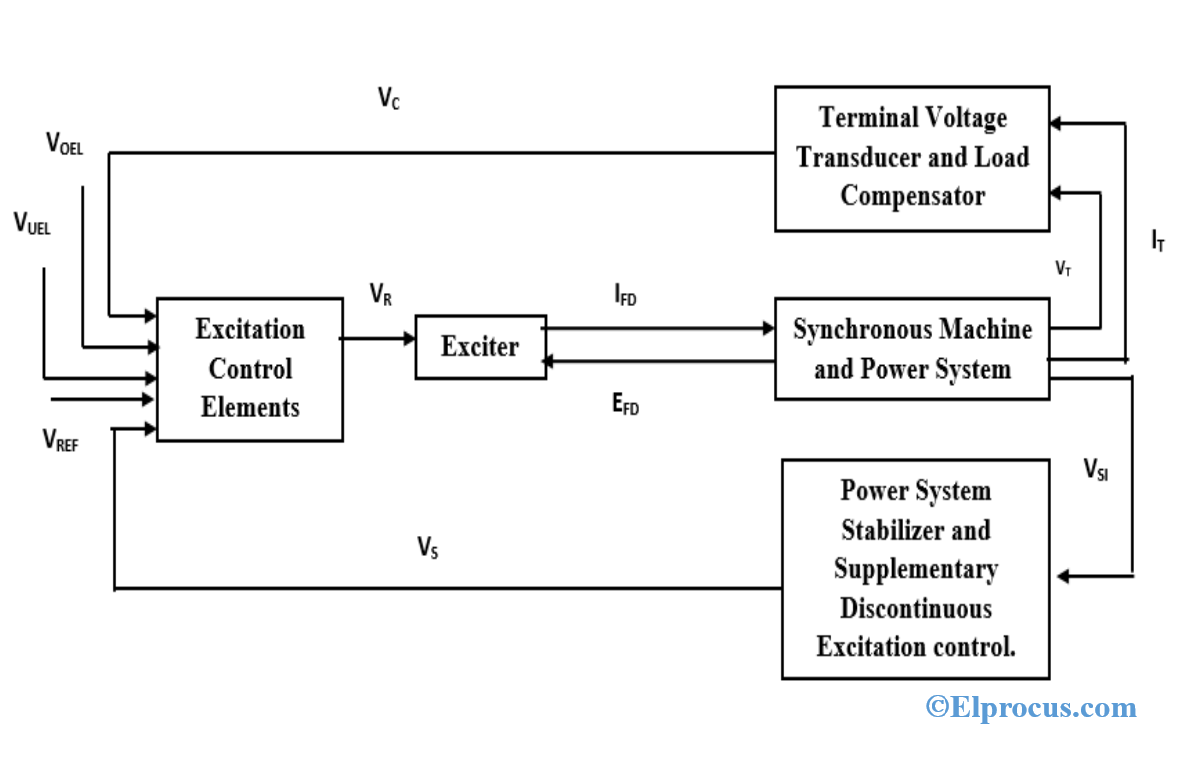

Ac Synchronous Generator Circuit Diagram An ac synchronous generator circuit works by converting mechanical energy from a prime mover, such as a wind turbine, into electrical energy. it consists of three main parts: an exciter, a stator, and a rotor. In other words, increasing the field current in a synchronous generator operating in parallel with an infinite bus increases the reactive power output of the generator.

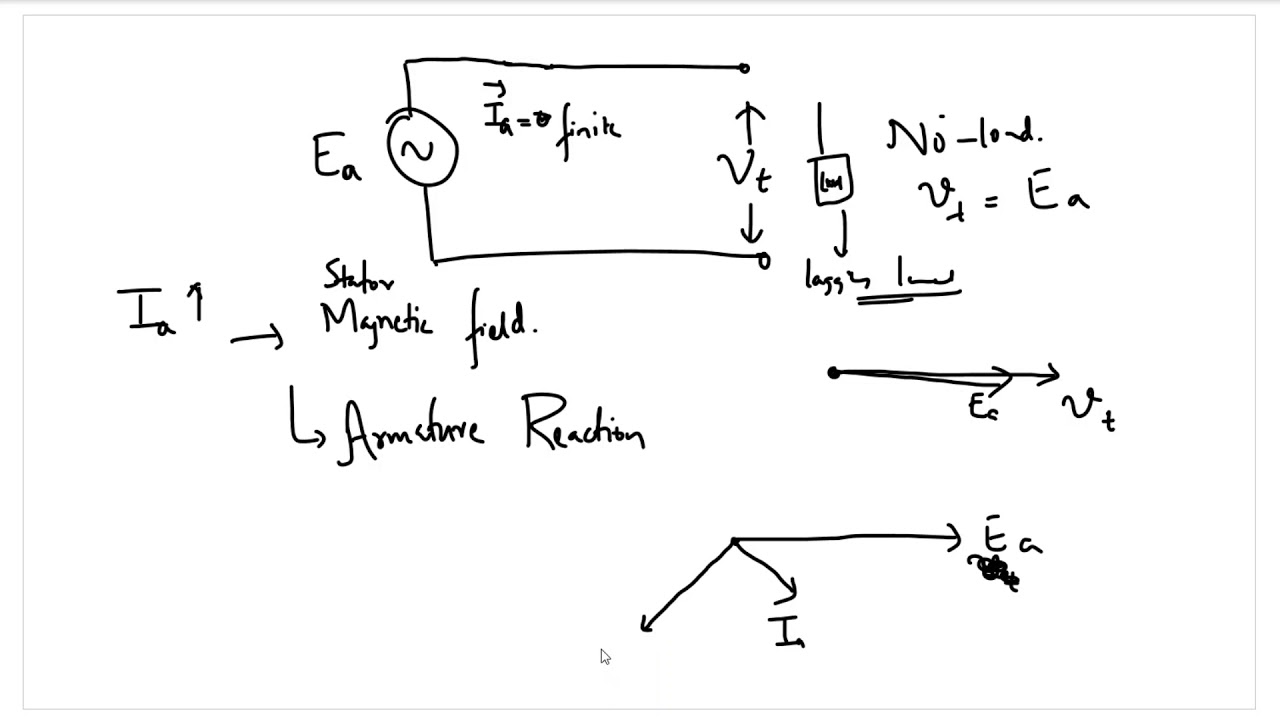

Ac Synchronous Generator Circuit Diagram Since the voltages in a synchronous generator are ac voltages, they are usually expressed as phasors. a vector plot of voltages and currents within one phase is called a phasor diagram. What is a synchronous generator? a synchronous generator is an ac generator in which the output is synchronized to the position of the rotor. the frequency of the voltage produced by the synchronous generator depends only on the speed at which its shaft is turned and the number of poles it has. By using the equivalent circuit, the phasor diagram of the alternator can be drawn as given below. the phasor diagram of an alternator supplying a load of lagging power factor is shown in figure 3. here, the power factor is φ lagging. The document discusses the equivalent circuit and phasor diagrams of synchronous generators or alternators, detailing their behavior under different power factor loads.
Ac Synchronous Generator Circuit Diagram By using the equivalent circuit, the phasor diagram of the alternator can be drawn as given below. the phasor diagram of an alternator supplying a load of lagging power factor is shown in figure 3. here, the power factor is φ lagging. The document discusses the equivalent circuit and phasor diagrams of synchronous generators or alternators, detailing their behavior under different power factor loads. Explore the circuit diagram of a synchronous generator and learn how it works to produce electrical power efficiently. This page contains a simulation (fig. 1) of a pelton type hydraulic turbine, a synchronous generator (alternator) with separate excitation, synchronization devices (synchroscope, indicator lights, voltmeters) and coupling switches. The chapter then covers topics like the internal generated voltage, effect of armature reaction, and how to represent the generator using an equivalent circuit model that accounts for factors influencing the terminal voltage like synchronous reactance. A small ac generator called a brushless exciter has its armature circuit mounted on the shaft of the rotor, and its dc field circuit mounted on the stator. the generated ac current is then rectified directly on the rotor using a 3 phase rectifier.
Ac Synchronous Generator Circuit Diagram Explore the circuit diagram of a synchronous generator and learn how it works to produce electrical power efficiently. This page contains a simulation (fig. 1) of a pelton type hydraulic turbine, a synchronous generator (alternator) with separate excitation, synchronization devices (synchroscope, indicator lights, voltmeters) and coupling switches. The chapter then covers topics like the internal generated voltage, effect of armature reaction, and how to represent the generator using an equivalent circuit model that accounts for factors influencing the terminal voltage like synchronous reactance. A small ac generator called a brushless exciter has its armature circuit mounted on the shaft of the rotor, and its dc field circuit mounted on the stator. the generated ac current is then rectified directly on the rotor using a 3 phase rectifier.
