4 Bar Rrpr Simulator Applet The 4 bar rrrp mechanism (and its inversions rrpr or rprr) is another basic mechanism in studies on kinematics. it is also widely used in various forms because of the relative simplicity of design and manufacture. It is denoted as rrrp, prrr, rprr, or rrpr, constructed from four links connected by three revolute joints and one prismatic joint. the slider crank linkage (rrrp) is one type of arrangement such that one link is a crank, which is then connected to a slider by a connecting rod.

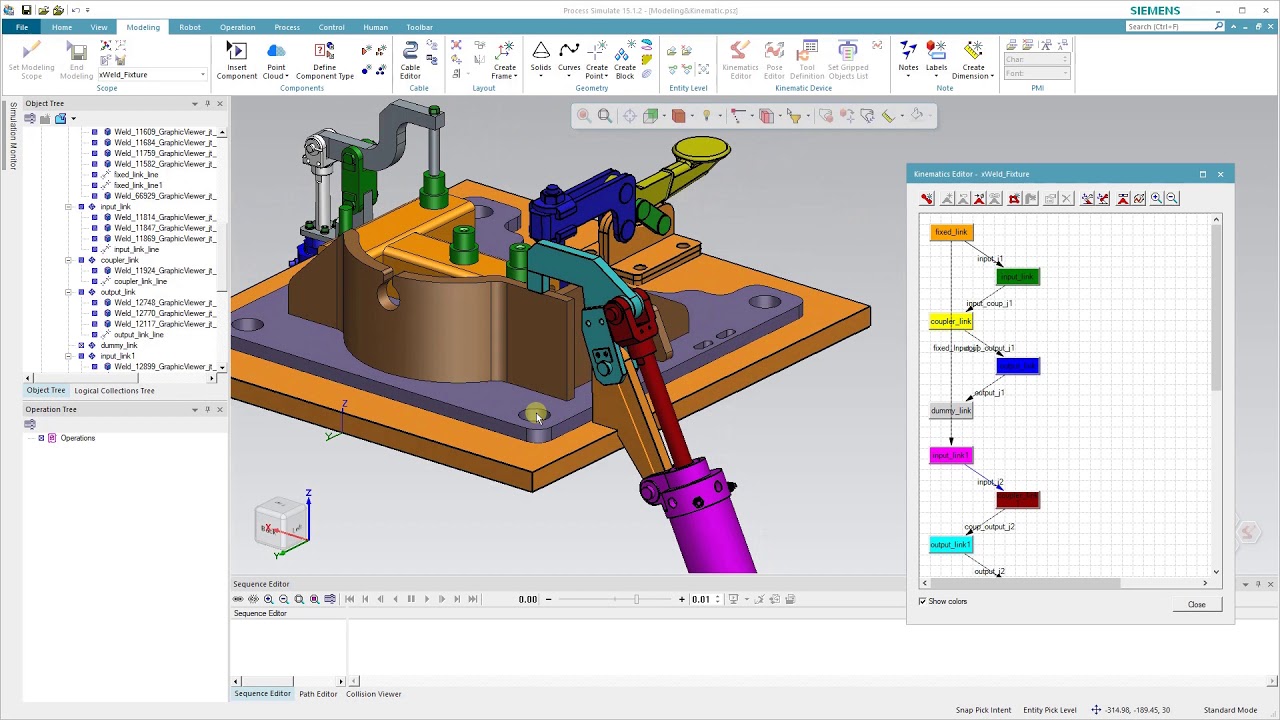

Virtual Labs : inverted slider crank (rrpr). We read every piece of feedback, and take your input very seriously. this commit does not belong to any branch on this repository, and may belong to a fork outside of the repository. cannot retrieve latest commit at this time. Process simulate 15 activity guide. Position analysis of a 4 bar rprr grashofian inverted slider crank mechanism aim of the experiment to study the position analysis of a 4 bar rprr grashofian inverted slider crank mechanism.

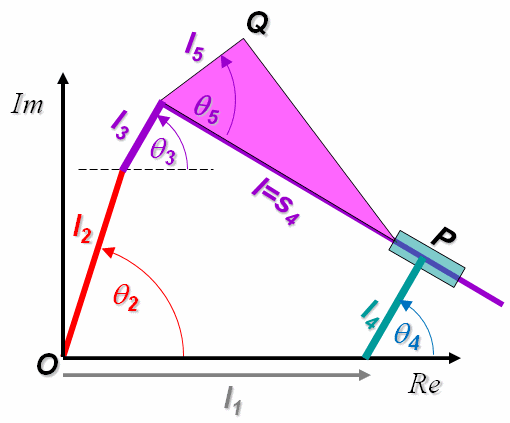

Virtual Labs Process simulate 15 activity guide. Position analysis of a 4 bar rprr grashofian inverted slider crank mechanism aim of the experiment to study the position analysis of a 4 bar rprr grashofian inverted slider crank mechanism. Virtual labs mechanical engineering kinematics and dynamics of mechanisms lab position analysis of a 4 bar rprr grashofian inverted slider crank mechanism. The oscillating slide inversion of the slider crank mechanism, commonly symbolized rprr, is widely used to convert the displacement of an input linear motor (either electric, hydraulic or pneumatic), into the swing motion of a rocker. The oscillating slide inversion of the slider crank mechanism, commonly symbolized rprr, is widely used to convert the displacement of an input linear motor (either electric, hydraulic or. Graphical velocity and acceleration analysis of a 4 bar rprr linkage free download as powerpoint presentation (.ppt .pptx), pdf file (.pdf), text file (.txt) or view presentation slides online.
