4 Bit Ring Counter Circuit Diagram It is also known as a switch tail ring counter, walking ring counter, or johnson counter. it connects the complement of the output of the last shift register to the input of the first register and circulates a stream of ones followed by zeros around the ring. A ring counter is a special type of application of the serial in serial out shift register. the only difference between the shift register and the ring counter is that the last flip flop outcome is taken as the output in the shift register.
4 Bit Ring Counter Circuit Diagram If you're interested in designing and building your own counter circuits, then a 4 bit ring counter circuit diagram is the perfect starting point. ring counters are ideal for counting events or signals electronically, such as in digital clocks or frequency counters. It includes the aim, learning objectives, required components, ic pinout, theory of operation for each counter type with diagrams and tables summarizing their behavior. • fig. 6.6.1 shows the logic diagram for four bit ring counter. • the q output of each stage is connected to the d input of the next stage and the output of last stage is fed back to the input of first stage. A 4 bit johnson ring counter passes blocks of four logic “0” and then four logic “1” thereby producing an 8 bit pattern. as the inverted output q is connected to the input d this 8 bit pattern continually repeats.

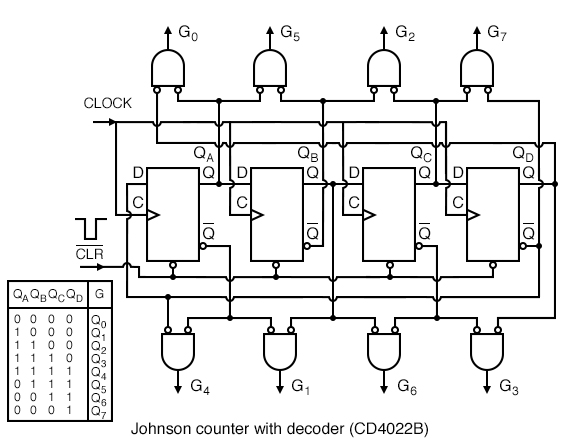

4 Bit Ring Counter Circuit Diagram • fig. 6.6.1 shows the logic diagram for four bit ring counter. • the q output of each stage is connected to the d input of the next stage and the output of last stage is fed back to the input of first stage. A 4 bit johnson ring counter passes blocks of four logic “0” and then four logic “1” thereby producing an 8 bit pattern. as the inverted output q is connected to the input d this 8 bit pattern continually repeats. A project using cadence virtuoso schematic diagram of not gate symbol of not gate schematic diagram of nand gate symbol of nand gate making and gate using nand gate & not gate symbol of and gate schematic diagram of or gate symbol of or gate schematic diagram of d latch symbol of d flip flop (2 d latches used) schematic diagram of 4 bit ring. In a 4 bit ring counter, four flip flops are connected in a loop. the output of one flip flop is connected to the input of the next. the last flip flop's output is connected to the input of the first. when the ring counter is initialized, only one flip flop is set to '1', and the others are '0'. Draw the circuit diagram for a 4 bit twisted ring counter with 4 d flip flops connected in series. connect the output of the last flip flop to the input of the first flip flop through an inverter. create the truth table showing the sequence of states for each clock pulse. The state diagram of the 4 bit ring counter is shown in above picture. it denotes that the position of the preset digit (in this case preset digit is 1) is changing its position from lsb to msb, for one clock signal.
