4 Bit Even Parity Checker Pdf A combinational circuit that checks and verifies the correctness of the transmitted data by analyzing the parity bit is called a parity checker. the main function of a parity checker is to detect errors that can occur during data transmission. These 4 bits are applied as input to the parity checker circuit, which checks the possibility of error on the data. since the data is transmitted with even parity, four bits received at circuit must have an even number of 1s.

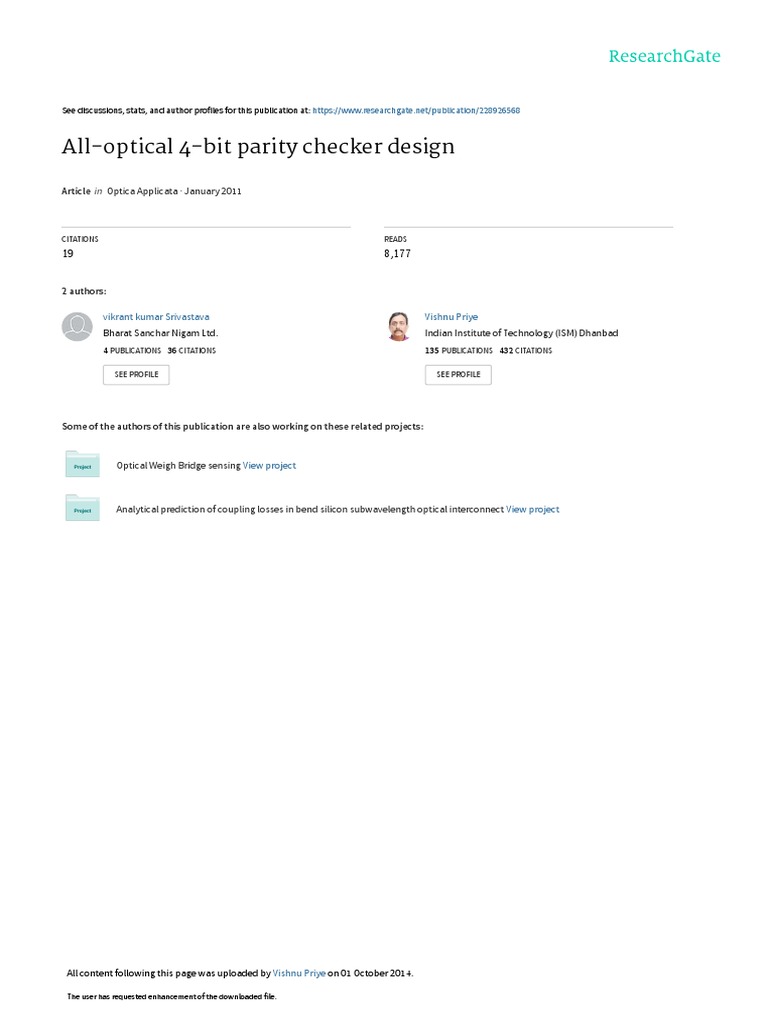

All Optical 4 Bit Parity Checker Design Optica Applicata January 2011 Users need to be registered already on the platform. note that collaboration is not real time as of now. every save overwrites the previous data. email ids: delete. are you sure you want to delete this project? delete . are you sure you want to remove this collaborator? delete . embed your circuit. The document outlines a lab manual for a digital system design course, focusing on the design of a 4 bit parity generator and checker circuit. it details the apparatus required, the theory behind parity generation for even and odd parities, and includes logic diagrams and truth tables. Fig.1: logic diagram of a 4 bit even parity checker. if any error occurs, the received message consists of odd number of 1s. the output of the parity checker is denoted by pec (parity error check). These 4 bits are applied as input to the parity checker circuit which checks the possibility of error on the data. since the data is transmitted with even parity, four bits received at circuit must have an even number of 1s. if any error occurs, the received message consists of odd number of 1s.
Chapter 7 Parity Bit Generator Checker Pdf Fig.1: logic diagram of a 4 bit even parity checker. if any error occurs, the received message consists of odd number of 1s. the output of the parity checker is denoted by pec (parity error check). These 4 bits are applied as input to the parity checker circuit which checks the possibility of error on the data. since the data is transmitted with even parity, four bits received at circuit must have an even number of 1s. if any error occurs, the received message consists of odd number of 1s. Learn about parity bit, parity generator and checker, and their functions to detect errors in data transmission. see the types, truth tables, and logic diagrams of even and odd parity generators. This work proposes a modern communication system with an all optical 4 bit parity checker circuit as an essential device within the framework of the fbg structure and cross phase modulation (xpm) based nonlinear switching performance. The proposed 4 bit parity generator is numerically simulated by solving nonlinear coupled equations that explain the cross gain modulation (xgm) effect in individual soas. Circuit design 4 bit odd parity generator and checker created by 093 aditya roshanjha with tinkercad.
Circuit Design 4 Bit Even Parity And Odd Parity Generator And Checker Learn about parity bit, parity generator and checker, and their functions to detect errors in data transmission. see the types, truth tables, and logic diagrams of even and odd parity generators. This work proposes a modern communication system with an all optical 4 bit parity checker circuit as an essential device within the framework of the fbg structure and cross phase modulation (xpm) based nonlinear switching performance. The proposed 4 bit parity generator is numerically simulated by solving nonlinear coupled equations that explain the cross gain modulation (xgm) effect in individual soas. Circuit design 4 bit odd parity generator and checker created by 093 aditya roshanjha with tinkercad.
