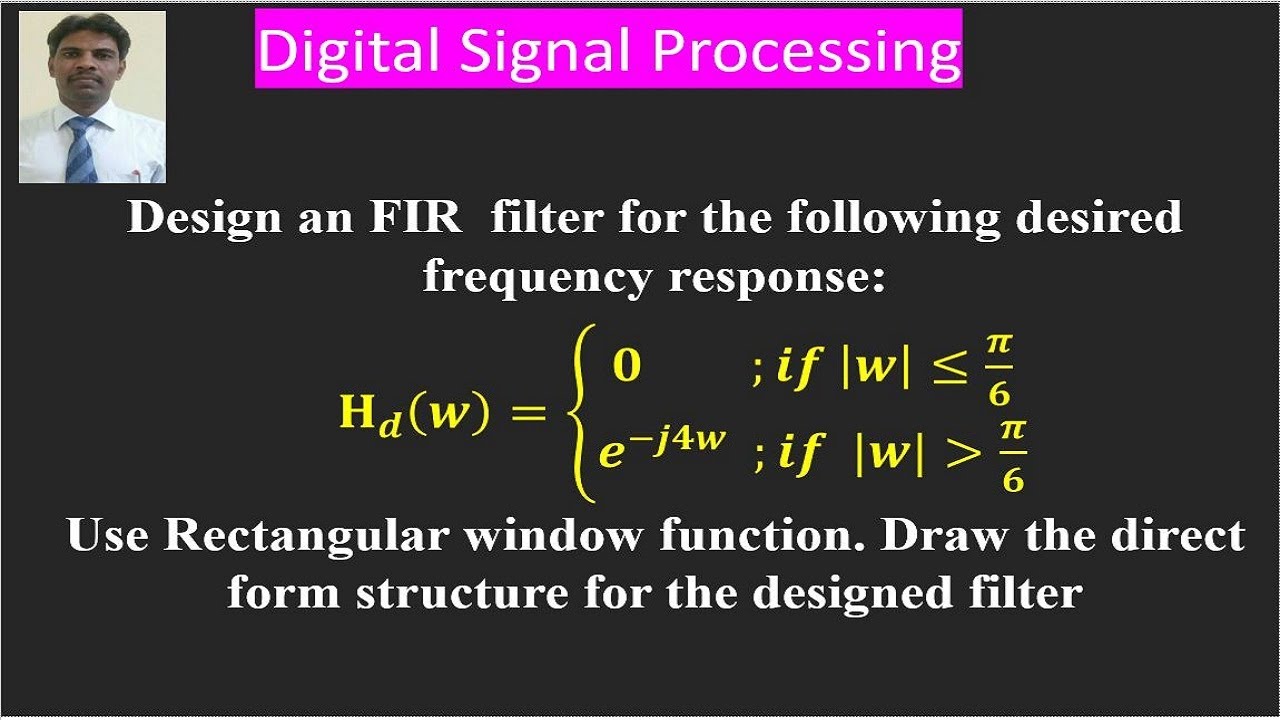

Filter Design Using Rectangular Window In Matlab Software Youtube In this lecture a rectangular window is discussed. download lecture board: drive.google file d 1pyxv more. In this article, we'll review the basic concepts in digital filter design. we'll also briefly discuss the advantages of fir filters over iir designs, e.g. stability and linear phase response. finally, we'll go over an introduction to designing fir filters via the window method.

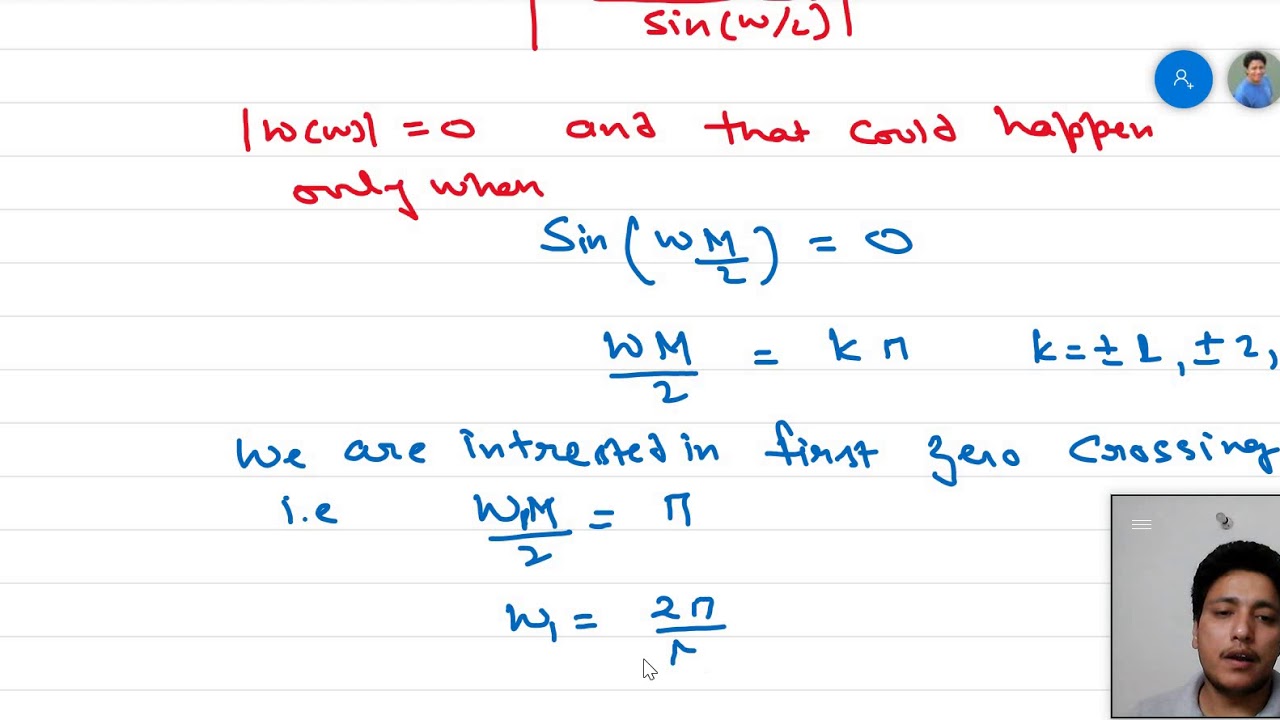

Matlab Code For Fir Filter Design Using Rectangular And Bartlett Window This document discusses the design of low pass fir digital filters using rectangular and hanning window techniques. it begins with introductions to digital signal processing, fir filters, and window functions. Ngular window where m = 7. although increasing the rectangular window length m narrows the lobe widths, areas under each lobe remains constant, thus the ripples occur more rapidly, b. t with the same amplitude. to reduce the height of the sidelobes, we will need to taper the rectangular window sm. Presented here is a c program for a fir filter design using the rectangular window technique and the rectangular window is the simplest window, equivalent to replacing all but n values of a data sequence by zeros, making it appear as though the waveform suddenly turns on and off. The window method for digital filter design is fast, convenient, and robust, but generally suboptimal. it is easily understood in terms of the convolution theorem for fourier transforms, making it instructive to study after the fourier theorems and windows for spectrum analysis.
Design Of Fir Filter Using Rectangular Window Youtube Presented here is a c program for a fir filter design using the rectangular window technique and the rectangular window is the simplest window, equivalent to replacing all but n values of a data sequence by zeros, making it appear as though the waveform suddenly turns on and off. The window method for digital filter design is fast, convenient, and robust, but generally suboptimal. it is easily understood in terms of the convolution theorem for fourier transforms, making it instructive to study after the fourier theorems and windows for spectrum analysis. In this section, the window method (fourier transform design with window functions) is developed to remedy the undesirable gibbs oscillations in the passband and stopband of the designed fir filter. How to design a low pass filter with rectangular learn more about signal processing, digital signal processing, windowing, filtering. Though being easy to implement, the rectangular window method is not really used for digital filter design, due to its low attenuation of the stopband and producing filters characterized by extreme values (e.g. sudden jump from zero at the initial sample). Matlab code for implementing fir low pass and high pass filters using the rectangular window technique. includes code snippets and output plot.
Important Short Questions And Answers Fir Filter Design In this section, the window method (fourier transform design with window functions) is developed to remedy the undesirable gibbs oscillations in the passband and stopband of the designed fir filter. How to design a low pass filter with rectangular learn more about signal processing, digital signal processing, windowing, filtering. Though being easy to implement, the rectangular window method is not really used for digital filter design, due to its low attenuation of the stopband and producing filters characterized by extreme values (e.g. sudden jump from zero at the initial sample). Matlab code for implementing fir low pass and high pass filters using the rectangular window technique. includes code snippets and output plot.
Fir Filter Design Using Rectangular Window Method Part 1 Youtube Though being easy to implement, the rectangular window method is not really used for digital filter design, due to its low attenuation of the stopband and producing filters characterized by extreme values (e.g. sudden jump from zero at the initial sample). Matlab code for implementing fir low pass and high pass filters using the rectangular window technique. includes code snippets and output plot.
