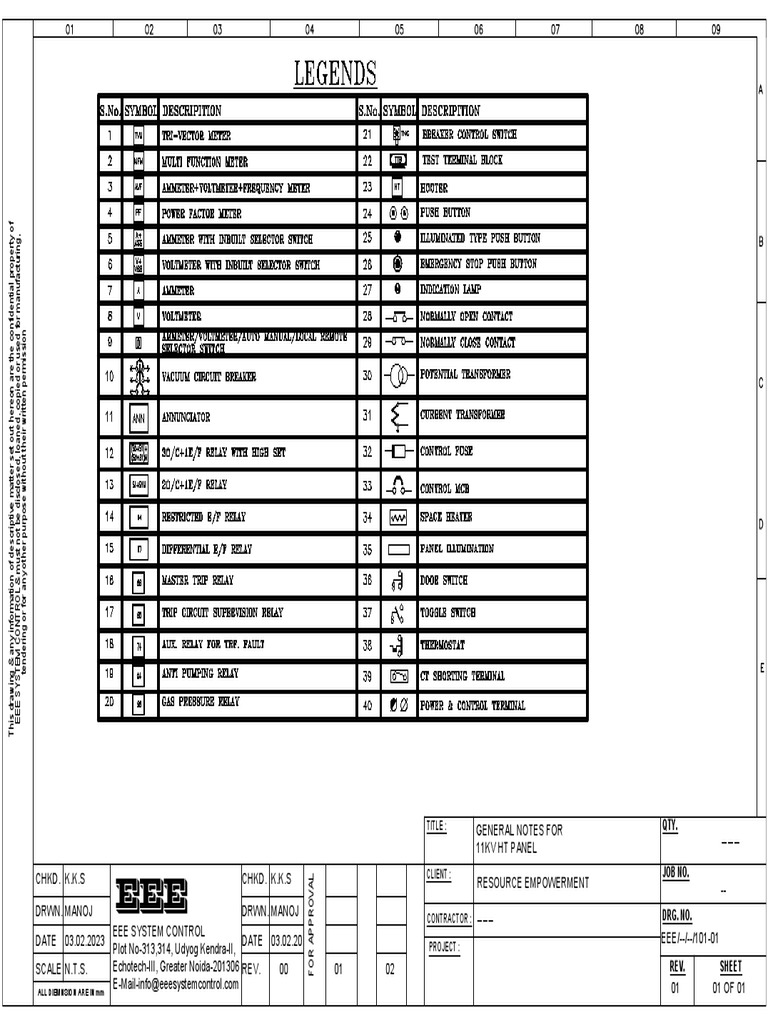

11kvht Panel 1 Incomer 3 Outgoing Pdf Switch Relay 11kvht panel (1 incomer & 3 outgoing) (2) free download as pdf file (.pdf), text file (.txt) or read online for free. this document contains confidential information belonging to eee system control regarding electrical drawings and notes. Buses shall have uniform cross section throughout the length of the panel up to the incoming feeder terminal and shall be sized to carry continuously the current specified.

250a 3 Pole Mc Switch Incomer Kit To Suit 400a Panel Boards Protek Uk Similarly isolator is interlocked with earth switch such that earth switch can be closed only when isolator is open and vice versa. this is done thru castel key as well as solenoid type magnetic lock. Technical specification for indoor ht vcb panel: 11kv, 800amp, 26.3ka. design, manufacture, testing, and supply requirements. (3) the panel offered should be suitable for capacitor connection through cable and time delay relay panels are suitable for direct switching and restrike free. The breaker and cts described under clauses 2.1 and 2.3 above and the panel board shall be so constructed as to form independent 11kv indoor switch board panel. all the panels shall be completely dust and vermin proof. the panels shall remain vermin proof, even when the breaker is taken out for maintenance.

200a 3 Pole Mc Switch Incomer Kit To Suit 400a Panel Boards Protek Uk (3) the panel offered should be suitable for capacitor connection through cable and time delay relay panels are suitable for direct switching and restrike free. The breaker and cts described under clauses 2.1 and 2.3 above and the panel board shall be so constructed as to form independent 11kv indoor switch board panel. all the panels shall be completely dust and vermin proof. the panels shall remain vermin proof, even when the breaker is taken out for maintenance. Protection relays for 11kv outgoing panel 15.1.3 relay 1 directional 3 phase over current and earth fault protection with idmt, definite time and instantaneous characteristics. Ht (high tension) panel is a high voltage (11kv 33kv) power control center where power supply is received and distributed to the feeder line or transformer with safety components as protection relay, circuit breaker, indicators, measuring meters, ct and pt. Application : mainly used for operation & protection of public, industrial and tertiary distribution of network from 3.3 kv to 36 kv. It is proposed to retro fit this existing panel with a new panel with one incoming and three out going. four numbers of vacuum circuit breakers are to be installed in the new panel, with one for incomer, three for outgoing.

160a 4 Pole Mc Switch Incomer Kit To Suit 400a Panel Boards Protek Uk Protection relays for 11kv outgoing panel 15.1.3 relay 1 directional 3 phase over current and earth fault protection with idmt, definite time and instantaneous characteristics. Ht (high tension) panel is a high voltage (11kv 33kv) power control center where power supply is received and distributed to the feeder line or transformer with safety components as protection relay, circuit breaker, indicators, measuring meters, ct and pt. Application : mainly used for operation & protection of public, industrial and tertiary distribution of network from 3.3 kv to 36 kv. It is proposed to retro fit this existing panel with a new panel with one incoming and three out going. four numbers of vacuum circuit breakers are to be installed in the new panel, with one for incomer, three for outgoing.
