Weak Reference Vs Strong Reference Revit

When exploring weak reference vs strongreference revit, it's essential to consider various aspects and implications. Help | Define Priorities for Reference Planes | Autodesk. A strongreference takes precedence over a wall reference point (such as its centerline). A weak reference has the lowest priority for dimensioning and snapping. Difference between Strong, Weak and No Reference Planes in Revit.

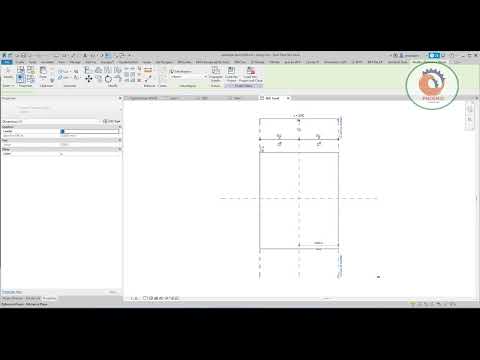

This is a tutorial explaining the difference between strong reference, weak reference and is not a reference planes in Revit family editor. 8 Tips to Master Reference Planes in Revit Families. With weak planes, the entire family is moved, because the geometry has priority over the reference plane. With strong planes, the family stretches to match the wall. Differences in Strong and Weak Reference Planes - Revit Forum.

Once loaded into the project, aligning the strong reference plane to an element will stretch the family, whilst aligning the weak reference plane will move the entire family to that element without altering that instance parameter. On Strengths and Weaknesses (in the Revit Family Editor). When is it appropriate to use a Strong Reference vs.

This perspective suggests that, as a rule of thumb, the planes people are more likely to dimension to and from should be set as strong references. Everything else people might want to reference to and from should be a weak reference. Weak reference taking precedence over strong reference - AUGI. Additionally, making a ref plane a weak and strong reference only changes how Revit will recognize the ref plane when placing dimensions or aliging inside the model. It's important to note that, strong references will be recognized first and you'll have to 'tab' select to get to the weak references.

Reference Planes and Drag Controls – BIMcraftHQ. After some confusion at work around drag controls and the different way reference planes can affect families, I quickly threw this together. I hope it helps anyone else that has been confused by the topic. Door Series #5 – Strong vs Weak Reference Planes in Revit Explained.

In relation to this, in this video, you’ll learn the difference between strong and weak reference planes in Revit families.The Complete Revit 2026 Course for Architectural Design... strong reference / weak reference - Revit Forum. I haven't played around too much with strong vs weak references, but from what I've seen the center references (just says "reference" in the status bar while hitting tab) will move the family, where a weak or strong reference associated with an instance parameter will stretch it. BASICS OF REVIT FAMILY CREATION 2 STRONG AND WEAK REFERENCE ... In this informative tutorial, we delve into the nuanced distinctions between strong and weak reference planes in Revit.
