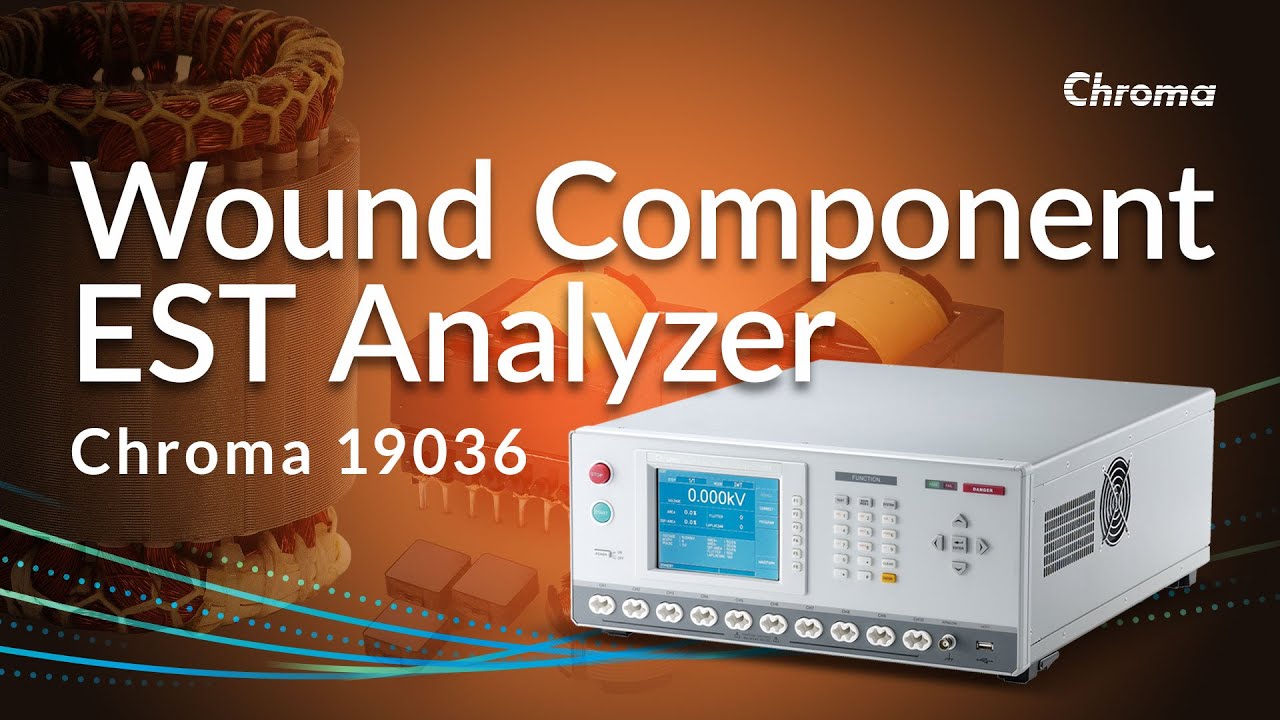

Wound Component Est Analyzer Chroma Description 5 in 1 (10 channels) composite analyzer (acwv dcwv ir impulse dcr). Wound component est analyzer combining the layer short testing function, the 19036 has 6kv impulse voltage with area, differential area, flutter and laplacian judgments to supply effective measures for inspecting poor coil insulation.
Wound Component Est Analyzer Chroma The iwt bdv mode (iwt breakdown voltage mode) can determine the highest withstand voltage of the wound component. the r&d (research and development) engineer can use the iwt bdv mode to analyze and research the product, and improve the weakness of the product. Functions: hipot test, ir test, dcr test, multi channel scanner. max. voltages ac dc (kv). Designed for electrical characteristics inspection and safety withstand voltage tests of winding components. The industry’s first wound component electrical safety test (est) analyzer that combines impulse winding, ac dc hipot, insulation resistance and dc resistance test measurement functions.
Wound Component Est Analyzer Chroma Designed for electrical characteristics inspection and safety withstand voltage tests of winding components. The industry’s first wound component electrical safety test (est) analyzer that combines impulse winding, ac dc hipot, insulation resistance and dc resistance test measurement functions. Electrical safety analyzer wound component est analyzer model 19036 5 in 1 composite analyzer scanner (acw dcw ir iwt dcr) hi pot test (5kvac 6kvdc, hscc, 500 va output) 5kv insulation resistance test (ir) impulse winding test (iwt) read more. The 19035 series is a comprehensive safety tester designed for motor, transformer, and heat related wound component tests. most wound components have multiple windings, such as 3 phase motors and dual winding transformers. The impulse winding test is to impose a non destructive, high speed and low energy voltage impulse on the dut (device under test) to analyze compare the equivalent waveform of yield and defect products for good and no good judgement. It has 5kvac 6kvdc high voltage output, 5kv insulation resistance, 6kv layer short impulse voltage and 4 wire dc resistance measurement that can comply with the wound components test demands by providing maximum 10 channels output for multichannel scanning tests to save time and labor costs.
Wound Component Est Analyzer Chroma Electrical safety analyzer wound component est analyzer model 19036 5 in 1 composite analyzer scanner (acw dcw ir iwt dcr) hi pot test (5kvac 6kvdc, hscc, 500 va output) 5kv insulation resistance test (ir) impulse winding test (iwt) read more. The 19035 series is a comprehensive safety tester designed for motor, transformer, and heat related wound component tests. most wound components have multiple windings, such as 3 phase motors and dual winding transformers. The impulse winding test is to impose a non destructive, high speed and low energy voltage impulse on the dut (device under test) to analyze compare the equivalent waveform of yield and defect products for good and no good judgement. It has 5kvac 6kvdc high voltage output, 5kv insulation resistance, 6kv layer short impulse voltage and 4 wire dc resistance measurement that can comply with the wound components test demands by providing maximum 10 channels output for multichannel scanning tests to save time and labor costs.
