Fatigue Sn Curve Jpg T 1511197644305 Width 640 Name Fatigue Sn Curve S n curve, also known as a wöhler curve plots applied stress (s) against component life or number of cycles to failure (n). engineers use this method to determine the fatigue life of a material. An s n curve (stress number curve) is a graphical representation plotting stress amplitude against the number of cycles to failure, enabling engineers to predict fatigue life under cyclic loading conditions.

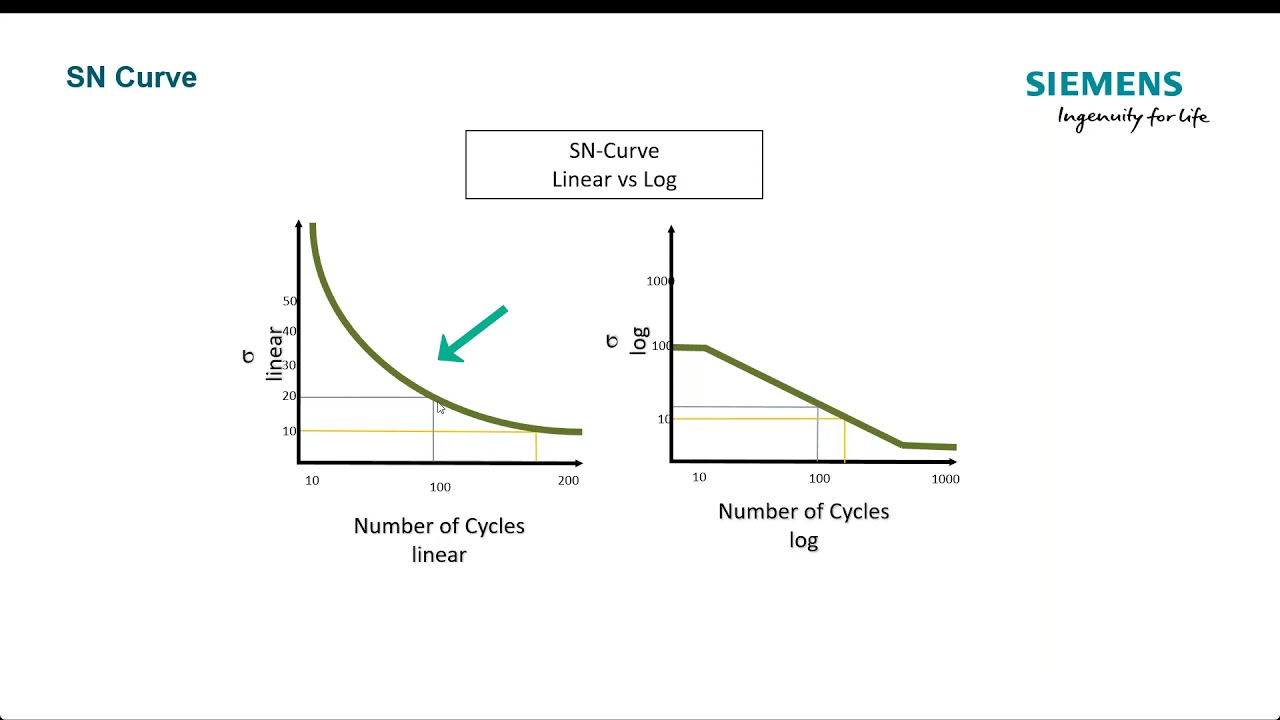

Stress Life Sn Curve Download Scientific Diagram What is a sn curve? a sn curve (sometimes written s n curve) is a plot of the magnitude of an alternating stress versus the number of cycles to failure for a given material. typically both the stress and number of cycles are displayed on logarithmic scales. The s–n curve is defined as the relationship between stress (s) and the number of cycles (n) of that stress, illustrating the occurrence of damage due to cumulative fatigue. An s n curve represents the relationship between the stress amplitude (s) applied to a material and the number of cycles to failure (n) it can endure under cyclic loading. The s n curve, also known as the fatigue curve, is a graphical representation of the relationship between the maximum stress that a material can withstand before it fails and the number of cycles of loading that it can endure before it fails.

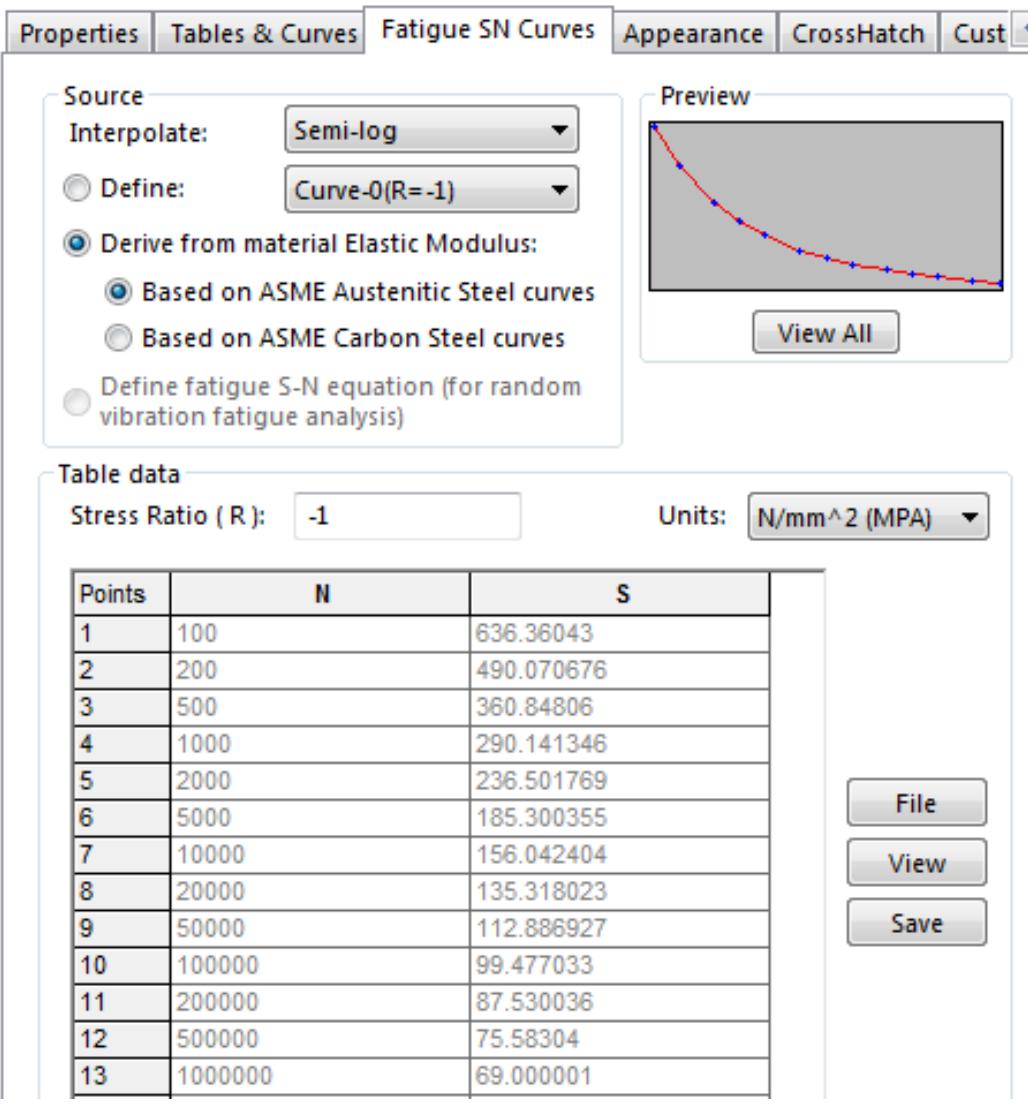

Figure 10 From Fatigue Failure Analysis Of Bike Crank Arm An s n curve represents the relationship between the stress amplitude (s) applied to a material and the number of cycles to failure (n) it can endure under cyclic loading. The s n curve, also known as the fatigue curve, is a graphical representation of the relationship between the maximum stress that a material can withstand before it fails and the number of cycles of loading that it can endure before it fails. An s–n curve is a graphical representation that shows the relationship between the stress (s) applied to a material and the number of cycles (n) it can withstand before failure due to fatigue. it helps engineers understand how long a material can survive under repeated or fluctuating loads. An s n curve is a graphical tool that relates applied stress to a material’s endurance, providing the data engineers use to predict and prevent fatigue failure. It is derived from high cycle fatigue tests by applying a load at constant amplitude (also s n test) to din 50100, and is divided into the regions of low cycle fatigue k, finite life fatigue z and high cycle fatigue d. the regions are delimited by the number of cycles n. An s n curve is a graph that plots the stress amplitude (s) against the number of cycles to failure (n) for a material subjected to cyclic loading. essentially, it shows how many cycles a material can withstand at a given stress level before it fails due to fatigue.
Understanding Fatigue Strength Of Any Given Material Using Sn Curve An s–n curve is a graphical representation that shows the relationship between the stress (s) applied to a material and the number of cycles (n) it can withstand before failure due to fatigue. it helps engineers understand how long a material can survive under repeated or fluctuating loads. An s n curve is a graphical tool that relates applied stress to a material’s endurance, providing the data engineers use to predict and prevent fatigue failure. It is derived from high cycle fatigue tests by applying a load at constant amplitude (also s n test) to din 50100, and is divided into the regions of low cycle fatigue k, finite life fatigue z and high cycle fatigue d. the regions are delimited by the number of cycles n. An s n curve is a graph that plots the stress amplitude (s) against the number of cycles to failure (n) for a material subjected to cyclic loading. essentially, it shows how many cycles a material can withstand at a given stress level before it fails due to fatigue.
Results From Ansys And Fatigue Life From Sn Curve Download It is derived from high cycle fatigue tests by applying a load at constant amplitude (also s n test) to din 50100, and is divided into the regions of low cycle fatigue k, finite life fatigue z and high cycle fatigue d. the regions are delimited by the number of cycles n. An s n curve is a graph that plots the stress amplitude (s) against the number of cycles to failure (n) for a material subjected to cyclic loading. essentially, it shows how many cycles a material can withstand at a given stress level before it fails due to fatigue.
