Ray Path In The Point Source Microscope Psm Showing How The Point Fig. 3 the psm as a transmission microscope with the tube lens adjusted, we can add an infinite conjugate microscope objective to make the psm into a transmission, or bio medical, microscope. The point source microscope (psm) stands out from other optical alignment tools due to its precision, speed, ease of use, and versatility. unlike laser based systems, optical microscopes, and traditional alignment tools, the psm offers a complete solution for rapid, high precision optical alignment across a wide range of applications.
Ray Path In The Point Source Microscope Psm Showing How The Point The point source microscope is completely powered by usb, it offers unmatched portability and ease of use, ready to operate immediately with its included software package. the high sensitivity and ability to verify optical performance make it ideal for quality control and production environments. The psm is a video metallographic, or reflected illumination, microscope with a köhler light source to provide uniform illumination over the field of view. in addition, the psm has a point source of illumination produced by the end of a fiber pigtailed laser diode that is conjugate to the microscope object surface as shown in fig. 1 below. The psm (point source microscope) adjustment microscope originated from the optical center of the university of arizona, usa. it is a universal auxiliary adjustment tool, mainly used in the adjustment of complex optical systems. The point source microscope (psm) utilizes infinite conjugate optics internally. when the microscope objective is removed, the psm is an autocollimator. unlike conventional autocollimators, which use a reticle pattern for illumination, the psm employs a single mode fiber.

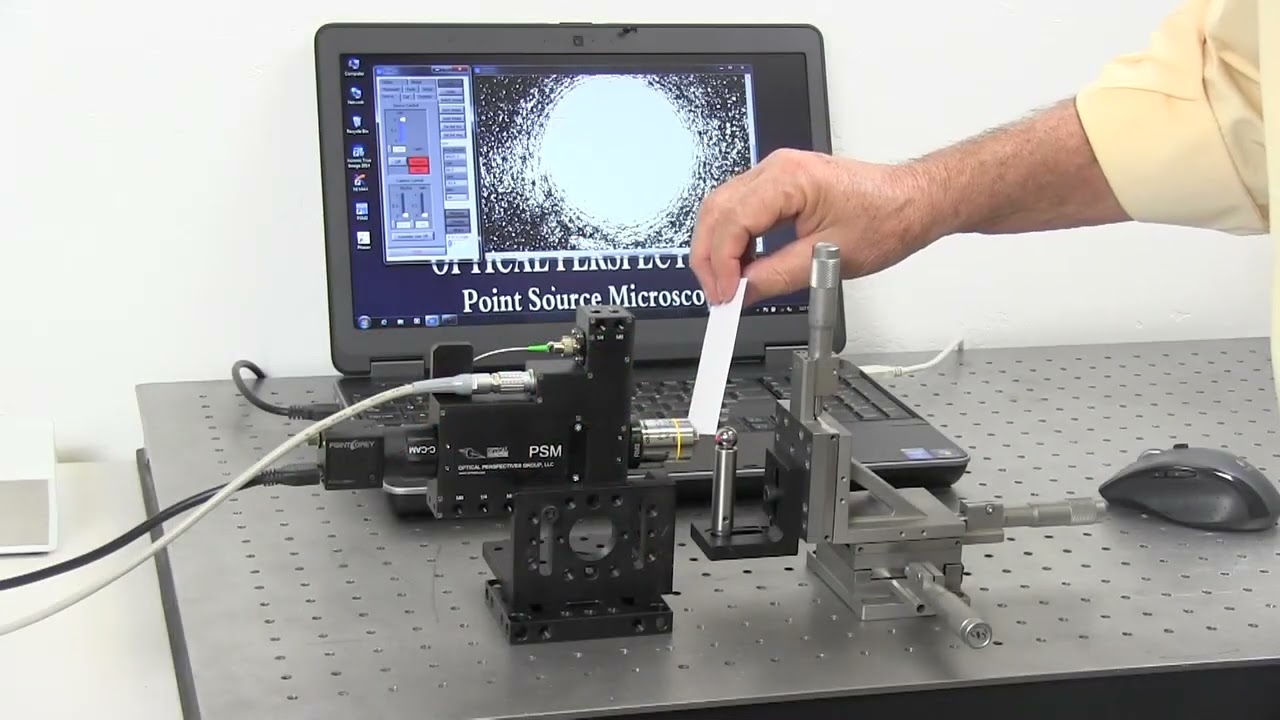

Robert Parks On Revolutionizing Optical Alignment With The Point Source The psm (point source microscope) adjustment microscope originated from the optical center of the university of arizona, usa. it is a universal auxiliary adjustment tool, mainly used in the adjustment of complex optical systems. The point source microscope (psm) utilizes infinite conjugate optics internally. when the microscope objective is removed, the psm is an autocollimator. unlike conventional autocollimators, which use a reticle pattern for illumination, the psm employs a single mode fiber. The document discusses the point source microscope (psm), a tool designed for the precise alignment of optical systems by locating the centers of curvature of optical surfaces. The video describes the psm as a contemporary, video version of a classical autostigmatic microscope and shows the optical path inside the psm so you can see how it functions optically. This was the beginning of the original point source microscope (psm), an asm small and light enough to be held on the ram of a coordinate measuring machine (cmm) in place of the usual. The point source microscope is completely powered by usb, it offers unmatched portability and ease of use, ready to operate immediately with its included software package. the high sensitivity and ability to verify optical performance make it ideal for quality control and production environments.
The Point Source Microscope Psm Optical Perspectives Group The document discusses the point source microscope (psm), a tool designed for the precise alignment of optical systems by locating the centers of curvature of optical surfaces. The video describes the psm as a contemporary, video version of a classical autostigmatic microscope and shows the optical path inside the psm so you can see how it functions optically. This was the beginning of the original point source microscope (psm), an asm small and light enough to be held on the ram of a coordinate measuring machine (cmm) in place of the usual. The point source microscope is completely powered by usb, it offers unmatched portability and ease of use, ready to operate immediately with its included software package. the high sensitivity and ability to verify optical performance make it ideal for quality control and production environments.
