Visionpro Tool Block Graphics Options Each visionpro tool block can be configured to disable or enable the record graphics and composite graphics. for the best performance at runtime, cognex recommends disabling both record graphics and composite graphics. Within viper some blocks in toolgroups get special functions. for example, results of a tool of viper can be displayed elsewhere or configuration options for saving images can be adjusted.

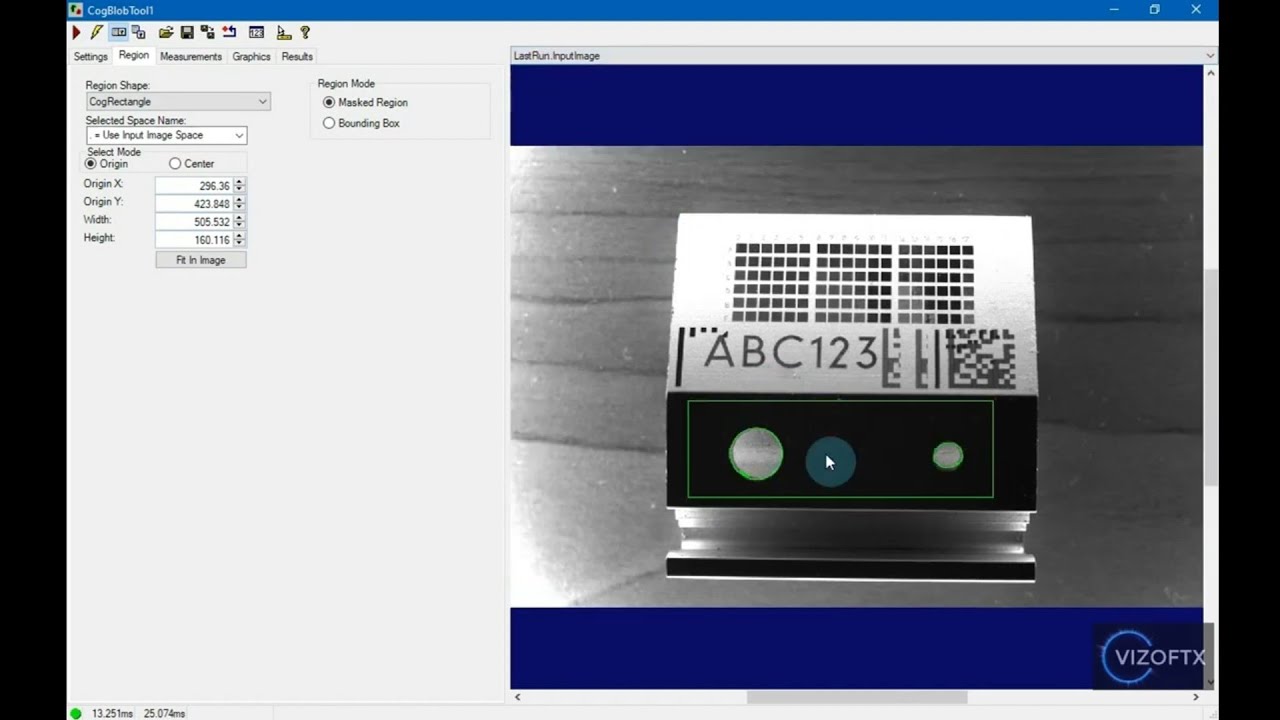

Visionpro Tool Block Graphics Options It includes 4 examples written in both vb and c# that demonstrate common scripting tasks like: 1) converting radians to degrees, 2) saving failed images, 3) getting blob bounding box coordinates, and 4) implementing custom pass fail behavior based on measurement ranges. The toolblock tool in visionpro allows the user to add system default data types and visionpro customization (cogimage8grey, icogimage et al) data type, which is added to the following figure. These topics cover how to configure the two types of graphics utilized by visionpro tool blocks. within cognex designer, a visionpro tool block graphic is considered to be a shape or object constructed out of colored lines and or text that may be placed on top of an image in a visionpro display. These topics cover how to construct a project that can be used to display 3d images output by a ds1000 series sensor, and the graphics output by the visionpro 3d tools.

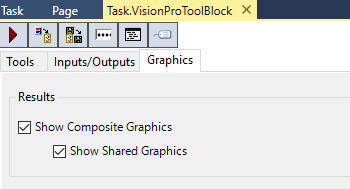

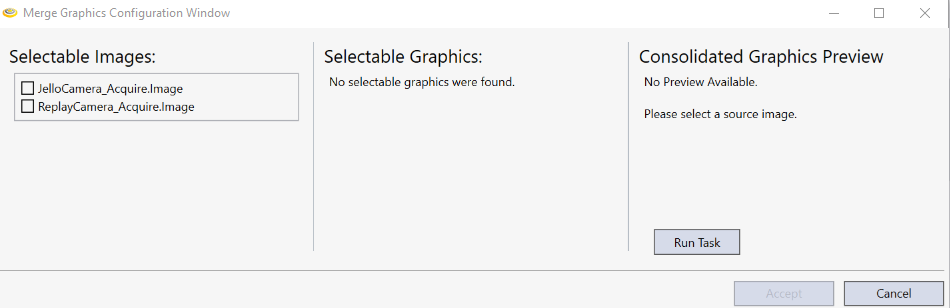

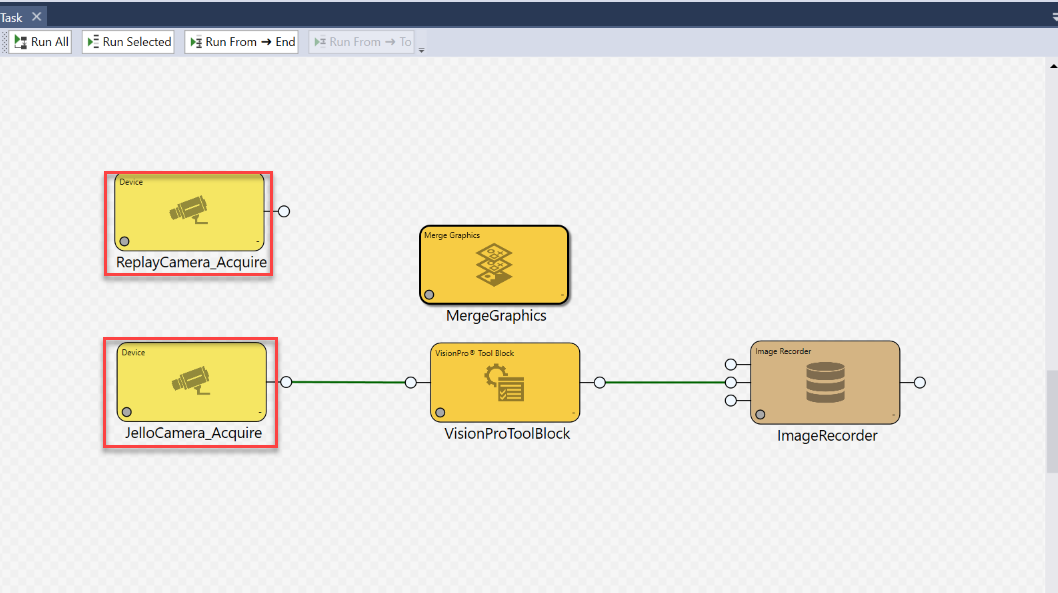

Visionpro Tool Block Graphics Options These topics cover how to configure the two types of graphics utilized by visionpro tool blocks. within cognex designer, a visionpro tool block graphic is considered to be a shape or object constructed out of colored lines and or text that may be placed on top of an image in a visionpro display. These topics cover how to construct a project that can be used to display 3d images output by a ds1000 series sensor, and the graphics output by the visionpro 3d tools. A graphical, block diagram based programming environment reduces development cycles and enables easier application maintenance and support. cognex designer makes it easy to develop, deploy, and maintain vision applications without needing scripting or programming. Visionpro tool blocks cognex designer supports the addition of visionpro cogtoolblocks to a task. this allows users to include the image processing and vision algorithms as part of the task. It provides 5 examples of toolblock and toolgroup scripts, demonstrating how to: 1) convert radians to degrees in a toolblock; 2) save failed images using a toolblock; 3) extract blob bounding box center points using a toolgroup; 4) implement custom inspection logic and pass fail behavior in a toolgroup; and 5) dynamically execute tools for an. In order to interact with the designer tags from the visionpro script editor, add additional [inputs] and [outputs] to the vision pro tool block prior to opening the visionpro script editor.
