Using The Modify Configurations Table In Solidworks

Using The Modify Configurations Table In Solidworks You can use the modify configurations and the configuration table dialog boxes to create and modify configurations for configured parameters in parts and assemblies. Solidworks configurations can be created, modified, and managed more efficiently by using the available configuration table dialog.

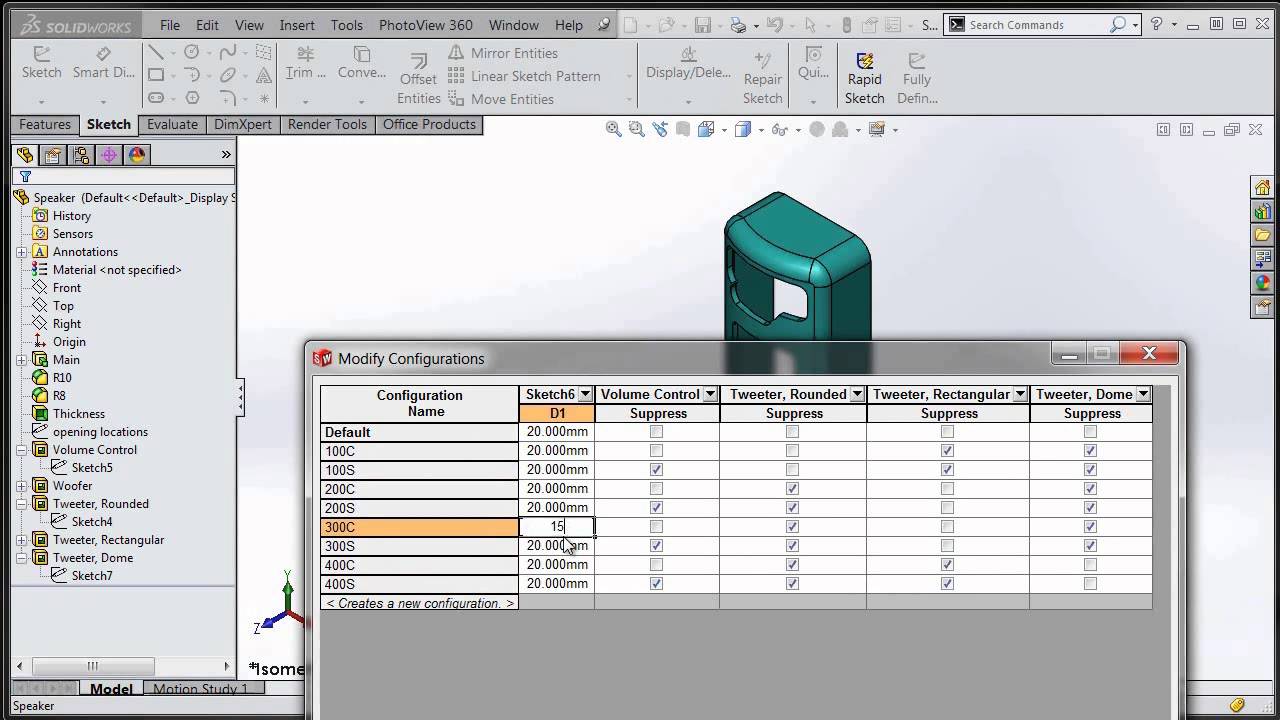

Using The Modify Configurations Table In Solidworks This table can be used to create and modify configurations significantly faster than a manual one by one approach, and while it's not quite as capable as a design table, it's a lot easier. To start a modify configurations table, right click on any feature, dimension, mate or component and select the “configure feature”, “configure dimension” or “configure component” command. The solidworks configuration table allows you to easily configure multiple parameters in a single table. activate the table by right clicking the first part, feature, or sketch dimension which you would like to modify and then ‘configure’. In this tutorial, we show how to create and modify a configuration table in solidworks. we'll then use configuration publisher to select specific configurations to update in assemblies from a dropdown list.

Using The Modify Configurations Table In Solidworks The solidworks configuration table allows you to easily configure multiple parameters in a single table. activate the table by right clicking the first part, feature, or sketch dimension which you would like to modify and then ‘configure’. In this tutorial, we show how to create and modify a configuration table in solidworks. we'll then use configuration publisher to select specific configurations to update in assemblies from a dropdown list. Learn how to add, manage, and control features between configurations with configuration tables and find out what’s new in solidworks 2022. If you need to create multiple configurations, i prefer to use the “modify configurations” option by right clicking on a feature. you can double click on additional features or dimensions to add to the table. From the concepts and use cases of solidworks configurations to the details of how to set up your models, this guide covers it all. In this article, we will examine the best cases for using configurations in solidworks, preparing a model for configuration, and 3 methods for creating configurations: manually, using a configuration table, and using a design table.
