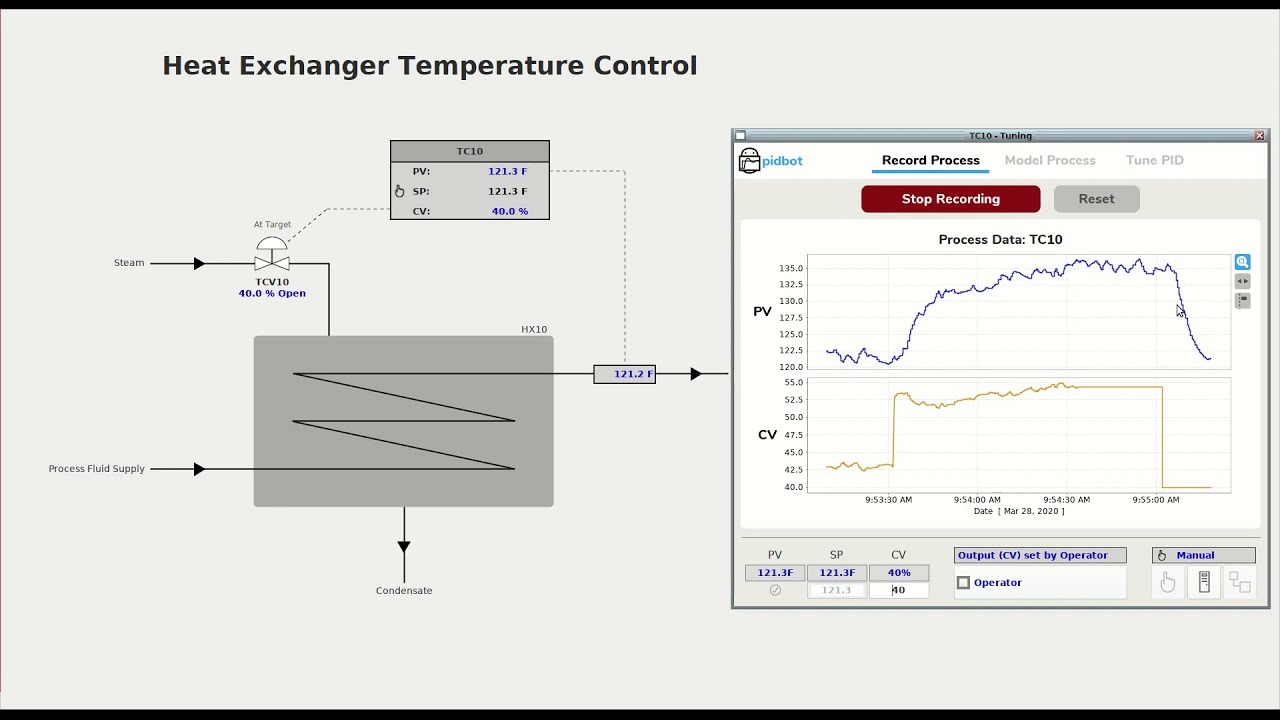

What Is Pid Control By Set Point Pdf Pid tuning demo with pidbot, using process data generated with the pid controller in automatic mode. Proportional integral derivative (pid) control is the most commonly used controller in practice. this demonstrates how to obtain tuning values for a pid controller from step test data.

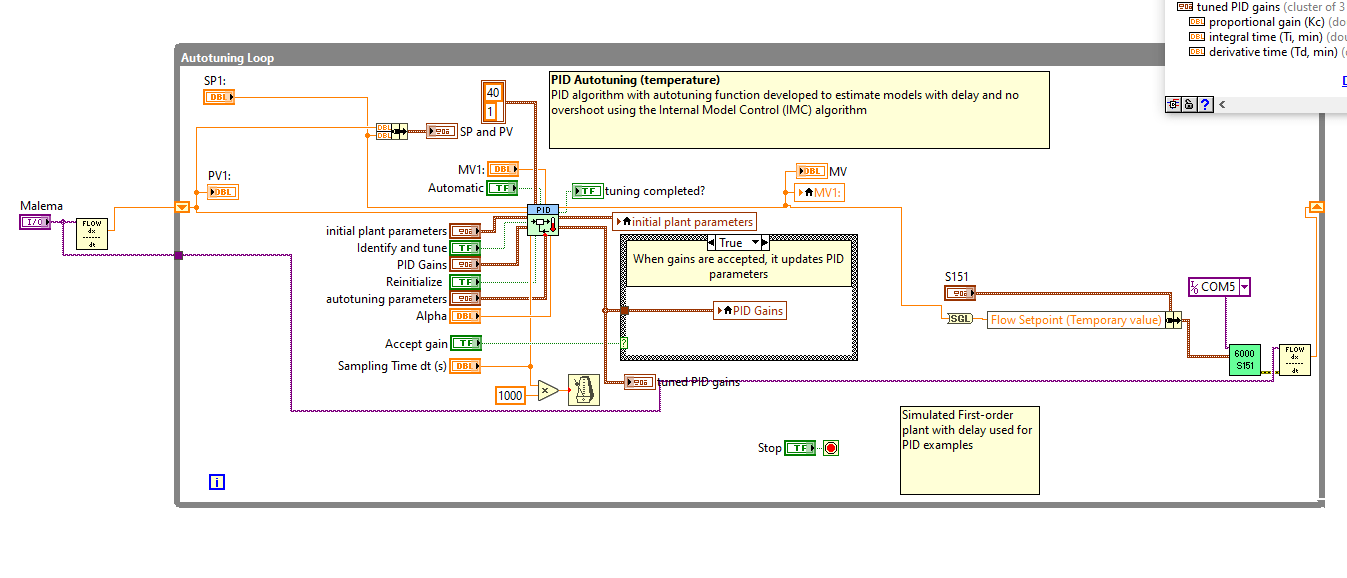

Pid Output Half Of Setpoint Ni Community Learn how to configure ratio control loops for black liquor oxidation using yokogawa centum vp aai143 and abb 800xa ai810 modules. includes pid tuning, fault diagnosis, and setpoint calculation. This online tuner calculates p, i, and d values to tune your real world control loop and suggests a scan rate, based on data you supply. it’s an easy way to get very close to functional tuning for your real world process pid. Tuning a pid loop isn’t based on just numbers, it’s based on knowing your process. fortunately knowing the process usually just means measuring the response to a step change in the setpoint or some other “upset”, and we typically just measure it on the actual system. A simple method has been developed for pid controller tuning of an unidentified process using closed loop experiments. the proposed method requires one closed loop step setpoint response experiment using a proportional only controller, and it mainly uses information about the first peak (overshoot) which is very easy to identify.
Pid 12 Tuning Pid Controllers Prizm Tuning a pid loop isn’t based on just numbers, it’s based on knowing your process. fortunately knowing the process usually just means measuring the response to a step change in the setpoint or some other “upset”, and we typically just measure it on the actual system. A simple method has been developed for pid controller tuning of an unidentified process using closed loop experiments. the proposed method requires one closed loop step setpoint response experiment using a proportional only controller, and it mainly uses information about the first peak (overshoot) which is very easy to identify. Always start with small steps when adjusting a pid controller, and give time between each adjustment to see how the controller reacts. increase the integral gain in small increments, and with each adjustment, change the set point to see how the controller reacts. Pid controllers of all types dcs, plc, single loop, pneumatic from all manufacturers. physical processes including flow, pressure (liquids and gases), level (liquids and solids), temperature (heat exchange, mixing, reaction), and composition (density, ph, stack o2, dissolved oxygen, etc.). Where improved performance is required, change one tuning parameter at a time and observe its effect on performance when the setpoint is changed. make incremental changes in the parameters until the performance is optimized. Learn how to execute an open loop step test and how to estimate the four process parameters required to calculate proposed pid controller tuning constants. know one method to calculate pid controller tuning constants.
Controller Pid Tuning At Kenneth Keene Blog Always start with small steps when adjusting a pid controller, and give time between each adjustment to see how the controller reacts. increase the integral gain in small increments, and with each adjustment, change the set point to see how the controller reacts. Pid controllers of all types dcs, plc, single loop, pneumatic from all manufacturers. physical processes including flow, pressure (liquids and gases), level (liquids and solids), temperature (heat exchange, mixing, reaction), and composition (density, ph, stack o2, dissolved oxygen, etc.). Where improved performance is required, change one tuning parameter at a time and observe its effect on performance when the setpoint is changed. make incremental changes in the parameters until the performance is optimized. Learn how to execute an open loop step test and how to estimate the four process parameters required to calculate proposed pid controller tuning constants. know one method to calculate pid controller tuning constants.
