Use Solidworks Indent Feature In An Assembly Goengineer In this tutorial, we demonstrate the solidworks indent feature and how to create indents at the assembly level. In this tutorial, we demonstrate the solidworks indent feature and how to create indents at the assembly level. view the full article.

Use Solidworks Indent Feature In An Assembly Goengineer Learn how you can use the indent feature when working in the top down assembly method in solidworks. solidworks quick tip presented by charn jivaphaiboonskdi of goengineer. The indent feature creates an offset pocket or protrusion feature on a target body that exactly matches the contour of a selected tool body, using thickness and clearance values to create the feature. I'm trying to create a deep cavity in a cube that is shaped to the contour of an assembly. i've tried using the indent feature, but i can't make the cut deeper than the assembly's thickness. Instead you can use the solidworks indent feature (insert > features > indent) with the cut option. set the clearance to 0 (unless you actually want clearance) and it will remove the region from the ‘target body’. yet it will still leave both bodies at the end with only one feature.

Use Solidworks Indent Feature In An Assembly Goengineer I'm trying to create a deep cavity in a cube that is shaped to the contour of an assembly. i've tried using the indent feature, but i can't make the cut deeper than the assembly's thickness. Instead you can use the solidworks indent feature (insert > features > indent) with the cut option. set the clearance to 0 (unless you actually want clearance) and it will remove the region from the ‘target body’. yet it will still leave both bodies at the end with only one feature. Right click on the features toolbar and select customize, from the commands tab choose features, then drag the indent feature to the features toolbar. when you apply the indent feature; you will need to select a target body and a tool body region. Working with multi body parts, the indent feature creates an offset pocket or protrusion on a target body using a tool body or bodies. the contour of the tool body is removed or added to the target part, also allowing a thickness and clearance value to create the feature. This quick tutorial explains the difference between solidworks indent cut vs combine subtract features that can be used to remove unwanted overlaps on models. Learn how to use the indent feature in solidworks. this video explains what target body and tool body regions are. more.

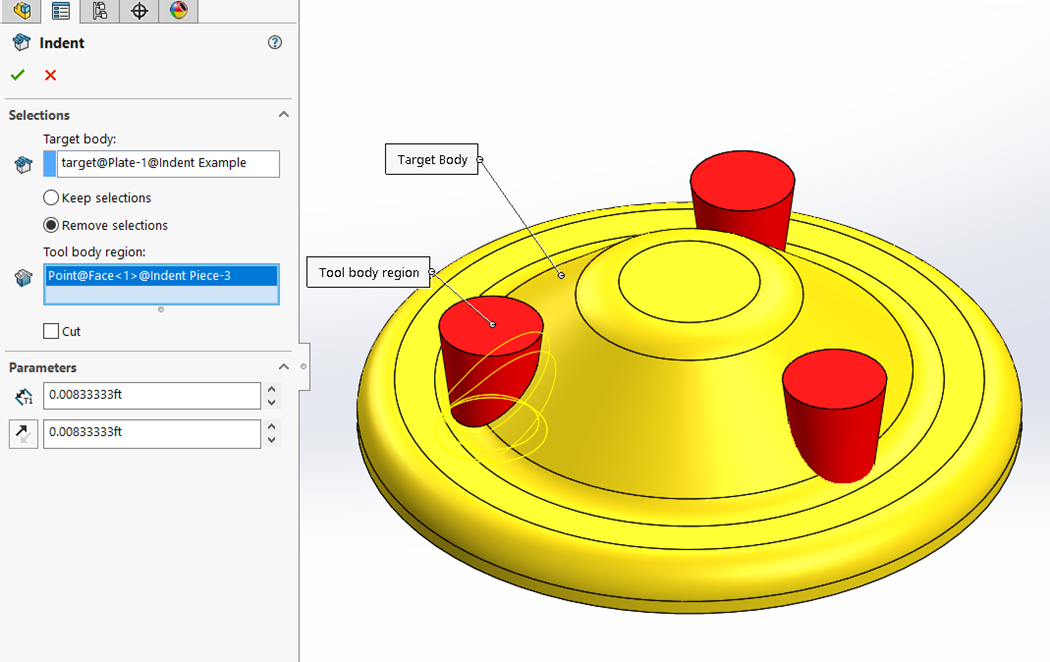

Use Solidworks Indent Feature In An Assembly Goengineer Right click on the features toolbar and select customize, from the commands tab choose features, then drag the indent feature to the features toolbar. when you apply the indent feature; you will need to select a target body and a tool body region. Working with multi body parts, the indent feature creates an offset pocket or protrusion on a target body using a tool body or bodies. the contour of the tool body is removed or added to the target part, also allowing a thickness and clearance value to create the feature. This quick tutorial explains the difference between solidworks indent cut vs combine subtract features that can be used to remove unwanted overlaps on models. Learn how to use the indent feature in solidworks. this video explains what target body and tool body regions are. more.

Use Solidworks Indent Feature In An Assembly Goengineer This quick tutorial explains the difference between solidworks indent cut vs combine subtract features that can be used to remove unwanted overlaps on models. Learn how to use the indent feature in solidworks. this video explains what target body and tool body regions are. more.
