Trusses Method Of Joints Pdf Truss Mechanics The method of joints is a process used to solve for the unknown forces acting on members of a truss. the method centers on the joints or connection points between the members, and it is usually the fastest and easiest way to solve for all the unknown forces in a truss structure. The method of joints is a process used to solve for the unknown forces acting on members of a truss. the method centers on the joints or connection points between the members, and it is usually the fastest and easiest way to solve for all the unknown forces in a truss structure.
Lecture 3 Ch 4 Method Of Joint For Trusses Pdf Truss Applied And The method of joints is a process used to solve for the unknown forces acting on members of a truss. the method centers on the joints or connection points between the members, and it is most useful when you need to solve for all the unknown forces in a truss structure. The document provides solutions to truss problems using the method of joints, detailing the calculations for forces in various truss members. key results include forces such as f ab = 5.56 kn tension, f ae = 75.56 kn tension, and f cd = 88.87 kn compression. Introduction to truss truss – structure composed of slender member joined together at their end points commonly construct consist of wooden struts and metal bars (steel) connection joints – by bolting or welding to gusset plate objective : to determine the reactions and member forces. Once the forces in one joint are determined, their effects on adjacent joints are known. we then continue solving on successive joints until all members have been found.
Trusses Method Of Joints Pdf Truss Tension Physics Introduction to truss truss – structure composed of slender member joined together at their end points commonly construct consist of wooden struts and metal bars (steel) connection joints – by bolting or welding to gusset plate objective : to determine the reactions and member forces. Once the forces in one joint are determined, their effects on adjacent joints are known. we then continue solving on successive joints until all members have been found. The method of joints systematically examines force equilibrium at each connection, while the method of sections cuts through the truss to analyze larger portions. Continue moving across the truss, joint by joint. choose joints that have only one unknown in each direction, horizontal or vertical. solve the joints with the most members last. check that all forces balance. inspect the final solution to see that it seems to make sense. Draw a fbd of a truss joint that has no more than two unknowns and use the two equations of equilibrium to find the two unknown truss member forces;. The method of joints is a procedure for finding the internal axial forces in the members of a truss. it involves a progression through each of the joints of the truss in turn, each time using equilibrium at a single joint to find the unknown axial forces in the members connected to that joint.

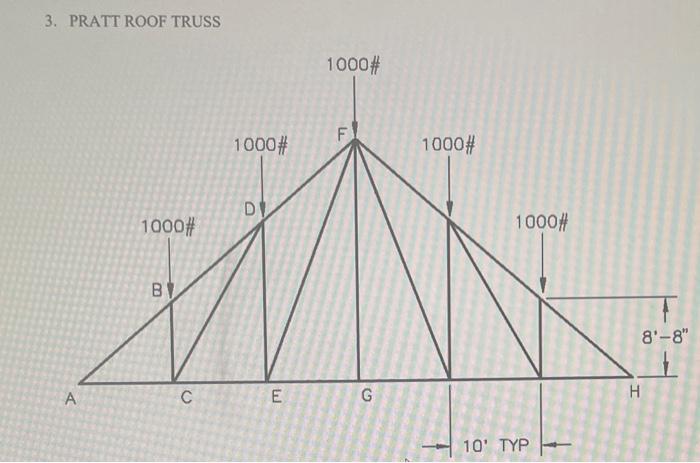

Solved Engr 08 Hw 9 Trusses By Joint Method For The Chegg The method of joints systematically examines force equilibrium at each connection, while the method of sections cuts through the truss to analyze larger portions. Continue moving across the truss, joint by joint. choose joints that have only one unknown in each direction, horizontal or vertical. solve the joints with the most members last. check that all forces balance. inspect the final solution to see that it seems to make sense. Draw a fbd of a truss joint that has no more than two unknowns and use the two equations of equilibrium to find the two unknown truss member forces;. The method of joints is a procedure for finding the internal axial forces in the members of a truss. it involves a progression through each of the joints of the truss in turn, each time using equilibrium at a single joint to find the unknown axial forces in the members connected to that joint.
