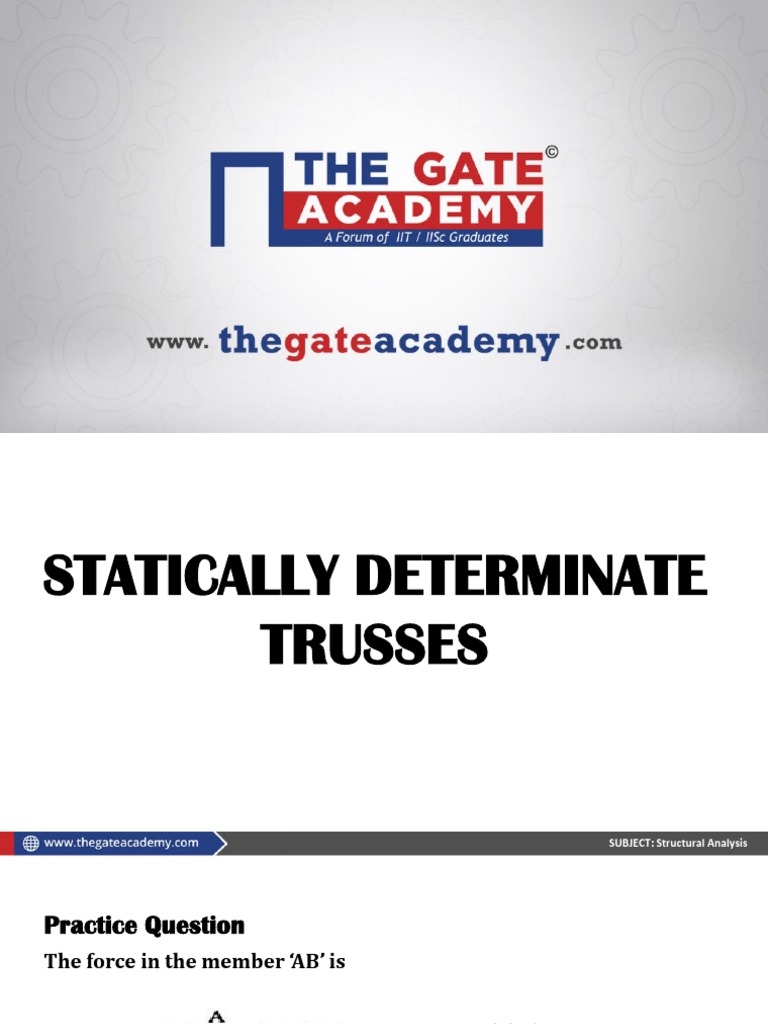

Trusses Chapter 2 Pdf Truss Structural Analysis Trusses are structures made of straight bars joined at nodes, where forces are considered to act. frames have rigidly connected members that experience various internal forces. a 2d truss element is analyzed, relating nodal displacements in local and global frames. Practice problems no. 2 determine the unknown support reactions in the following truss. take a= 0.005 m2 and e = 29 gpa for each member.
Module 2 Trusses Pdf Example of 2d truss with spring in figure 4.8 we consider a structure that is built from t. Tructural degrees of freedom in your truss. in a 2d (planar) truss, each node can have a maximum of two degrees of freedom: one in the global x d rection and one in the global y direction. if a degree of freedom is restrained by. A truss is a structure formed by combining linear structural members in triangular patterns. the key structural characteristic of a truss is that the internal loads it carries are exclusively or primarily of an axial nature. Trusses can be classified as plane truss and space truss. fig shows 2d truss structure and each node has two degrees of freedom. the only difference between bar element and truss element is that in bars both local and global coordinate systems are same where in truss these are different.

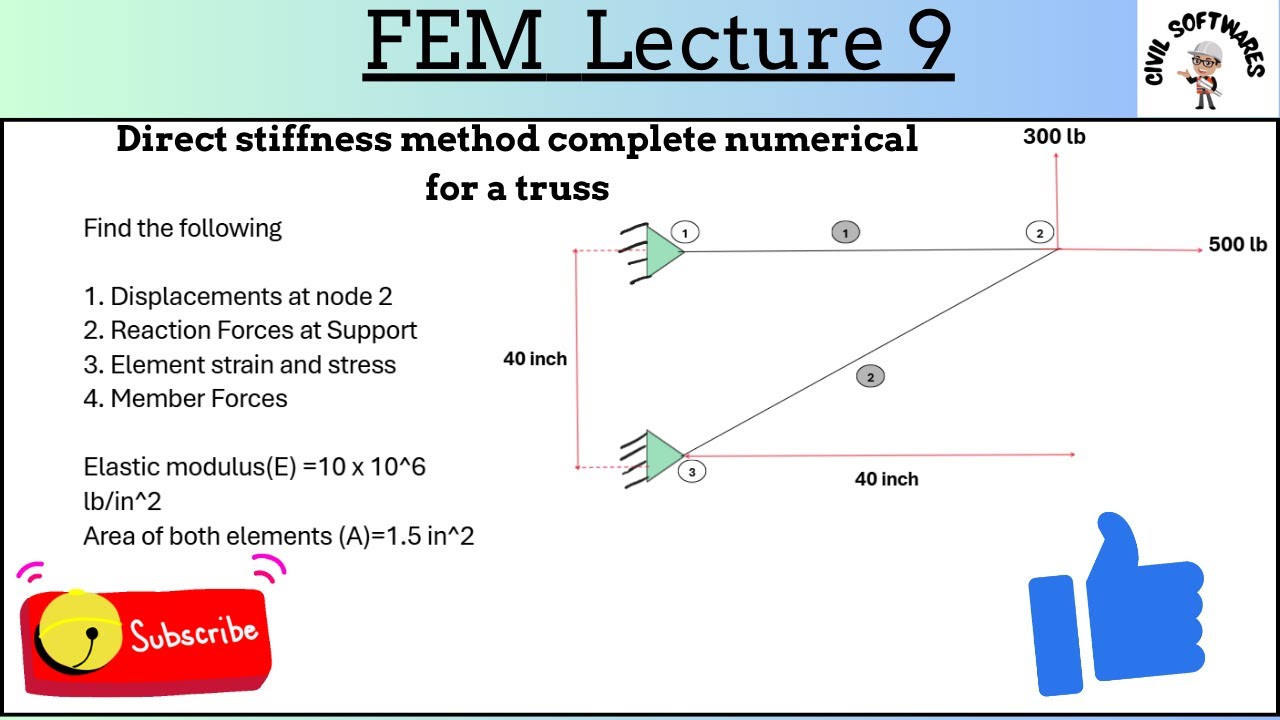

Design And Behavior Of 2d Steel Trusses Pdf Truss Mechanical A truss is a structure formed by combining linear structural members in triangular patterns. the key structural characteristic of a truss is that the internal loads it carries are exclusively or primarily of an axial nature. Trusses can be classified as plane truss and space truss. fig shows 2d truss structure and each node has two degrees of freedom. the only difference between bar element and truss element is that in bars both local and global coordinate systems are same where in truss these are different. In this paper, a literature review of the 2d 3d truss calculation method was carried out in terms of the calculation method and the software used. Example 6 for the truss shown, use the stiffness method to: (b) determine the end forces of each member and reactions at supports. (a) determine the displacement of the loaded joint. ae is constant. Top and vertical members in compression (c), bottom and sloping members in tension (t). structural designer can alter the force pattern by choice of structural arrangement. Plane truss adalah susunan elemen elemen linier yang membentuk segitiga atau kombinasi segitiga yang secara keseluruhan berada di dalam satu bidang tunggal. elemen dan joint berada dalam suatu bidang 2 dimensi.
Trusses 2d Pdf In this paper, a literature review of the 2d 3d truss calculation method was carried out in terms of the calculation method and the software used. Example 6 for the truss shown, use the stiffness method to: (b) determine the end forces of each member and reactions at supports. (a) determine the displacement of the loaded joint. ae is constant. Top and vertical members in compression (c), bottom and sloping members in tension (t). structural designer can alter the force pattern by choice of structural arrangement. Plane truss adalah susunan elemen elemen linier yang membentuk segitiga atau kombinasi segitiga yang secara keseluruhan berada di dalam satu bidang tunggal. elemen dan joint berada dalam suatu bidang 2 dimensi.
Trusses Dimensions Drawings Dimensions Top and vertical members in compression (c), bottom and sloping members in tension (t). structural designer can alter the force pattern by choice of structural arrangement. Plane truss adalah susunan elemen elemen linier yang membentuk segitiga atau kombinasi segitiga yang secara keseluruhan berada di dalam satu bidang tunggal. elemen dan joint berada dalam suatu bidang 2 dimensi.
