Plc Troubleshooting Pdf Programmable Logic Controller Instrumentation Most plc input issues originate from field devices, wiring, sensor types, grounding, or electrical noise rather than the plc itself. by understanding the root causes, following a structured troubleshooting workflow, and applying preventive measures, industrial plants can minimize downtime, reduce maintenance costs, and improve system reliability. This detailed plc troubleshooting guide covers essential diagnostic tools, systematic fault finding procedures, brand specific error code interpretation, led diagnostic techniques, and proven solutions for the most common plc problems encountered in industrial automation.
Plc Troubleshooting Troubleshooting Inputs And Outputs Pdf Understanding the basic components of a plc is crucial when it comes to troubleshooting and maintaining these systems. in this article, we will review the fundamental components of a plc and explore some basic and advanced troubleshooting techniques. This guide walks through the fundamentals of plc troubleshooting, common failure types, practical diagnostic methods, and real world strategies engineers use to restore automated systems to normal operation. In this complete guide, you will learn structured and practical plc troubleshooting steps to identify root causes, interpret plc error codes, and restore normal operation quickly. A plc controls a complex system represented by rows of input output terminal blocks, indicator lamps, and device numbers. repair without wiring diagrams is difficult. create a table showing each plc i o terminal number, the corresponding electrical symbol, and the device name, and place it on the control console or cabinet.
Common Faults And Troubleshooting Of Omron Plc In this complete guide, you will learn structured and practical plc troubleshooting steps to identify root causes, interpret plc error codes, and restore normal operation quickly. A plc controls a complex system represented by rows of input output terminal blocks, indicator lamps, and device numbers. repair without wiring diagrams is difficult. create a table showing each plc i o terminal number, the corresponding electrical symbol, and the device name, and place it on the control console or cabinet. This comprehensive guide explores frequent plc issues and offers practical, step by step plc troubleshooting techniques for each one. with the right approach, maintenance technicians and automation engineers can drastically reduce downtime and enhance system reliability. Troubleshooting q1: how to determine if a plc module is faulty? a: three quick steps to diagnose plc module troubleshooting: check the indicator lights — what should the indicator lights be during normal operation? the instruction manual usually has this information. if the indicator lights are off or flashing abnormally, there is a problem. Troubleshooting a plc (programmable logic controller) system involves a structured approach to diagnose and resolve problems in industrial automation. here's a concise guide to plc troubleshooting:. Learn how to troubleshoot plc issues effectively with this step by step guide, including practical examples and tips for resolving common problems.
Plc Troubleshooting Plc Programming Automation This comprehensive guide explores frequent plc issues and offers practical, step by step plc troubleshooting techniques for each one. with the right approach, maintenance technicians and automation engineers can drastically reduce downtime and enhance system reliability. Troubleshooting q1: how to determine if a plc module is faulty? a: three quick steps to diagnose plc module troubleshooting: check the indicator lights — what should the indicator lights be during normal operation? the instruction manual usually has this information. if the indicator lights are off or flashing abnormally, there is a problem. Troubleshooting a plc (programmable logic controller) system involves a structured approach to diagnose and resolve problems in industrial automation. here's a concise guide to plc troubleshooting:. Learn how to troubleshoot plc issues effectively with this step by step guide, including practical examples and tips for resolving common problems.

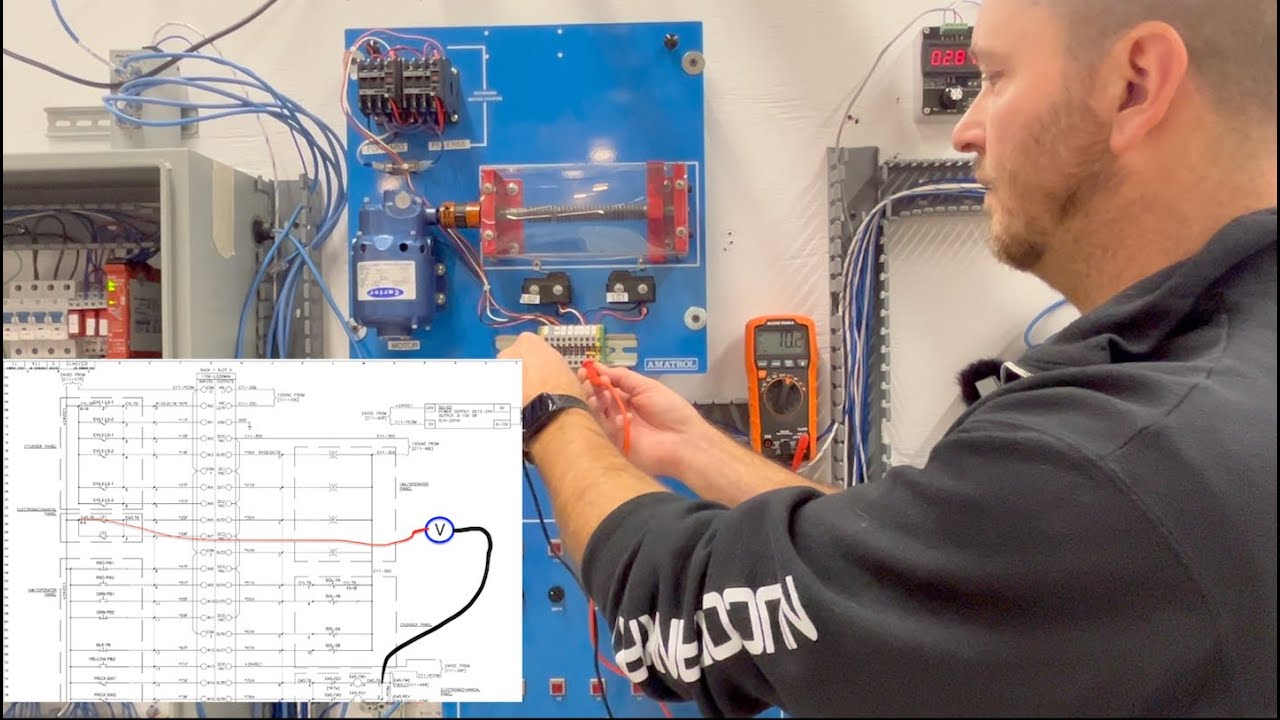

Troubleshooting Plc Permissive Inputs Troubleshooting a plc (programmable logic controller) system involves a structured approach to diagnose and resolve problems in industrial automation. here's a concise guide to plc troubleshooting:. Learn how to troubleshoot plc issues effectively with this step by step guide, including practical examples and tips for resolving common problems.
