Transmission Line Parameters Pdf Pdf Magnetic Field Physics This chapter, we discuss the four basic transmission line parameters: series resistance, series inductance. shunt capacitance, and shunt conductance. we also investigate transmission line electric and magnetic fields. A 180 km, three phase transmission line delivers 80 mw at 115 kv and a power factor of 0.96, lagging. the series impedance of the lines is z = 0.03 j0.3 Ω km, and the shunt admittance is y = j4 𝜇𝜇s km.
Transmission Line Parameters Pdf Performance of transmission lines: while studying the performance of a transmission line, it is desirable to determine its voltage regulation and transmission efficiency. Textbooks and lecture notes. transmission lines are so important in modern day electromagnetic engineering, that most engineering electromagnetics textbooks would be incomplete without introducing the topics related to them [3. The paper examines parameters of transmission lines, categorizing them based on length: short (less than 80 km), medium (80 to 240 km), and long (more than 240 km). it proposes electrical models for each type, detailing the influence of resistance, inductive reactance, and shunt capacitance. Chapter 4 discusses the parameters of transmission lines, including resistance, conductance, inductance, and capacitance, emphasizing design considerations such as conductor material, insulation, and environmental factors.

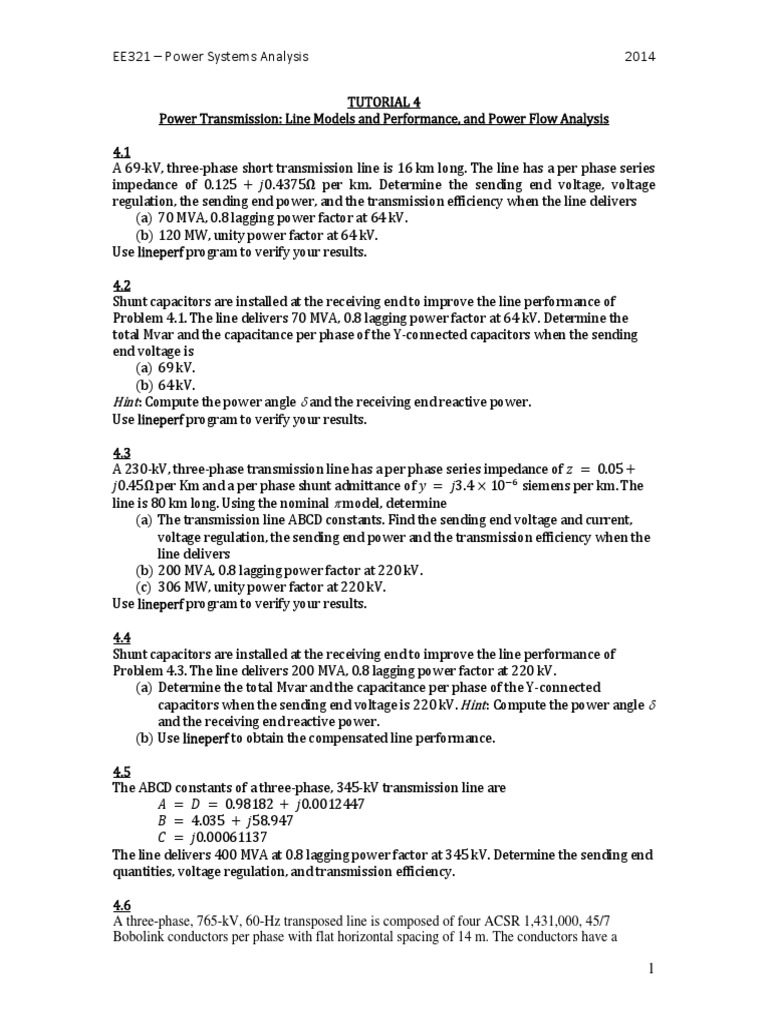

Tutorial 4 Transmission Line Parameters Pdf Electric Power The paper examines parameters of transmission lines, categorizing them based on length: short (less than 80 km), medium (80 to 240 km), and long (more than 240 km). it proposes electrical models for each type, detailing the influence of resistance, inductive reactance, and shunt capacitance. Chapter 4 discusses the parameters of transmission lines, including resistance, conductance, inductance, and capacitance, emphasizing design considerations such as conductor material, insulation, and environmental factors. Calculate the positive and zero sequence inductances per metre of a three phase 50 hz transmission line with conductors spaced at 2.7 m in a flat horizontal arrangement. The transmission line generates capacitive reactive volt amperes in its shunt capacitance and absorbing reactive volt amperes in its series inductance.the load at which the inductive and capacitive reactive volt amperes are equal and opposite, such load is called surge impedance load. The transmission line is a two port circuit used to connect a generator or transmitter signal to a receiving load over a distance. in simple terms power transfer takes place from transmitter to load. The line parameters of a transmission line are resistance, inductance, capacitance and conductance. resistance (r) is defined as the loop resistance per unit length of the transmission line.
