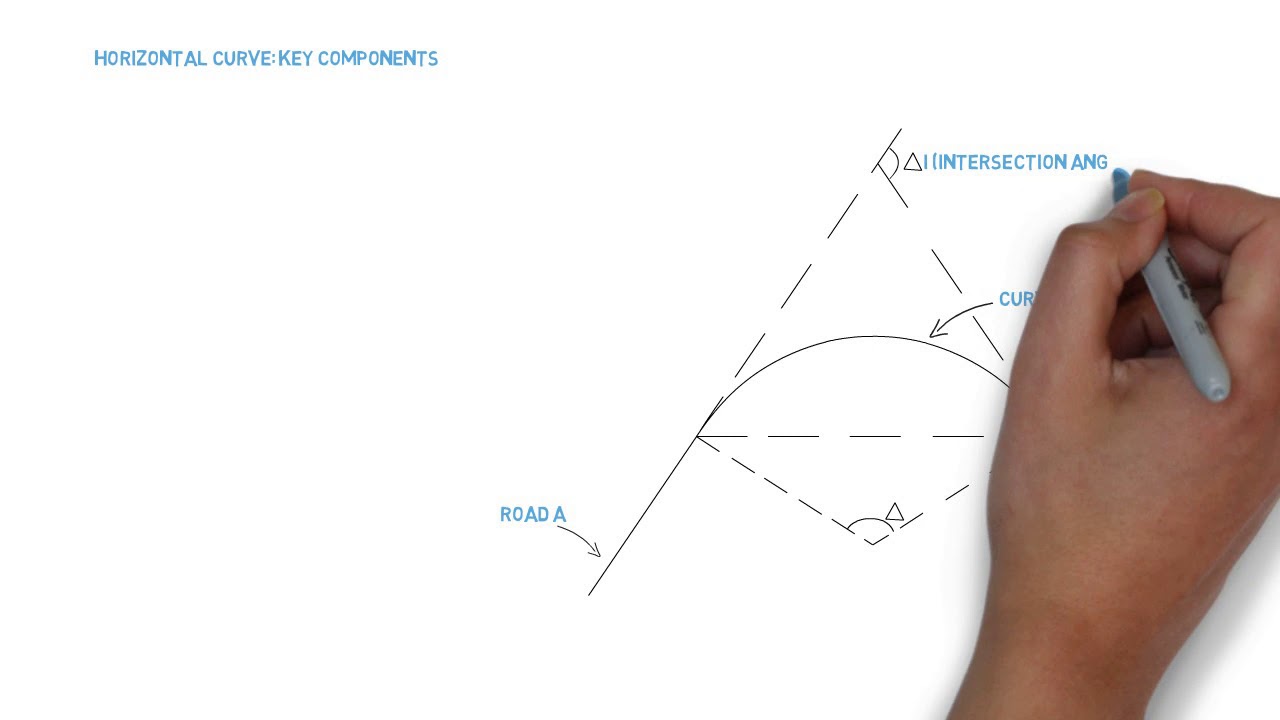

Highway Alignment Pdf This video introduces the basics of horizontal alignment for flow roads from topic 2: highway horizontal alignment. we learn how we can choose the best curva. The document outlines highway geometric design focusing on the design of horizontal alignment, emphasizing safe vehicle movement by avoiding sharp curves and ensuring proper design speed.
04 Horizontal Alignment Road Design Pdf The document outlines key factors and considerations for horizontal alignment in highway design, including safety, design speed, and topography. it discusses minimum curvature, transition curves, camber, superelevation, and the need for widening on curves to accommodate vehicle paths. This course focuses on the geometric design of horizontal alignments for modern roads and highways. its contents are intended to serve as guidance and not as an absolute standard or rule. Horizontal alignment refers to the layout of a roadway in a horizontal plane, determining the direction and curvature of the road as viewed from above. it consists of straight sections (tangents) and curved sections that provide smooth transitions for vehicles. By combining horizontal, vertical, and cross sectional elements, engineers create highways that are smooth, durable, and sustainable. modern technologies and irc standards have further improved precision, making highway alignment a critical foundation of safe and effective transportation networks.
Geometric Design Of Highways 2 Horizontal Alignment Pdf Angle Horizontal alignment refers to the layout of a roadway in a horizontal plane, determining the direction and curvature of the road as viewed from above. it consists of straight sections (tangents) and curved sections that provide smooth transitions for vehicles. By combining horizontal, vertical, and cross sectional elements, engineers create highways that are smooth, durable, and sustainable. modern technologies and irc standards have further improved precision, making highway alignment a critical foundation of safe and effective transportation networks. The horizontal alignment of a highway is referred to as the plan view, which is roughly equivalent to the perspective of an aerial photo of the highway. the vertical alignment is represented in a profile view, which gives the elevation of all points measured along the length of the highway. Road alignment is the positioning of the centerline of the highway or road. it is also called highway alignment. The horizontal alignment dictates the left or right turning required to remain on the roadway, while the vertical alignment exerts forces on the vehicle as the grade along the roadway changes. Watch this free gate civil engineering lectures on solving superelevation problems and solutions in highway engineering from design of horizontal alignment in transportation engineering, and.
