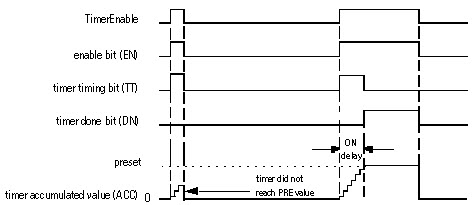

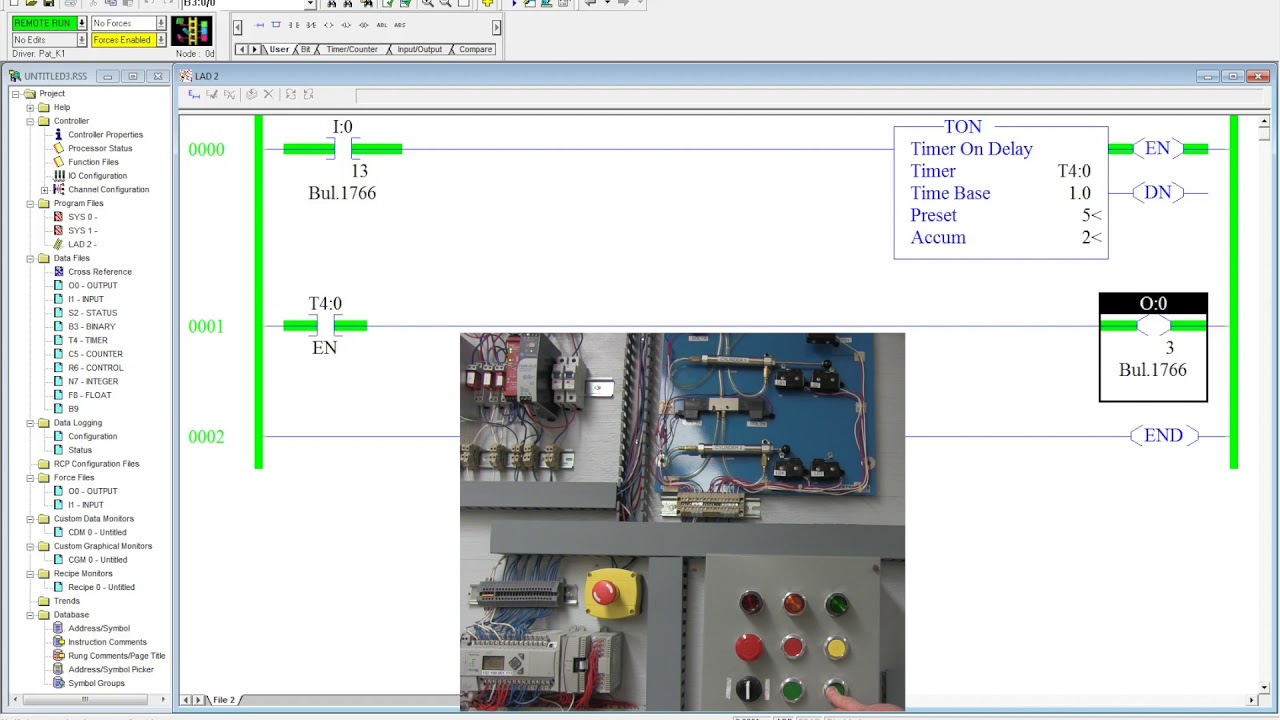

Timer On Delay With Reset Tonr Set the reset input parameter to reset the instruction. if timerenable is set when reset is true, the tonr instruction begins timing again when reset is false. how a timer runs. a timer runs by subtracting the time of its last scan from the current time: acc = acc (current time last time scanned). Self resetting timers are useful to trigger actions that need to occur periodically. typically, self resetting timers are created by placing a normally closed contact which references the timer bit in front of the timer instruction.

Solved Unlike The Ton Timer The Tonr Timer Requires A N Chegg This article describes the four main types of timers used in tia portal: ton (timer on delay), tof (timer off delay), tp (pulse timer), and tonr (retentive on delay). In studio 5000, three types of timers are available in structured text: timer on delay with reset (tonr), timer off delay with reset (tofr), and retentive timer on with reset (rtor). these timers operate with a base time unit of 1 millisecond, allowing precise control in automation tasks. Timers are essential to every automation project — from simple delays to complex sequence control. master every timer instruction in tia portal with this complete guide. We can use the generate on delay or on delay timer instruction to delay the setting of the q output by the programmed duration pt. the instruction is started when the result of the input in changes from 0 to 1 (positive edge).

Solved Unlike The Ton Timer The Tonr Timer Requires A N Chegg Timers are essential to every automation project — from simple delays to complex sequence control. master every timer instruction in tia portal with this complete guide. We can use the generate on delay or on delay timer instruction to delay the setting of the q output by the programmed duration pt. the instruction is started when the result of the input in changes from 0 to 1 (positive edge). For this problem, we will use iec timers (ton, tof, tp &tonr) in s7 1200 plc with examples. there are a number of different forms of timers that can be found in plcs. 🔧 using tonr timer in tia portal – quick and effective tutorial in this video, i explain how the tonr (retentive on delay) timer works in the tia portal environment in a clear and. If the expired time of the iec timer "ton db" is less than 25s, the "reset timer" instruction is executed and the timer stored in the "ton db" instance data block is reset. Tonr (retentive on delay timer) by the end of this guide, you will understand how each timer works, how to implement them in siemens s7 1200 plc, and how to simulate the logic in tia portal.
