Time Depth Convertion Download Free Pdf Integral Reflection In summary, time depth conversion is a vital step in transforming seismic reflections from abstract time data into actionable geological insights. by bridging the gap between time and depth, this process enables more effective exploration and resource management. Seismic reflection data records the two way travel time (twt) to a reflection event from the surface. depth conversion is the process by which interpreted seismic horizons (and time domain seismic itself) are converted from the travel time domain to the depth domain.

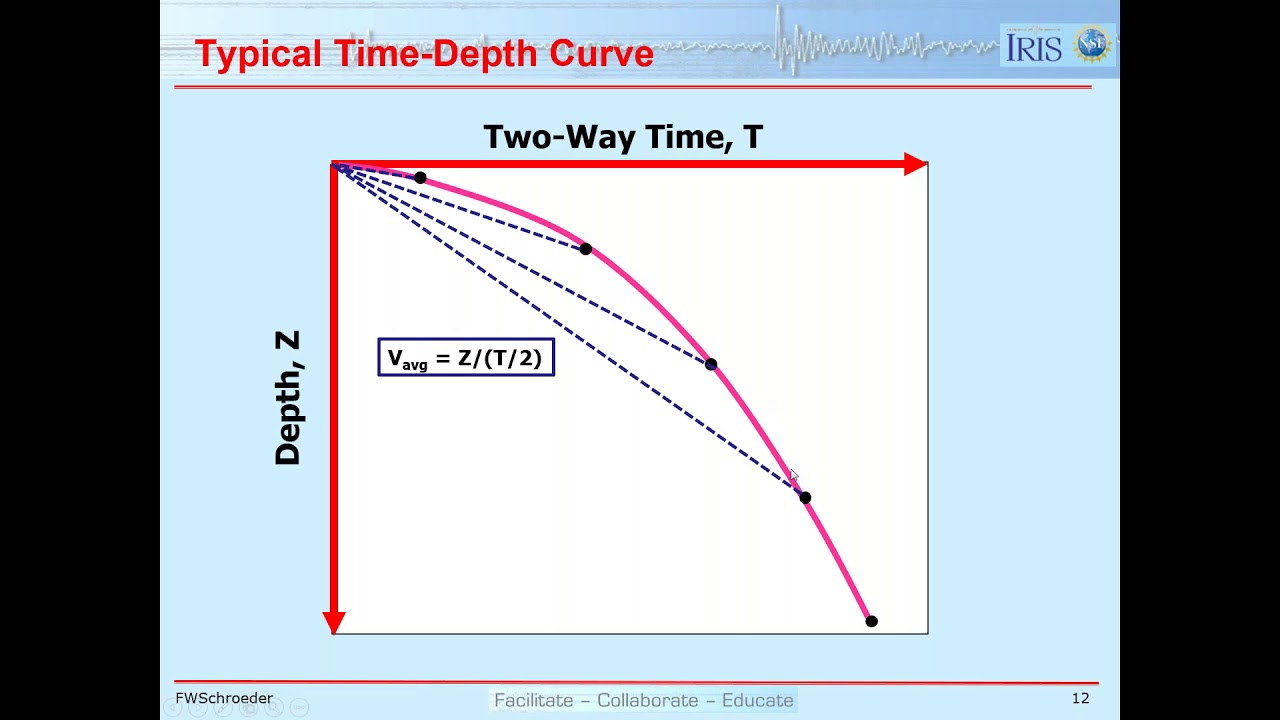

Seismic Time To Depth Conversion Technology Catalogue The time to depth conversion strategy involves the following steps: interpret a set of time horizons from an image volume derived from time migration; these time horizons are usually associated with layer boundaries with velocity contrast or geological formations of interest. A check shot survey or a vsp provide a basic depth–time function that can be used to convert time seismic images into depth seismic images and or to convert depth indexed logs into time indexed logs. Learn how to perform time depth conversion for seismic data in this comprehensive tutorial. In this exercise, the students analyze work on converting horizons on a seismic line from units of two way time (twt) to units of depth in meters. the bulk of the work has been done. they complete a table for 2 out of 10 locations and then sketch the horizons in depth on a graph.
Time To Depth Conversion And Seismic Interval Velocity Estimation Learn how to perform time depth conversion for seismic data in this comprehensive tutorial. In this exercise, the students analyze work on converting horizons on a seismic line from units of two way time (twt) to units of depth in meters. the bulk of the work has been done. they complete a table for 2 out of 10 locations and then sketch the horizons in depth on a graph. Abstract (b) to convert time migrated images to depth. we establish theoretical relations between the time migration velocity and the seismic velocity in d and 3 d using paraxial ray tracing theory. the relation in 2 d implies that the conventional dix velocity is the ratio of the interval seismic velocity an. Seismic time to depth conversions. learn calculation model that transforms the time domain to the depth domain. To create an time depth converted output, follow: processing > create seismic output > time depth conversion time depth conversion is done by applying dix's equation, based on a interval or rms velocity volume. This guide will show you how to approximate a time depth conversion for a particular seismic horizon using two velocity layers; seawater (v1) and sediment (v2).
Cph Seismic Time To Depth Conversions Abstract (b) to convert time migrated images to depth. we establish theoretical relations between the time migration velocity and the seismic velocity in d and 3 d using paraxial ray tracing theory. the relation in 2 d implies that the conventional dix velocity is the ratio of the interval seismic velocity an. Seismic time to depth conversions. learn calculation model that transforms the time domain to the depth domain. To create an time depth converted output, follow: processing > create seismic output > time depth conversion time depth conversion is done by applying dix's equation, based on a interval or rms velocity volume. This guide will show you how to approximate a time depth conversion for a particular seismic horizon using two velocity layers; seawater (v1) and sediment (v2).
Cph Seismic Time To Depth Conversions To create an time depth converted output, follow: processing > create seismic output > time depth conversion time depth conversion is done by applying dix's equation, based on a interval or rms velocity volume. This guide will show you how to approximate a time depth conversion for a particular seismic horizon using two velocity layers; seawater (v1) and sediment (v2).
