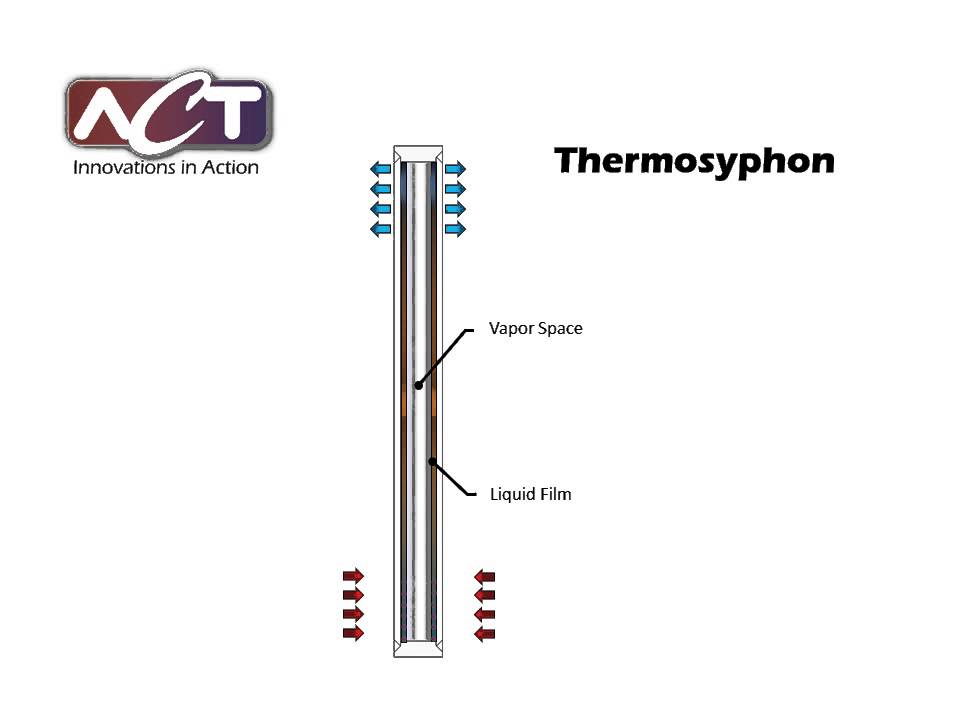

Thermosyphon Operation On Make A Gif A thermosyphon moves heat using fluid circulation driven by gravity—no pump needed. learn how they work and where they’re used in cooling and heating systems. This introduction to thermosiphon systems will explore their operation, features, structure, and integration into modern technology, highlighting their advantages over traditional cooling methods like heat pipes.
Operation Principle Of The Thermosyphon Download Scientific Diagram Typical thermosyphon operation is shown in figure 1. heat supplied to the evaporator vaporizes the working fluid, which travels up to the condenser, vaporizes, and drains back down the sides of the envelope. The thermosyphon is a simple, reliable, and cost effective heat transfer system that has many applications. its principle of operation is based on natural convection, which creates a natural circulation loop. A thermosyphon operates under the principle that hot fluid rises while cooler fluid sinks. when a fluid such as water or refrigerant is heated, it expands and becomes less dense. Thermosyphon is a natural convection process where density difference is noticed by water or heat transfer fluid circulation. in these systems, sunlight passes or hits the circulating fluid passing through the collector, where the heat transfer fluid absorbs the heat and flows into the storage tank.
Operation Principle Of The Thermosyphon Download Scientific Diagram A thermosyphon operates under the principle that hot fluid rises while cooler fluid sinks. when a fluid such as water or refrigerant is heated, it expands and becomes less dense. Thermosyphon is a natural convection process where density difference is noticed by water or heat transfer fluid circulation. in these systems, sunlight passes or hits the circulating fluid passing through the collector, where the heat transfer fluid absorbs the heat and flows into the storage tank. Thermosiphons are passive, two phase thermal management systems that do not require mechanical pumps or other moving parts within the fluid loop. as they rely on gravity to return condensed fluid to the evaporator, thermosiphons do not require any added electrical power to operate, making them more reliable than active cooling liquid loops in stationary applications. with the right design. A variety of numerical analysis and experimental work were done on the thermosyphon by study its characteristic and the influence of different parameters on their performance. Heat pipes and thermosyphons are highly efficient heat transfer devices that use two phase cycles of fluids as the operating principle. typical heat pipes and or ther mosyphons consist of an evacuated tube casing, within which a controlled amount of a working fluid is introduced. Thermosyphons are categorized into single phase and two phase systems. a single phase thermosyphon operates on natural convection, where a fluid circulates as it is heated and cooled without changing its state. as the fluid heats, it becomes less dense and rises, and as it cools, it sinks.
Operation Principle Of The Thermosyphon Download Scientific Diagram Thermosiphons are passive, two phase thermal management systems that do not require mechanical pumps or other moving parts within the fluid loop. as they rely on gravity to return condensed fluid to the evaporator, thermosiphons do not require any added electrical power to operate, making them more reliable than active cooling liquid loops in stationary applications. with the right design. A variety of numerical analysis and experimental work were done on the thermosyphon by study its characteristic and the influence of different parameters on their performance. Heat pipes and thermosyphons are highly efficient heat transfer devices that use two phase cycles of fluids as the operating principle. typical heat pipes and or ther mosyphons consist of an evacuated tube casing, within which a controlled amount of a working fluid is introduced. Thermosyphons are categorized into single phase and two phase systems. a single phase thermosyphon operates on natural convection, where a fluid circulates as it is heated and cooled without changing its state. as the fluid heats, it becomes less dense and rises, and as it cools, it sinks.
Operation Principle Of The Thermosyphon Download Scientific Diagram Heat pipes and thermosyphons are highly efficient heat transfer devices that use two phase cycles of fluids as the operating principle. typical heat pipes and or ther mosyphons consist of an evacuated tube casing, within which a controlled amount of a working fluid is introduced. Thermosyphons are categorized into single phase and two phase systems. a single phase thermosyphon operates on natural convection, where a fluid circulates as it is heated and cooled without changing its state. as the fluid heats, it becomes less dense and rises, and as it cools, it sinks.
